IkaLogic SP209 USB Logik-Analysator mit 9 Kanälen Industrial

IkaLogic SP209 USB Logik-Analysator mit 9 Kanälen Industrial

Artno.: 107021-002
GTIN: 7111605167883
Manufacturers: IkaLogic

Logic analyszer and protocol decoder, USB 2.0 interface, 9 channels, up to 200 MS/s, 2 Gbit memory depth, trigger in/out, industrial version with screw terminals, CAN, LIN, RS232, and RS485 buses

Variant: 498 €Standard (SP209)

617 €Industrial (SP209i)

617,00 €

incl. 19% VAT

(518,49 € excl. VAT)

On stock (short supply)
Delivery time: 1 - 3 business days (DE - int. shipments may differ)

The SP209 series logic analyzers and protocol decoders provide detailed analysis of logic signals and protocols with a timing resolution of 200MHz (5ns). They operate with 9 channels, allowing the capture of 8-bit parallel data along with a clock or strobe signal.

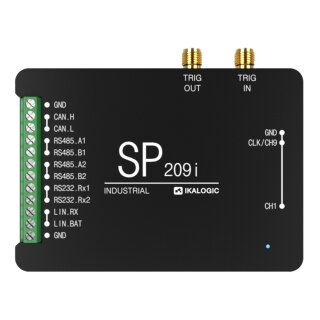

The SP Series includes two devices: SP209 and SP209i. Both devices offer 9 logic inputs. However, the SP209i also integrates industrial receivers for CAN, LIN, RS232, and RS485 buses.

Common Uses

The SP series logic analyzers are ideal for demanding applications requiring the capture of logic signals with maximum time resolution on all 9 channels. They are well-suited for:

Embedded systems debugging
Research and education
Serial protocol analysis, such as I2C, SPI, UART, and 1-Wire (not an exhaustive list)
Industrial bus analysis, including RS232, RS485, CAN, and LIN
ADC diagnostics

Model Overview

Extended Specifications

Operating conditions
Temperature		10°C to 40°C
Relative humidity		<80% non condensing
Altitude		<200 m

Timing and measurements
Sampling rate (MAX.)		200 MSPS
External clock Max. rate (State mode)		50 MHz
Logic Inputs digital bandwidth		50 MHz
Embedded memory		2 Gb (DDR-3 sampling memory is used to buffer samples before streaming to host computer)
Trigger output		Yes, via SMA connector
External trigger input		Yes, via SMA connector
Logic inputs
Number of channels		9
Input impedance		200 KΩ \|\| 8 pF
Threshold circuits		3
Adjustable logic level(for each threshold)		1.8, 2.5, 3.3, 5V
Absolute max voltage on digital inputs(Continuous or Transient)		≤ 25 V
Power requirements
Input power connector		Micro USB female
Input current		500 mA
Input voltage		5 V ≤ 0.25 V
Communication interface		USB 2.0 High Speed

Shipping weight:	0,50 kg
