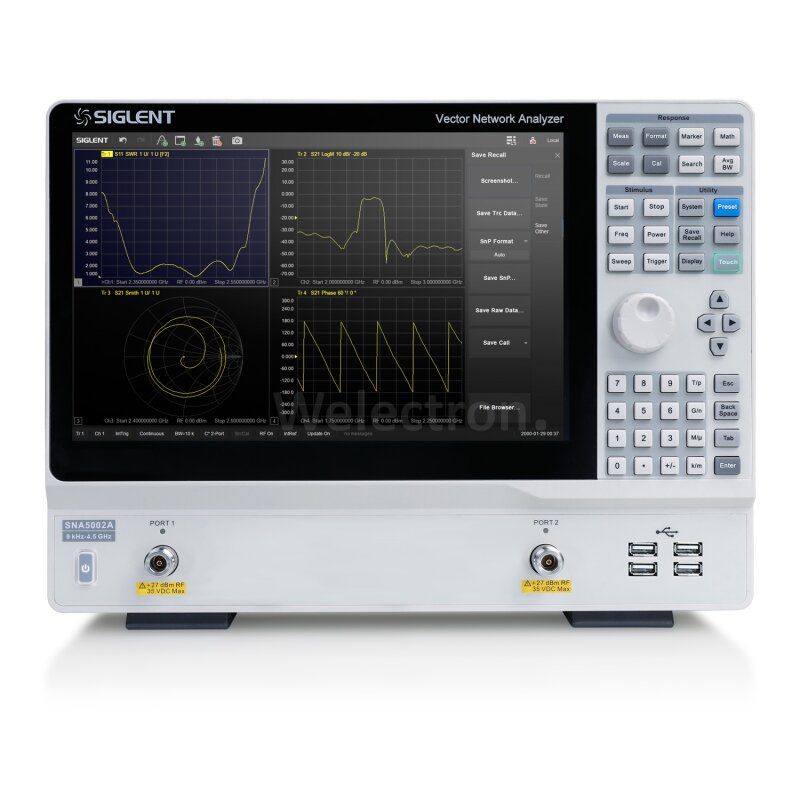

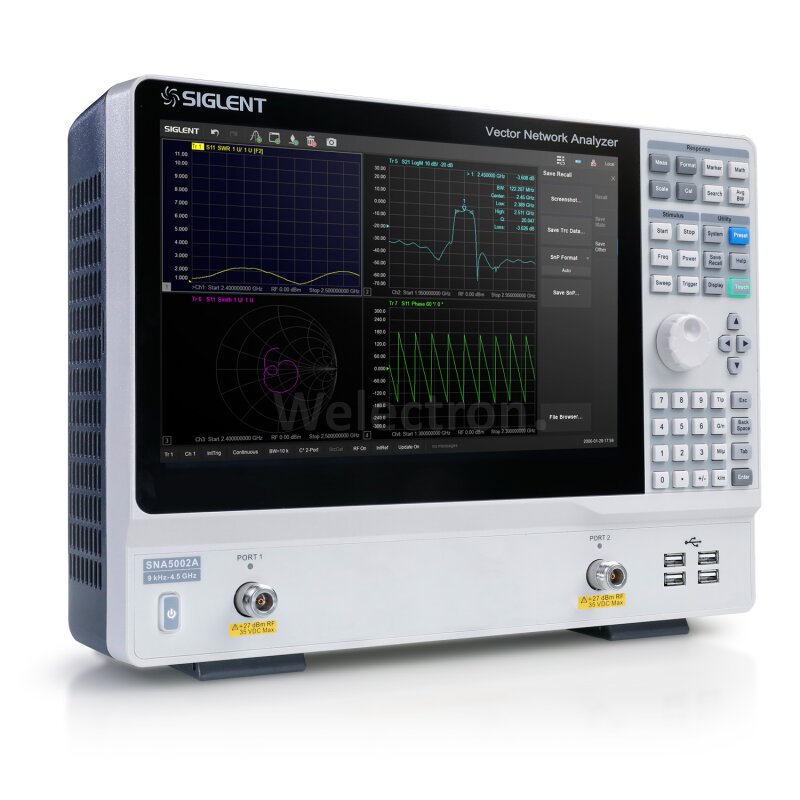

Siglent SNA5002A Vector Network Analyzer
Artno.: SL6-850020
Vector network analyzer, 2 Ports, 9 kHz .. 4.5 GHz Frequency Range, Touch Screen

7,854.00 € incl. 19% VAT
6,600.00 € excl. VAT

Shipping time: 31 - 33 business days


The SIGLENT SNA5000A series of vector network analyzers, covering a frequency range from 9 kHz to 26.5 GHz, are capable of conducting 2/4-port scattering-parameter, differential-parameter, and time-domain parameter measurements.

These analyzers are particularly adept at assessing the quality factor (Q-factor), bandwidth, and insertion loss of filters. They offer features such as impedance conversion, moving the measurement plane, limit testing, ripple testing, fixture simulation, and adjustments for adapter removal or insertion.

The SNA5000A series includes five sweep types: Linear-Frequency, Log-Frequency, Power-Sweep, CW-Time, and Segment-Sweep modes. They also support various scattering-parameter corrections including SOLT, SOLR, TRL, Response, and Enhanced Response, enhancing their flexibility for use in both research and development and manufacturing settings.

SNA5002A SNA5012A SNA5004A SNA5014A SNA5022A SNA5032A
Frequency Range 9 kHz .. 4.5 GHz 9 kHz .. 8.5 GHz 9 kHz .. 4.5 GHz 9 kHz .. 8.5 GHz 100 kHz .. 13.5 GHz 100 kHz .. 26.5 GHz
Ports 2 4 2
Frequency Resolution 1 Hz
Level resolution 0.05 V
Range of IFBW 10 Hz .. 3 MHz
Setting range of output level -55 dBm .. +10 dBm
Dynamic range 125 dBm
SNA5002A SNA5012A SNA5004A SNA5014A SNA5022A SNA5032A
Types of calibration Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration
Types of calibration Scattering-parameter measurement differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion,enhanced time-domain parameter analysis(TDR)
Bias-Tees Support
Interfaces LAN, USB Device, USB Host(USB-GPIB)
Remote control SCPI/Labview/IVI based on USB-TMC/VXI11/Socket/Telnet/WebServer
Display 12.1-inch touch screen
Video output HDMI

Package Contents

  • Device
  • Power Cord
  • USB Cable
  • Calibration Certificate
  • Wireless mouse
  • Protective Cover


Multi-window display
Multi-format display
Display and compare memory and current data
Display data hold
Impedance conversion
Equation Editor
Port Extension
Embedding and De-Embedding
Time-Domain analysis
Enhanced Time-Domain analysis(TDR)
Spectrum analysis
Scalar mixer measuremen
Pulse Modulation
Material Measurement
Switch matrix measurement
