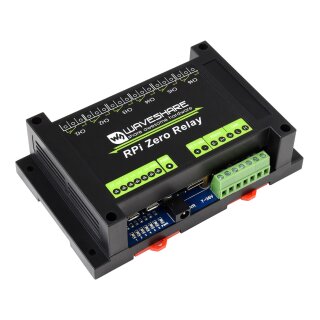

Waveshare 20863 RPi Zero Relay (EU)
Description
Industrial 6-Channel Relay Module
Designed for Raspberry Pi Zero WH
RS485/CAN bus, power supply isolation & photocoupler isolation
Features at a glance
- RS485 half-duplex communication: using SP3485, UART control, auto RX/TX switch
- CAN half-duplex communication: using MCP2515 + SN65HVD230 solution, SPI control
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuses and protection diodes, ensuring current/voltage stable output, preventing over current/voltage, better shock-resistance performance
- High quality relay, contact rating: =10A 250V AC or =10A 30V DC
- ABS protection enclosure with rail-mount support, easy to install, safe to use
- Comes with development resources and manual (wiringPi and python examples)
Specifications
| Operating voltage | 7V~36V (industrial input voltage compatible) | Relay channel | 6 ch |
|---|---|---|---|
| Communication protocol | RS485, CAN | Contact form | 1NO 1NC |
Tailored for Raspberry Pi Zero series
suitable for Raspberry Pi Zero with pre-soldered pinheader
Raspberry Pi Zero WH is NOT included.
Enclosure design
ABS protection enclosure with rail-mount support, easy to install, safe to use
What's On Board
- MCP2515 CAN controller
- SI8642ED-B-IS digital isolator
- SN65HVD230 CAN transceiver
- SP3485EN RS485 transceiver
- LM2596 voltage regulator providing stable 5V voltage
- Photocoupler isolation prevent interference from external high-voltage circuit connected to the relay
- 6-channel quality relays contact rating per channel: =10A 250V AC or =10A 30V DC
- Power supply isolation provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Resettable fuses
- TVS diodes
- Relay and power indicators
- 40PIN GPIO header suitable for Raspberry Pi Zero with pre-soldered pinheader
- Relay screw terminals for connecting with user devices
- Power supply screw terminals
- RS485 bus interface
- CAN bus interface
- RS485 120O terminal resistor switch
- CAN 120O terminal resistor switch
- Relay control pins
- External power supply jack
- Thickened tracks allows large current devices
Pinout definition
Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Contents
- ABS protection enclosure (top and bottom) x1
- RPi Zero Relay x1
- Screwdriver x1
- Screws pack x1
