AOYUE 852 SMD Hot Air Soldering Station
Description
Details

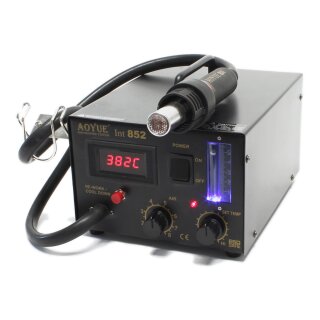

This popular hot air soldering station is very interesting and ideal for soldering SMD parts. The temperature and airflow are adjustable with rotary knobs and can be read from the display. The airflow is displayed using a metal ball in a tube. Furthermore, the station has a holder for the soldering end and a handle that makes it easy to move the device. An IC popper is included so that you can start working with this device immediately.
A wide variety of nozzles is available for this hot air station. We can supply nozzles for e.g. SOP, PLCC and QFP in all sizes. All options can be found via the blue button on this page. 4 nozzles are supplied as standard.
Specifications
| Power | 500 W |
| Temperature range | 100 °C - 480 °C |
| Airflow (max) | 23 l/min. |
| Heating element | Ceramic |
| ESD safe | yes |
| Air hose length | approx. 86cm |
| Dimensions | 187 × 137 × 240 mm |
Accessories
- 852 hot air station,
- 4 Nozzles: round 2.5 mm, 6 mm, 7 mm and 9 mm
- Blower holder
- IC popper
| Shipping weight: | 4.14 Kg |
