Description
Features:
Support most OmniVision COMS Camera module
OV7670/OV7725 0.3mega pixel
OV9650 1.3mega pixel
OV2640 2.0mega pixel
OV3640 3.0mega pixel
OV5642 5.0mega pixel
Single power supply range:2.8V~3.3V
8 bit RGB/YUV/Raw camera data bus
Pin pitch:2.54mm
Can be used in MCUs, ARMs, CPLD, FPGA, DSP paltform
Signal Definition:
VCC : Power Supply
GND : Power Ground
SCL : I2C Clock
SDA : I2C Data
VSYNC : Vertical Sync
HREF : Horizon Reference
PCLK : Pixel Clock
XCLK : Master Clock
D0~D7 : Data Bus
Y0~Y1 : LSB in YUV 10 bit mode
Flash : Optional Flash signal
PWDN : Power down input ard
Package Including:

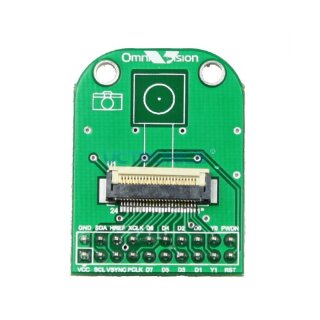

1 x CMOS Camera Adapter Board for Omnivision Image Sensor
