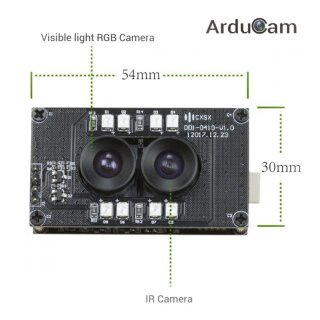

Arducam B0198 Stereo USB Camera

The B0198 is a new member of the Arducam's USB camera family to meet the requirement of application in face recognition and biological detection. It's a UVC compliant synchronized stereo module. It has two 2MP USB 2.0 camera modules (RGB and IR dual output), and transfers data from one USB cable.

• Sensor Type: 1/2.7" OV2710
• Resolution: 2MP 1920 x 1080
• Data Format: MJPG/YUY2
• Frame Rates: MJPG 30fps@1080p; YUY2 30fps@640x 480
• Field of View (FOV): 95°
• Lens Mount: M12
• USB Connector: S4B-ZR(LF)(SN)

NOTE: If the two lenses are the same, the diameter of a single lens cannot exceed 14mm, otherwise it is not compatible.

Functionality and Compatibility

• Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
• System Compatibility: Windows, Linux, Mac and Android with UV
• Serial Number: It supports modifying serial number.

Power

• Power Supply: USB Powered 5V
• Working Current: MAX 500mA

Physical

• Operating Temp.: -4°F~167°F (-20°C~+75°C).
• Dimension: 54mmx30mm
• Cable Length: 3.3ft (1M)

Additional Resources

• Manual - Arducam Stereo USB Camera
• Documentation - Arducam UVC Camera Module
• Datasheet
• How to modify the serial number

• Video Demo
