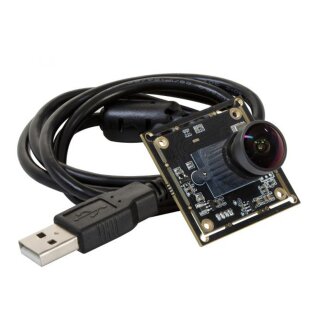

Arducam B0202 1080P Low Light Wide Angle USB Camera Module with Microphone for Computer
Description
The B0202 is a new member of the Arducam's USB camera family. It's a 2MP, UVC compliant, ultra wide angle, low light, based on the 1/2.8" Sony IMX291 image sensor high speed USB 2.0 camera.
Specifications
- Camera
- Sensor: 1/2.8" IMX291
- Resolution: 2MP 1945H x 1109V
- Data Format: MJPG/YUY2/H.264
- Frame Rate: MJPG: 30fps@640x320, 30fps@640x360, 30fps@800x600, 30fps@848x480, 30fps@960x720, 30fps@1024x576, 30fps@1280x720, 30fps@1920x1080 YUY2: 30fps@640x320, 30fps@640x360, 30fps@800x600, 30fps@848x480, 30fps@960x720, 30fps@1024x576, 30fps@1280x720, 30fps@1920x1080
- Dynamic Range: 80dB
- USB Connector: B4B-ZR(LF)(SN)
- Lens
- Field of View (FOV): D= 160°
- Lens Mount: M12
- Focusing Range: 6.56ft (2M) to infinity
- IR Sensitivity: Integral IR filter, visible light only
- Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: Single microphone (optional dual channel)
- System Compatibility: Windows, Linux, and Mac with UVC (Android compatibility: contact us for support.)
- Power
- Power Supply: USB powered 5V
- Working Current: MAX 300mA
- Physical
- Operating Temp.: -4°F~158°F (-20°C~+70°C).
- Dimension: 38mmx38mm (Mount compatible with 34x34mm, 28x28mm)
- Cable Length: 3.3ft (1M)
Documentation
| Shipping weight: | 0.07 Kg |
