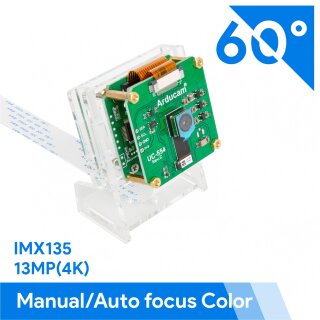

Arducam B0213 13MP IMX135 Camera for Jetson Nano
Artno.: AC2-202130

65.60 € incl. 19% VAT
55.13 € excl. VAT
Out of stock

Description

Item Description

As part of Project Jetvariety, which allows any camera modules to be connected to the high-speed CSI-2 connector on the Jetson Nano. Arducam just released this high-quality camera module for Jetson Nano. It is based on 1/3 inch Sony IMX135 image sensor which adopts Exmor-R- technology to achieve high speed image capturing with high sensitivity and low noise performance. "RGBW coding" color filter is employed and RGB primary color mosaic is reproduced on chip. High sensitivity, low dark current and smear-free features are achieved. It equips an electronic shutter with variable integration time. This MIPI camera module can be used on other ARM, FPGA, DSP, or Nvidia TX1/TX2 hardware platform as well.

Features

  • High Resolution
  • Platform Support: Jetson Nano
  • Programmable motorized focus lens
  • Support RAW8/10 bayer format
  • Support standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
  • Support Single Line Driver Installation Command
  • Support OpenCV Friendly and Provides Source Code Demonstration

Specification

  • Sensor Type: IMX135
  • Pixel Size: 1.12um x 1.12um
  • Optical Size: 1/3”
  • Active Pixels: 4656 H "Á 3496 V
  • Lens Spec: Focal length: 3.85mm, F.NO: 2.0±5%, FOV: 60deg
  • Color Filter Array: RGBW Bayer pattern
  • ADC Resolution: 10-bit, on-chip
  • Frame Rate: 24fps@13 Mp full resolution, 60fps@720p, 30fps@1080p
  • Interface Type: 2-Lane/4-Lane MIPI
  • Output Format: RAW8/RAW10 output
  • Board Size: 40x40mm

Applications

  • Cellular phones
  • PDAs
  • Toys
  • Other battery-powered products
  • ARM/FPGA/DSP based platforms

Documentation

Package Including

  • 1pcs Arducam 13MP IMX135 MIPI Camera Module
  • 1pcs Arducam Adapter Board for Jetson Nano
  • 1pcs 150mm 15pin 1.0mm FPC cable
  • 1pcs 73mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
  • Acrylic case for the camera module

Software Links

Arducam Jetson Nano Camera Modules

Video Demo


Shipping weight: 0.05 Kg
