Arducam B0249 High Quality Camera
Artno.: AC2-202490

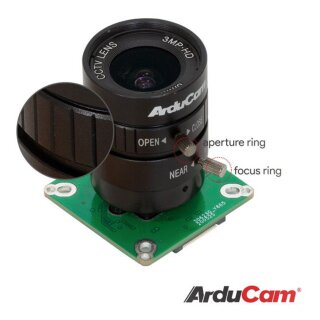

Arducam High Quality Camera, 12.3MP 1/2.3 Inch IMX477 HQ Camera Module with 6mm CS-Mount Lens for Jetson Nano,Xavier NX

90.90 € incl. 19% VAT
76.39 € excl. VAT
On stock

Shipping time: 1 - 3 business days

Description

Arducam just released this High Quality camera module for Jetson Nano/Xavier NX/Raspberry Pi Compute Module CM4, CM3, CM3+, an IMX477 camera board with three hole pitches, a 6mm CS lens.The customers can use this camera module on Jetson Nano/Xavier NX/Raspberry Pi Compute Module CM4, CM3, CM3+ natively with hardware ISP features.

★ KERNEL CAMERA DRIVER USED

This camera relies on kernel drivers to work – one kernel version, one camera driver.

  1. Versions earlier than JetPack 4.3 (L4T 32.3.1) are not supported.
  2. Up or downgrading your OS leads to a kernel bump, and you'll need to re-install a matching driver.
  3. Future JetPack/kernel updates require future drivers. When that happens, please allow us some time to process. And if you don't see it released in time, kindly remind us.

(!) NOTE ON THE SUPPORTED PLATFORM

  1. This camera is released for official Jetson Nano/Xavier NX boards by default, and it does not support other third-party boards.
  2. This camera can not be used on AGX Xavier at present.

Features:

  • For the new version(R32 4.4), please refer to the following link: link:https://github.com/ArduCAM/MIPI_Camera/releases/tag/v0.0.2
  • Get Clearer Images: This camera adopts 1/2.3" 12.3 Megapixel IMX477 sensor for sharp image, max. still resolution 4056(H) x 3040(V).
  • Less Hassle: No more wasting time looking for the CS lens and camera case. A 1/2.3" 6mm focal length CS lens is included.
  • More Lanes: The Arducam high-quality camera module has a 4-lane MIPI CSI-2 interface to make it possible to get more data through.
  • Support More Platforms: It supports all Raspberry Pi camera models. Pi 4, Pi 3/3B+/3A+, CM3/3+, Pi Zero, and more. For Nvidia Jetson Nano and Xavier NX, you can search for B0249 / B0250 to get the Jetson camera bundle. For PC /laptop, you could purchase the HQ UVC camera module B0280 (with 6mm CS Mount Lens) or B0288 (with Varifocal C Mount Lens) directly.

Ordering in bulk? Or have questions about this camera? Talk to us!

Specifications

  • Camera

- Sensor: IMX477

- Optical Format: 1/2.3" (diagonal 7.857mm)

- Resolution: 4056(H) x 3040(V) 12.3MP

- Pixel Size: 1.55um x 1.55um

- IR Sensitivity: Visible light

- Interface: 4-lane MIPI CSI-2

- Default Lens Mount: CS-Mount

- Frame Rate: 4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps. Due to Jetson Xavier NX/Nano hardware only supports 4K@30fps h.264/h.265 encoding, you cannot use it for 4K@60fps.

  • Lens

- Format: 1/2.3 inch

- Focal Length: 6mm

- Aperture (F): Max. F1.2

- Field of View (FOV): 65° (H)

- Mount: CS-Mount

- Back Focal Length: 7.53mm

- MOD: 0.2m

- Dimension: F30×31mm

- Weight: 53g

  • Camera board

- Board Size: 38mm×38mm

- Hole Pitch: Compatible with 29mm, 30mm, 34mm

Package Includes:

  • 1 pcs 12.3MP IMX477 color camera module

  • 1 pcs 6mm focal length CS-mount camera lens

  • 1 pcs 300mm/12inch 15pin to 22pin camera cable

  • 1 pcs 80mm/3.15inch 22pin camera cable

Documentation:
