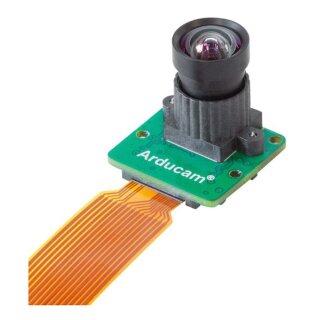

Arducam B0251 MINI High Quality Camera with M12 mount lens

Arducam B0251 MINI High Quality Camera with M12 mount lens

Artno.: AC2-202510
Manufacturers: Arducam

Arducam MINI High Quality Camera with M12 mount lens, 12.3MP 1/2.3 Inch IMX477 HQ Camera Module for Jetson Nano, Xavier NX

74,90 €

incl. 19% VAT

(62,94 € excl. VAT)

On stock (short supply)
Delivery time: 1 - 3 business days (DE - int. shipments may differ)

Description
Product Reviews

To make High Quality camera module work on applications with size and weight limits, Arducam just released this small-size camera module for Jetson Nano/Xavier NX. It is fully compatible with Raspberry Pi V2 module size, a 24mm x 25mm IMX477 camera board, a low distortion M12 mount lens. Customers can use this camera module on Jetson Nano/Xavier NX natively with hardware ISP features.

(!) KERNEL CAMERA DRIVER USED

This camera relies on kernel drivers to work – one kernel version, one camera driver.

Versions earlier than JetPack 4.3 (L4T 32.3.1) are not supported.
Up or downgrading your OS leads to a kernel bump, and you'll need to re-install a matching driver.
Future JetPack/kernel updates require future drivers. When that happens, please allow us some time to process. And if you don't see it released in time, kindly remind us.

(!) NOTE ON THE IMX477 MIPI LANES

Our IMX477 camera module support 4-lane in hardware, but the 4-lane camera driver requires extra customization. Here is why:

Standard Raspberry Pi and Jetson Nano/Xavier NX can't physically support a 4-lane connection (both of them only have 2-lane CSI connectors). Only the Raspberry Pi Compute Module and some 3rd party Jetson Carrier Boards come with 4-lane hardware support. Therefore, it's not a general need.
Extra works, specifically camera drivers, are required for a 4-lane connection other than the 4-lane physical connector. And the drivers are limited by the performance of the platform itself. For example, 4-lane can't unlock 4k video on Raspberry Pi because the VideoCore does not currently support it. Jetson Nano is also to some extent limited because of the encoding capabilities. You need to make sure you really need it.

(!) NOTE ON THE SUPPORTED PLATFORM

This camera is released for official Jetson Nano/Xavier NX boards by default, and it does not support other third-party boards.

Camera
– Sensor: IMX477
– Optical Format: 1/2.3" (diagonal 7.857mm)
– Resolution: 4056(H) x 3040(V) 12.3MP
– Pixel Size: 1.55um x 1.55um
– IR Sensitivity: Visible light
– Interface: 2-lane MIPI CSI-2
– Default Lens Mount: M12 Mount
– Frame Rate: 4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps.Due to Jetson Xavier NX/Nano hardware only supports 4K@30fps h.264/h.265 encoding, you cannot use it for 4K@60fps.

Lens
– Format: 1/2.3 inch
– Focal Length: 3.9mm
– Aperture (F): F2.8
– Field of View (FOV): 75° (H)
– Mount: M12 Mount
– Back Focal Length: 4.49mm
– MOD: 0.1m Dimension: F14×18.67mm

– Weight: 5g

- Partnumber: LN053

Camera board
– Board Size: 24mm×25mm

1 pcs 12.3MP IMX477 color camera module
1 pcs 3.9mm focal length M12 mount camera lens
1 pcs 150mm/12inch 15pin to 22pin camera cable

Troubleshooting IMX477 Camera with Nano & NX (Hardware & Driver):

Mini HQ Camera Module & M12 Lens for Nano & NX Tutorial:
