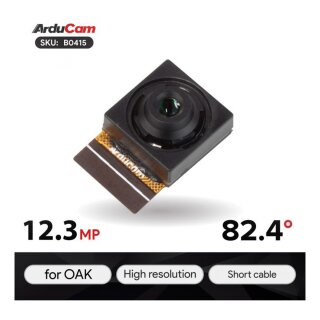

Arducam B0415 12MP IMX378 Camera Module for DepthAI OAK
Artno.: AC2-204150
Arducam 12MP IMX378 Camera Module for DepthAI OAK

29.90 € incl. 19% VAT
25.13 € excl. VAT
Orderable

Shipping time: 61 - 63 business days

Description

Sony's IMX378 is a 12MP (4056x3040) rolling shutter color image sensor. Arducam IMX378 camera module can be used in almost all of the OAK products (OAK-D, OAK-D S2, OAK-D Pro, OAK-D-PoE, OAK-D S2 PoE, etc.) as the color camera.

It is also compatible with OAK FFC boards (OAK-FFC-3P, OAK-FFC 4P), so you can easily evaluate its sensor and optics performance via a camera board and a flex cable.

Features

Specification

Sensor

IMX378

Optical Size

Type 1/2.3''

(Diagonal 7.857 mm)

Pixel Size

1.55µm×1.55µm

Shutter Type

Rolling Shutter

Color Filter Array

Bayer RGB

Max Sensor Resolution

4056 x 3040

Resolution and Frame Rate

4056x3040@30fps, 3840x2160@30fps, 1920x1080@60fps

Supported Platform

OAK D series (OAK-D, OAK-D S2, OAK-D Pro, OAK-D-PoE, OAK-D S2 PoE, etc.) and OAK FFC boards (OAK-FFC-3P, OAK-FFC-4P)

Focus Type

Manual

Focus

50cm~INF

Lens

f/1.8, EFL: 4.74mm, FoV: 82.4° (D)

IR Sensitivity

Built-in 650nm IR-cut filter, sensitive to visible light only

Module Dimensions

10.8mm × 15.82mm

Documentations

User Guide

3D Drawing

Pack List

1 x IMX378 Camera Module for DepthAI OAK
