Arducam LN082 1/1.8'' 4K 4.41mm M12 Lens for OS08A10,OS08A20 and more image sensors with large optical format
Description
In order to meet the new demands of the lens to work with more image sensors with the large optical format and high resolution, Arducam selected and tested a wide range of 4K M12-mount lenses from long focus to wide angle for shooting on your high quality cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.
This 4.41mm F/2.7 M12 lens provides an 80° Horizontal Field of View on 1/2.3" sensors.
Lens Specification
| Model No: | M18441H10 |
| Resolution: | 8MP+ |
| Optical Format: | ~9.0mm Image circle(Up to 1/1.8") |
| Effective Focal Length: | 4.41mm |
| Back Focal Length: | 7.33mm |
| HFOV on 1/1.8" Camera: | 100° |
| HFOV on 1/2.3" Camera: | 80° |
| IR Sensitivity: | With 650nm IR filter, sensitive to visible light |
| Construction: | 7G+IR |
| Aperture: | F2.7 |
| MOD: | 0.3m |
| Mount: | M12 x P0.5 |
| Length Holder Height: | 12~14.5mm |
| Dimension: | ?17 x 22.31mm |
| Weight: | 9.5g |
Package Contents

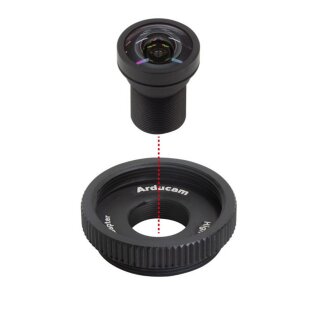

- 1pcs Arducam 1/1.8" 4K M12 Mount 4.41mm Focal Length Camera Lens M18441H10
- 1pcs M12 lens adapter
