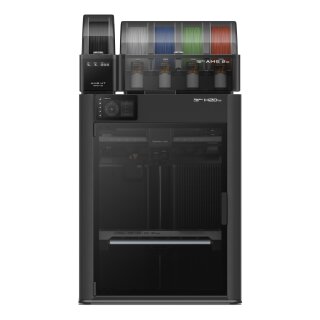

Bambu Lab H2D Pro

Artno.: BL1-601086
GTIN: 6937285504739
Manufacturers: Bambu Lab

350 °C high-temperature dual-nozzle printing, auxiliary extruder cooling fan, ultra-durable tungsten carbide nozzle, 65 °C active chamber heating, 50 µm motion accuracy, Ethernet & physical network kill switch, WPA2-Enterprise Wi-Fi, adaptive air circulation & HEPA filtering

3.699,00 €

incl. 19% VAT

(3.108,40 € excl. VAT)

plus

Out of stock

The Bambu Lab H2D Pro is the enterprise version of the popular H2D 3D printer, designed specifically for companies, research institutions, and educational organizations that require the highest security standards and reliability. The H2D Pro positions itself as a professional solution for demanding production environments.

The H2D Pro comes standard with a non-laser version and does not include the laser module or blade cutting module. However, it supports upgrades for laser modules and blade-cutting modules. If you need to upgrade the H2D Pro to the laser version, you can refer to the H2D method for upgrading.

Differences between H2D and H2D Pro

The H2D Pro version offers several key improvements over the standard H2D:

Nozzle Material: H2D uses hardened steel nozzles, while the H2D Pro features highly durable tungsten carbide for longer lifespan and greater precision.
Network: H2D supports only Wi-Fi. H2D Pro adds Ethernet and a kill switch for maximum flexibility and security.
Security: H2D Pro supports WPA2-Enterprise, whereas H2D provides only basic security features.
Vision Encoder: Optional on H2D, standard on H2D Pro for more precise control and monitoring.
Cooling System: H2D Pro features a more powerful fan for stable temperatures and longer operating cycles.
Support: H2D Pro includes enterprise fleet management, while H2D provides only standard support.

Model Overview

	Bambu Lab H2D Pro
Printing Technology	Fused Deposition Modeling (FDM)
Build Volume	Single Nozzle: 325 x 320 x 325 mm³ \| Dual Nozzle: 300 x 320 x 325 mm³ \| Total: 350 x 320 x 325 mm³
Physical Dimensions	492 x 514 x 626 mm³
Weight	31 kg

	Bambu Lab H2D Pro
Maximum Nozzle Temperature	350°C
Nozzle Material	Tungsten Carbide
Supported Nozzle Diameters	0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Maximum Heatbed Temperature	120°C
Maximum Print Speed	1000 mm/s
Maximum Acceleration	20 000 mm/s²
Maximum Hotend Flow	40 mm³/s
Chamber Heating	Supported up to 65°C
Air Purification	G3 Pre-filter, H12 HEPA Filter, Activated Carbon Filter
Supported Filaments	PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced, PPA-CF/GF, PPS, PPS-CF/GF
Cameras	Live View Camera, Nozzle Camera, Toolhead Camera (all 1920 x 1080)
Sensors	Door Sensor, Filament Run Out Sensor, Filament Tangle Sensor
Power Supply	100-120 VAC / 200-240 VAC, 50/60 Hz
Maximum Power	2200 W@220 V / 1320 W@110 V
Touchscreen	5-inch 720 x 1280
Storage	32 GB EMMC + USBUSB Port
Processor	Quad-Core 1.5 GHz ARM A7 + Neural Processing Unit (2 TOPS)
Motion Controller	Dual-Core Cortex-M4 + Single-Core Cortex-M7
Slicer Software	Bambu Studio (supports third-party slicers)
Network Connectivity	Ethernet (RJ45, 100 Mbps), Wi-Fi (IEEE 802.11 a/b/g/n)
Network Security	Kill Switch for Wi-Fi and Ethernet, 802.1X Access Control
AMS 2 Pro Dimensions	372 x 280 x 226 mm³ (2.5 kg)
AMS 2 Pro Features	RFID Identification, Active Moisture Discharge, Sealed Storage
AMS HT Dimensions	114 x 280 x 245 mm³ (1.21 kg)
AMS HT Features	Maximum Temperature 85°C, Rotating Drying Mode, UL 94 V-0 Flame Retardant
Working Temperature	10°C - 30°C

Extended Specifications

Package Contents

Bambu Lab H2D Pro
Bambu Lab AMS 2 Pro
Bambu Lab AMS HT
Vision Encoder Plate
Emergency Stop Button
Textured PEI Build Plate

Features

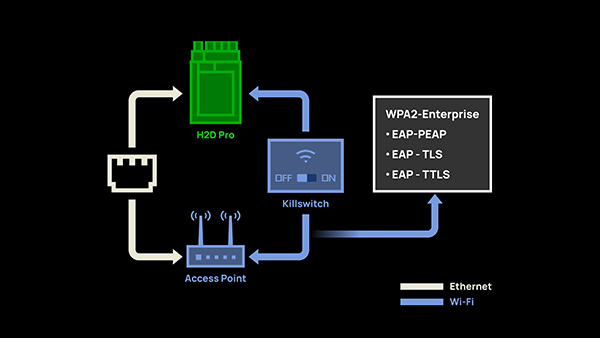

Stable Ethernet Connection, WPA2-Enterprise Authentication Wi-Fi Connection

The H2D Pro offers the option to connect to your devices through its newly added Ethernet port, ensuring robust network communication in complex environments. Ethernet connectivity can also be used in crowded wireless signal environments. Additionally, the H2D Pro provides WPA2-Enterprise Wi-Fi Authentication (EAP-PEAP/EAP-TLS/EAP-TTLS) and individual physical kill switches for Wi-Fi, meeting stringent network security requirements.

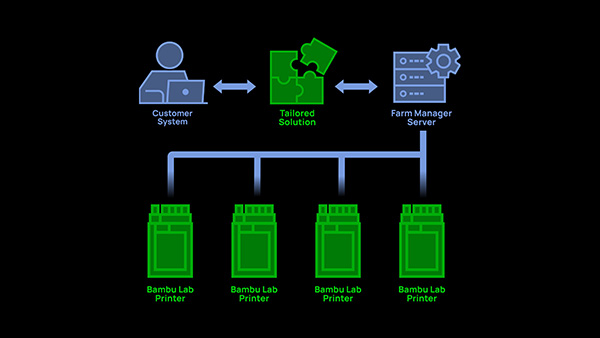

Solution For Printer Management

Bambu Lab provides professional support for enterprises to custom-develop efficient printer fleet management tools, meeting their business integration needs.

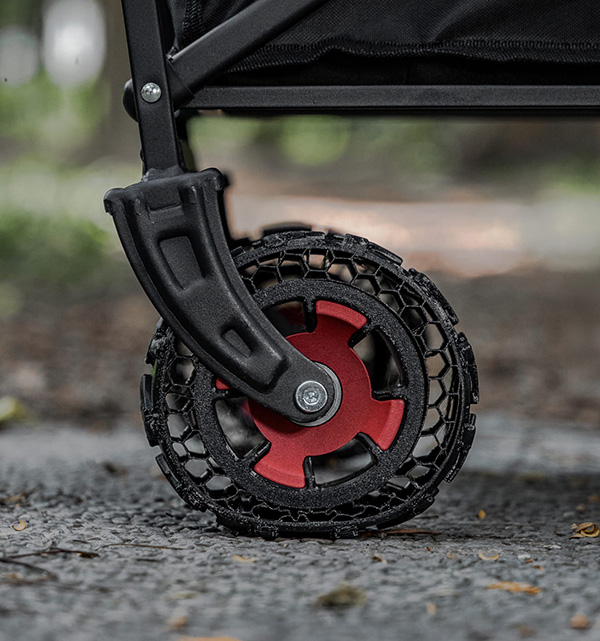

Flexible and rigid, low cost and exotic materials in one print

Combine flexible and rigid materials in a single print to create impressive interlocking structures and innovative designs beyond traditional manufacturing. Pairing high-performance materials with standard ones further reduces costs and boosts material efficiency by using premium materials only where necessary.

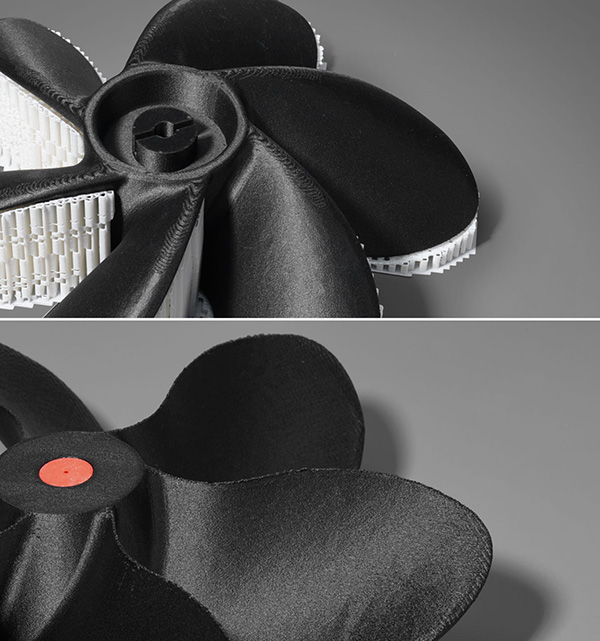

Efficient Support Printing & Perfectly Smooth Interface

Print with support is no longer a headache. With H2D's dual-nozzle setup, one nozzle can be reserved for dedicated support material, allowing secured print and perfect support interface.

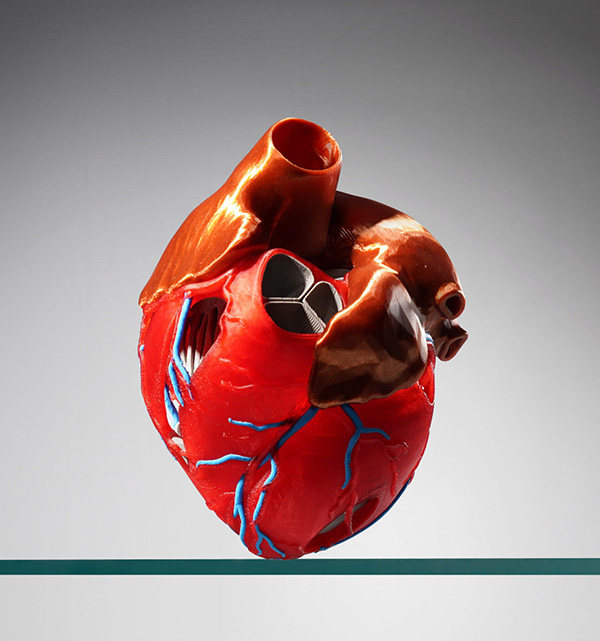

Fast and efficient multi-color printing

Dual-nozzle printing reduces purge cycles in multi-color prints. H2D's smart algorithms optimize filament use, maximizing dual-nozzle efficiency to save time and materials.

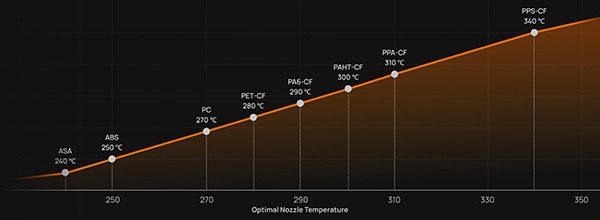

Professional High-Temperature Printing Solution

Push your high-temp engineering filaments to the limit with a 350 °C nozzle. Printing at higher temperatures improves layer bonding for tough materials like PPA-CF, PPS, and PPS-CF—resulting in stronger, more dependable parts.

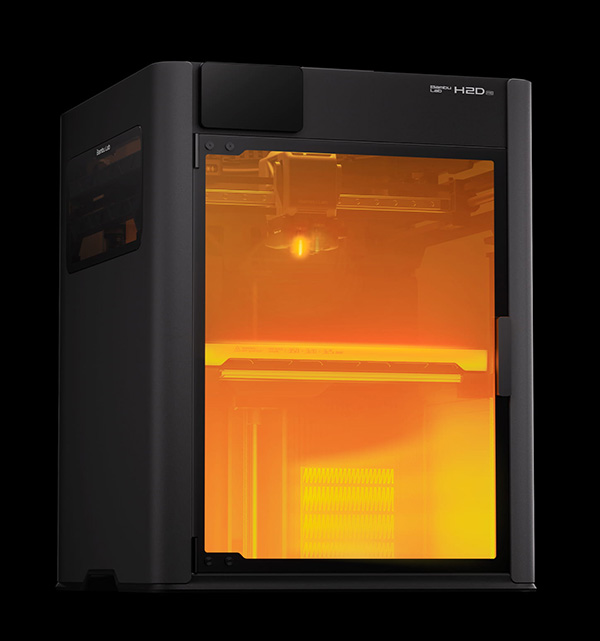

Less failure, stonger prints

Equipped with a 65°C active chamber heater and adaptive air circulation, the H2D Pro intelligently manages chamber temperature for optimal printing. Active flaps control internal/external airflow based on filament type, preventing low-temp clogs, reducing high-temp warping, improving layer bonding, and fully leveraging each material's strengths.

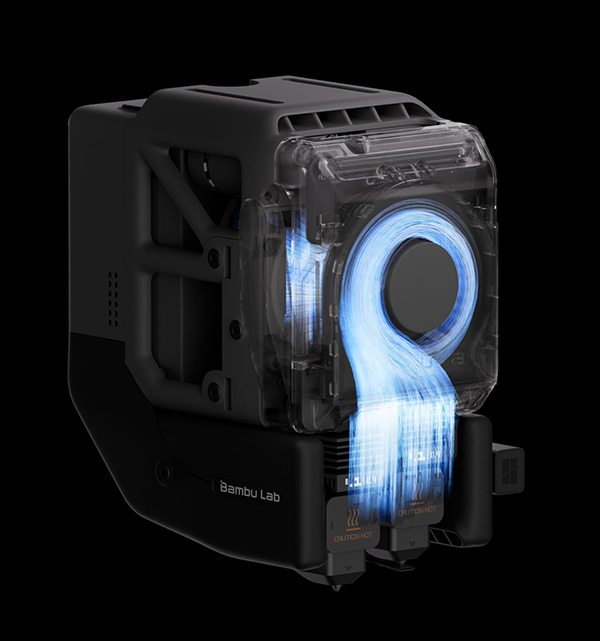

Improving high-temperature reliability

A new high-performance fan integrated into the toolhead front cover effectively cools the extruder and hotend heatsink. This intelligent temperature control mitigates potential clogging and filament jaming in challenging environments, enabling a 3°C increase in the recommended printer operating temperature.

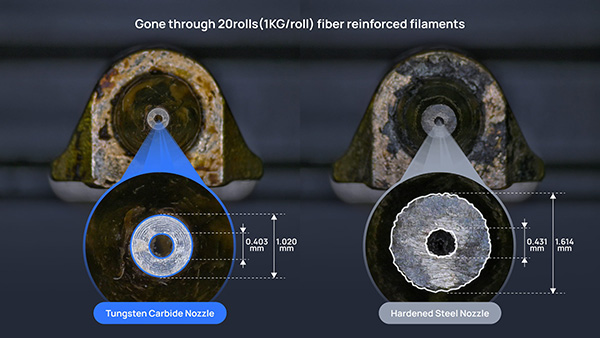

Tungsten Carbide Super Durable Nozzle

With HRA 90 compared to hardened steel's 74, the H2D Pro's tungsten carbide nozzle provides exceptional wear resistance. This results in a 50% increase in lifespan when printing abrasive, high-performance fiber-reinforced filaments.

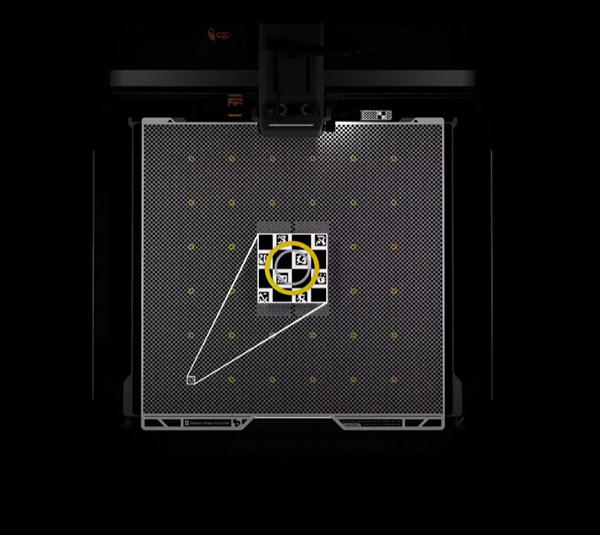

50μm ultra-fine motion accuracy

The H2D Pro comes standard with an ultra-high precision vision encoder plate, using 5μm resolution optical measurement to calibrate toolhead movement. This advanced system ensures consistent and distance-independent 50μm motion accuracy across the entire build area, lay down strong foundation for producing highly accurate prints.

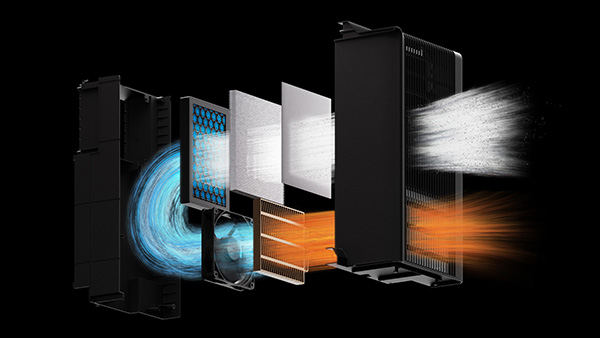

Effectively Filter Particulates And VOCs Generated by 3D Printing

For optimal air filtration, we've integrated a G3 pre-filter, an H12 HEPA filter, and a premium coconut shell activated carbon filter. This enhanced system effectively minimizes excessive odors and particulates, particularly beneficial when printing in less ventilated spaces.

More Features
