Digilent Impedance Analyzer for Analog Discovery
Artno.: DL1-410378
Impedance Analyzer for Analog Discovery. Impedance Analyzer, Capacitance Measurement Range 50 pF .. 500 µF, Inductance Measurement Range 10 µH .. 1000 mH, Excitation Frequency Range 1 Hz .. 15 MHz

29.90 € incl. 19% VAT
25.13 € excl. VAT
Orderable

Shipping time: 11 - 13 business days

Description

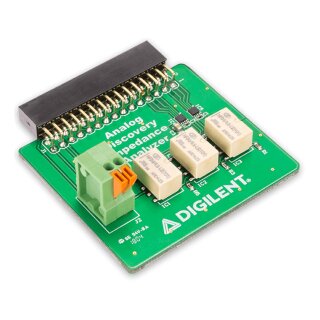

One of the 12 instruments of the Analog Discovery is the Impedance Analyzer instrument, which allows the user to analyze inductive and capacitive elements of a circuit under test.

The Impedance Analyzer for Analog Discovery provides automatically adjusting reference resistors and relays, so that reference circuits don't have to be manually built for each test.

When plugged into the Analog Discovery, and connected to WaveForms the Analog Discovery will automatically select the most appropriate configuration for the attached unknown impedance.

The adapter is loaded with a 2x15 female connector which can be plugged in directly to the Analog Discovery.

Components or leads can be attached via the spring terminal block on the Impedance Analyzer.


Shipping weight: 0.02 Kg
