HeyGears UltraCraft Reflex 2

Artno.: HG1-429940
GTIN: 6971437942994
HAN: 11030301146
Manufacturers: HeyGears

Ultra-precise 3D printing with 161 LED zones, 6,000+ hr UV-resistant Amber Screen, AI calibration, modular design, smart temp control, and auto resin refill

from

2.140,00 €

incl. 19% VAT

(1.798,32 € excl. VAT)

On stock (short supply)
Delivery time: 1 - 3 business days (DE - int. shipments may differ)

Configure + Buy

Designed for a worry-free 3D printing process. Bring your ideas to life with a printer powered by intelligent AI algorithms and automated features to effortlessly achieve commercial-grade results.

Model Overview

	Reflex 2 Pro	Reflex 2	Reflex Turbo	RS Turbo
	Hardware
Screen	10.7 Inch Amber Screen Pro		9.25 Inch Amber Screen	10.3 Inch Amber Screen Pro
Light Source	1032 Light Zones	161 Light Zones	COB Light Source	60 Light Zones
Optical Wavelength	385+ nm			405 nm

	Reflex 2 Pro	Reflex 2	Reflex Turbo	RS Turbo
Frame	Die-cast Unibody Base		Die-cast Base	N/A
Release Film Type	nFEP
Z-axis Module	C5 Grade Accuracy
Build Volume	230 x 144 x 350 mm	230 x 144 x 230 mm	192 x 121 x 220 mm	222 x 122 x 228 mm
	Intelligent Technology
Leveling Compatibility	240 ?m Gap Leveling
Resin Automatic Refill
Scraper	Heating Scraper	Standard Scraper
Resin Heating	Scraper-assisted Heating	Optional Scraper-Assisted Heating (Separate Purchase)	Resin Tank Heating	Resin Tank Heating (Separate Purchase)
Residue Detection	0.15 mm Residue		0.2 mm Residue
Print Monitoring	Force Curve Monitoring			Force Value Monitoring
Release Film Lifespan
	Others
Weight	29,7 kg	25,5 kg	25 kg	20 kg
Size	430 x 445 x 715 mm	430 x 445 x 605 mm	400 x 420 x 572 mm	380 x 360 x 584 mm
Compatible Resin	Kompatibel mit allen Materialien der Reflex-Serie			PARP10, PAS10, PAWW10, PAP10, PAWR10, PAF10, PAWW20, PAU11

Extended Specifications

Features

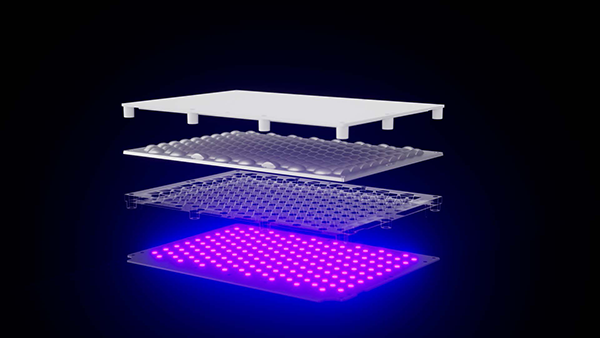

More Accurate Light Control from the Core

Reflex 2 introduces the OptiZone Light Engine with 161 mini-LEDs, each controllable for activation and brightness. With Pulse Width Modulation (PWM), the light engine delivers more uniform light to the screen.

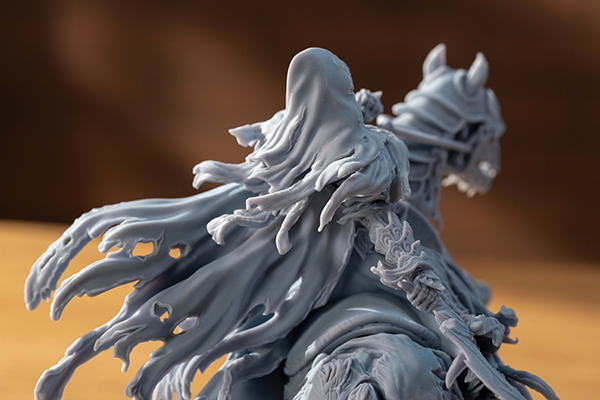

Precise Light Projection for Exceptional Surface Finishes

The OptiZone Light Engine activates only the specific LEDs needed to illuminate the printing area, significantly minimizing light leakage, effectively preventing residue formation, and delivering smoother surface finishes.

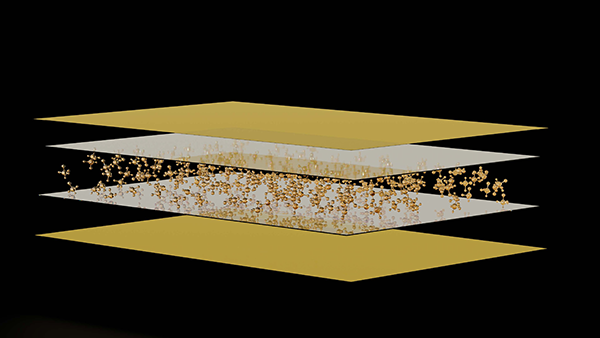

Upgraded UV Resistance for 6,000+ Hours Usage

Featuring a large-molecule liquid crystal layer, the Amber Screen Pro demonstrates exceptional resistance to UV degradation, maintaining good performance even under prolonged high-intensity exposure, ensuring over 6,000 hours of printing* (*Data sourced from HeyGears Lab. The contrast and light transmission of the Amber Screen Pro remain within a 10% deviation after 6000 hours of printing)

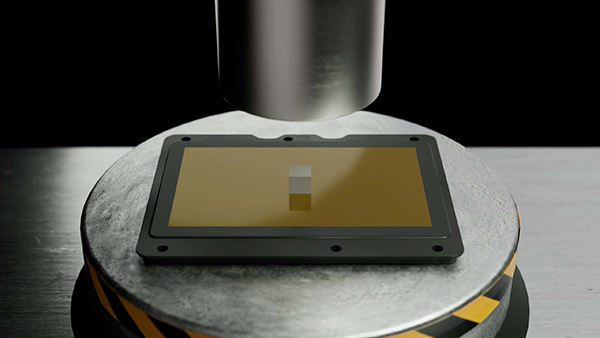

100x More Pressure Resistant

Engineered with structurally reinforced support pillars in the liquid crystal layer, the Amber Screen Pro exhibits excellent pressure resistance—over 10,000 cycles at a 40 kg load causes no damage, effortlessly handling the continuous stress of high-viscosity resins. (*Data sourced from HeyGears Lab. Testing was conducted using a 5x5 mm surface pressure test model)

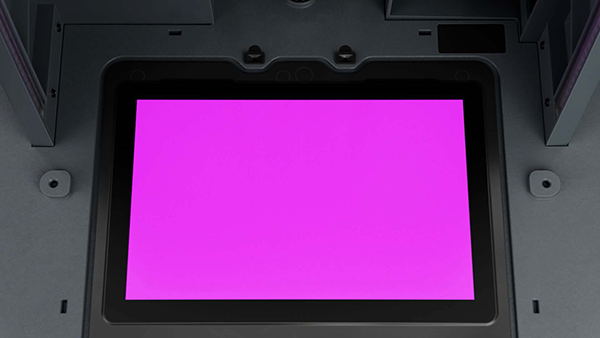

AI-Powered 86,000+ Zone Light Calibration

The upgraded visual calibration algorithm, MASK, uses 86,020 calibration zones to compensate for light intensity variations in each screen zone. This method achieves ?94% light uniformity and print accuracy of ?0.05 mm* (*Data from HeyGears Lab: Indicating the dimensional deviation for a printed test model measuring equal to or less than 20 mm in the XY direction. Test results are within the 95% confidence interval)

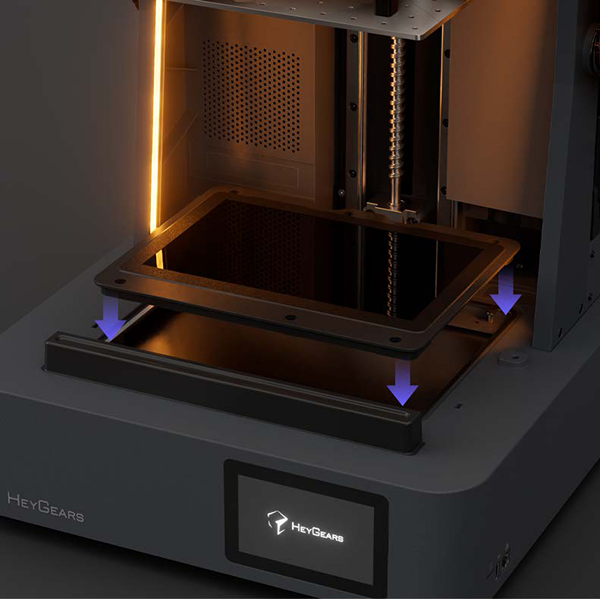

Modular Design for Effortless Replacement

The modular design enables quick and effortless replacements, resulting in significantly greater maintenance efficiency.

Dynamic Motion Algorithm 3.0

Equipped with a high-precision spindle and force sensors, this system offers real-time force feedback at 80 Hz. Dynamic speed adjustments prevent layer misalignment and detachment, minimizing downtime and enhancing overall printing speed.

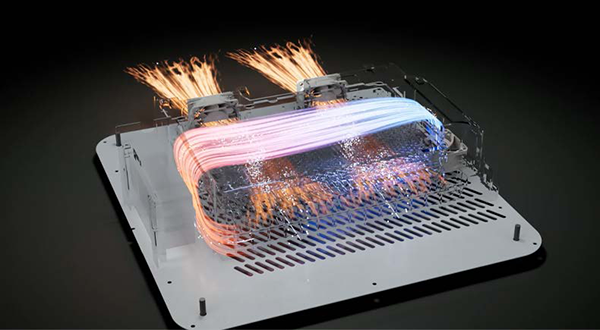

Powerful Thermal Dissipation

The thermal ventilation structure dissipates heat from the light source and screen, maintaining a stable temperature between 31.2 °C and 35 °C. This reduces heat buildup and extends lifespan. (*Data sourced from HeyGears Lab, with UltraPrint-Production PAP10 resin printed at 25 °C.)

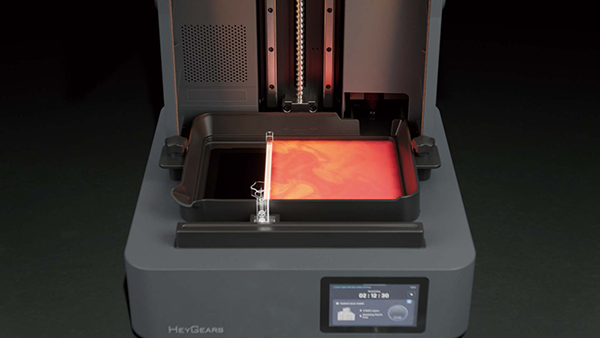

Intellligent Temperature Control*

The in-scraper heater evenly stirs and heats resin from 10 ? to 22 ? in just 6 minutes, reducing time by 68%*, while keeping it at the optimal printing temperature within ±1 ? throughout the entire printing process (*Data sourced from HeyGears Lab, tested using UltraPrint-Production PAP10 resin)
