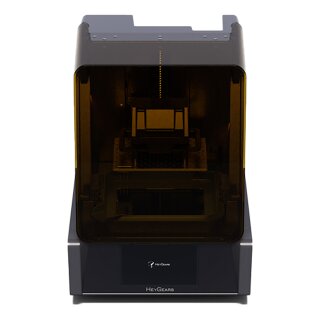

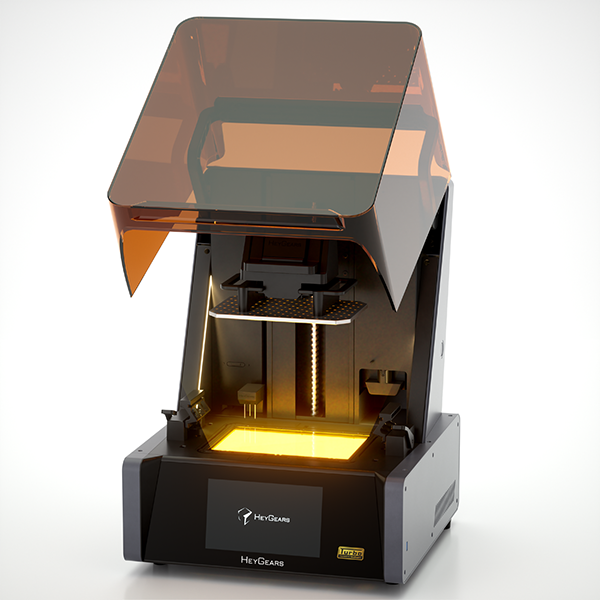

HeyGears UltraCraft Reflex Turbo

Artno.: HG1-429250
GTIN: 6971437942925
HAN: 11030301143
Manufacturers: HeyGears

Result-driven printing strategies, intelligent AI peeling force control, 33 ?m precision, automatic resin detection, heated build plate, 90.6 % detail recovery, 90 % consistency.

from

1.712,00 €

incl. 19% VAT

(1.438,66 € excl. VAT)

On stock (short supply)
Delivery time: 1 - 3 business days (DE - int. shipments may differ)

Configure + Buy

The Reflex Turbo is built to make 3D printing easier and more reliable. Every detail—from brighter, sharper screens to smarter motion and automatic resin handling—is designed to give you consistent results and less hassle. With intelligent sensors, advanced algorithms, and careful control of light and materials, it helps you get the best print quality without constantly adjusting or monitoring the process.

Model Overview

	Reflex 2 Pro	Reflex 2	Reflex Turbo	RS Turbo
	Hardware
Screen	10.7 Inch Amber Screen Pro		9.25 Inch Amber Screen	10.3 Inch Amber Screen Pro
Light Source	1032 Light Zones	161 Light Zones	COB Light Source	60 Light Zones
Optical Wavelength	385+ nm			405 nm

	Reflex 2 Pro	Reflex 2	Reflex Turbo	RS Turbo
Frame	Die-cast Unibody Base		Die-cast Base	N/A
Release Film Type	nFEP
Z-axis Module	C5 Grade Accuracy
Build Volume	230 x 144 x 350 mm	230 x 144 x 230 mm	192 x 121 x 220 mm	222 x 122 x 228 mm
	Intelligent Technology
Leveling Compatibility	240 ?m Gap Leveling
Resin Automatic Refill
Scraper	Heating Scraper	Standard Scraper
Resin Heating	Scraper-assisted Heating	Optional Scraper-Assisted Heating (Separate Purchase)	Resin Tank Heating	Resin Tank Heating (Separate Purchase)
Residue Detection	0.15 mm Residue		0.2 mm Residue
Print Monitoring	Force Curve Monitoring			Force Value Monitoring
Release Film Lifespan
	Others
Weight	29,7 kg	25,5 kg	25 kg	20 kg
Size	430 x 445 x 715 mm	430 x 445 x 605 mm	400 x 420 x 572 mm	380 x 360 x 584 mm
Compatible Resin	Kompatibel mit allen Materialien der Reflex-Serie			PARP10, PAS10, PAWW10, PAP10, PAWR10, PAF10, PAWW20, PAU11

Extended Specifications

Features

22% Increase in Contrast Ratio*

The Amber Screen features dyed polarizer films that allow for better control of light transmittance, resulting in a 22% enhancement in contrast ratio compared to the previous generation.

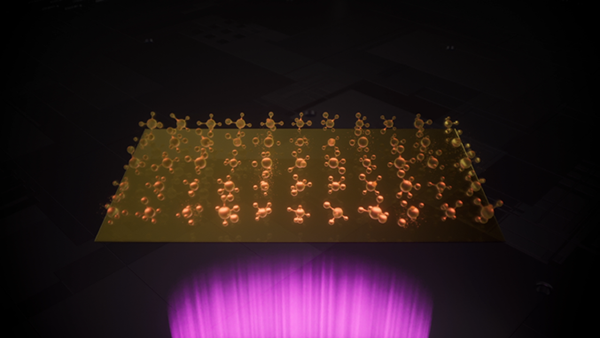

2.5X Longer Screen Lifespan

The dyed polarizer film utilizes dye macromolecules with excellent UV resistance, which reduces contrast decay and enhances light projection reliability, ultimately extending the screen's lifespan

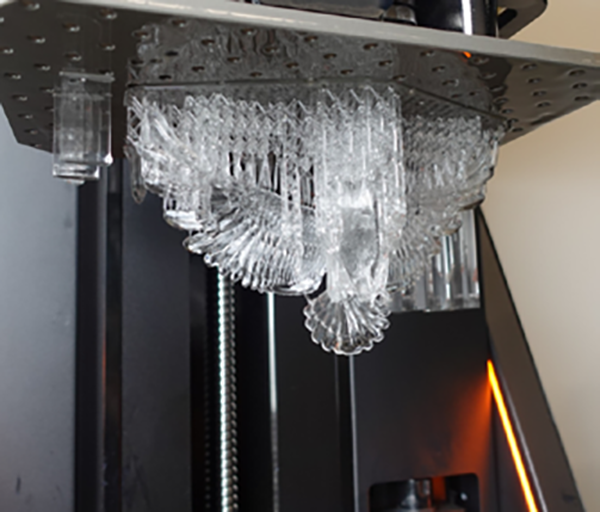

385+ nm UV Light Source

Enables compatibility with high-performance resins such as ABS-like, polycarbonate-like, and rubber-like resins

Reliable C5 Grade Z-axis Module

High repeat positioning accuracy ensures layer positioning errors are no more than 2 ?m* (*Data sourced from HeyGears Lab, 96% of repositioning errors are within 1 ?m, and 99.9% of the errors are no more than 2 ?m)

High Print Consistency Across the Build Platform

The LCD screen is pre-calibrated to ensure light intensity variations are within 3%**, for consistent printing results across the build plate. (**Data sourced from HeyGears Lab)

Long-lasting Printing Consistency During Printer Lifetime

The Reflex Turbo features automatic light intensity compensation by testing and recording light source aging data, for consistent printing results throughout the printer's lifespan.

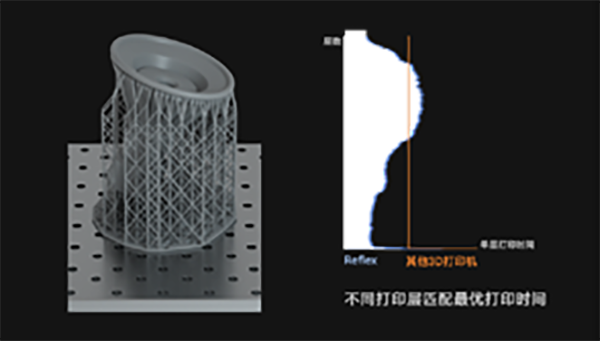

Dynamic Motion Algorithm 3.0

This algorithm evaluates the printing difficulty for each layer based on various factors, including cross-sections, part spacing, and quantity, and selects the appropriate parameter set from 18 adapted motion control options

High-sensitivity Residue Detection

Force sensors with a sensitivity of 0.1 N can detect resin residue as small as 0.2 mm and can auto-stop upon detection or print failure

Floating Screen Auto Leveling

A floating screen system with a deviation of 0.15° eliminates gaps of up to 240 µm for automatic leveling

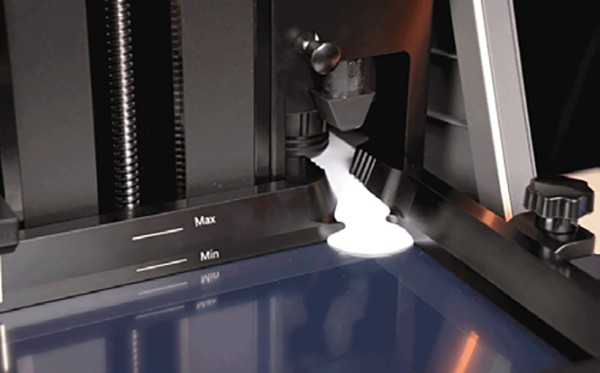

Automatic Resin Refill

Resin quantity detection with an accuracy of within 5 g, and automatic resin refill before and during printing.

Automatic Resin Heating

The heated resin tray elevates resin temperature from 10 °C to an optimal 22 °C in 20 minutes, while auto heating maintains this temperature throughout the printing process for optimal results.

More Features
