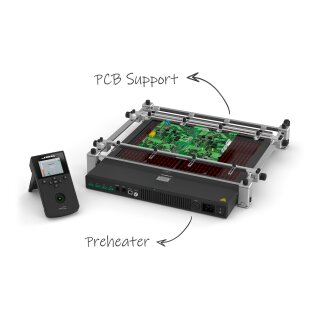

JBC PHBE-2KB IR Preheater Set 230V (Large)

Artno.: JB4-598102
GTIN: 8427327598102
Manufacturers: JBC

The JBC PHBE-2KB IR Preheater Set features a 360×277 mm dual-zone heater, four Type K thermocouples, and Power, Temperature, and Profile modes. The PHBS support adjusts for PCBs up to 36×28 cm, enabling precise, safe rework. 230 V

4.389,00 €

incl. 19% VAT

(3.688,24 € excl. VAT)

Out of stock

The JBC PHBE-2KB IR Preheater Set is an indispensable solution for avoiding thermal shock on multilayer PCBs during rework processes. Designed for maximum reliability and precision, it ensures accurate temperature control of the PCBA so that no component is damaged.

Its composition, consisting of the Preheater and the PHBS PCB Support, provides a complete solution for reworking medium to large PCBAs, such as those commonly found in laptops or PCB panels.

Key Features

Heating area of 360 x 277 mm (14.2 x 10.9 in) with two zones
Four thermocouple (Type K) connections for control and protection
Matchless reliability in temperature accuracy and PCBA control
Up to four thermocouples can be connected in any work mode
ESD safe, compliant with ANSI/ESD S20.20-2021

Work Modes

Power Mode: Allows operation at a fixed power level, with the option of using a protection thermocouple.
Temperature Mode: Maintains the PCBA at a selected temperature using a regulation thermocouple and, optionally, protection thermocouples.
Profile Mode: Controls the heating rate of the PCBA using control and protection thermocouples, ensuring recommended temperature limits are not exceeded.

The system includes 25 temperature profiles, providing flexibility for a wide range of rework applications.

PHBS PCB Support

The PHBS Support is perfectly adaptable to any type of PCB thanks to its multiple adjustable components and three selectable clearance positions: 28, 38, or 48 mm (1.1, 1.5, or 1.9 in).

Product Composition

1 Instruction Manual
1 Heater Unit
1 PHBS Support for PCBs up to 36 x 28 cm (14 x 11 in)
1 Console
2 PH218 Type K Thermocouples
1 PH217 Kapton Tape

Specifications

Peak Power: 1800 W (120 V & 230 V), 1400 W (100 V)
Selectable Temperature: 50 to 250 ºC (120 to 482 ºF)
Heating Area: 180 x 277 mm (7.1 x 10.9 in) – 1 zone; 360 x 277 mm (14.2 x 10.9 in) – 2 zones
Thermocouple Connectors: 4 Type K for control and protection
Profiles: 22 profiles (up to 16 steps each)
Set Temperature Profiles: 3 profiles (2, 3, or 4 steps)
Maximum Work Time: 50 minutes or indefinite

Connectivity

USB-A for firmware updates
USB-B for PC communications, graphics, and profiles
Robot connector for remote control
Auxiliary connector
Console connection
Pedal connector (compatible with pedal ref. P-005)

Weight and Dimensions

Preheater Unit: 426 x 444 x 41 mm, 9.70 kg
(16.77 x 17.48 x 1.61 in, 21.38 lb)
Package: 705 x 625 x 365 mm, 15.65 kg
(27.76 x 24.61 x 14.37 in, 34.50 lb)
