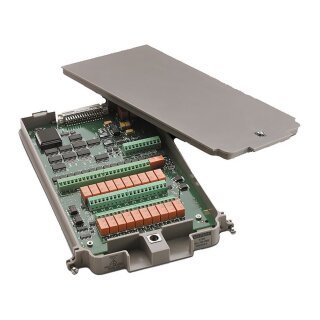

Keithley 7706 16-Channel All-in-One I/O Module Module

Artno.: KL1-977060
HAN: 7706
Manufacturers: Keithley

20-channel Differential Multiplexer w/Automatic CJC, 16 Digital Outputs, 2 Analog Outputs, Counter/Totalizer, Screw Terminals

1.547,00 €

incl. 19% VAT

(1.300,00 € excl. VAT)

Out of stock

The 7706 is a plug-in module designed for diverse measurement and control applications. It features a multiplexer with 20 channels for 2-pole switching or 10 channels for 4-pole switching, complete with automatic cold junction compensation (CJC). Beyond its multiplexing capabilities, the module incorporates two analog output channels and 16 digital outputs. A notable feature is its event counter/totalizer, which enables monitoring and control of various system components while conducting mixed signal measurements. These components may include fixtures, limit switches, pass/fail indicators, external voltage sources, loads, door closures, and revolution counters. With its comprehensive feature set, the 7706 is particularly well-suited for temperature measurement applications using RTDs, thermistors, and thermocouples.

Key Features

Incorporates 20 analog input channels with built-in automatic cold junction compensation for versatile measurement applications
Features 16 channels dedicated to digital output functionality
Equipped with dual analog output channels, each capable of ±12V and 5mA
Robust capacity of 300V and 1A, with maximum power handling of 60W or 125VA
Flexible architecture allows configuration as two separate multiplexer banks
Integrated onboard memory for storing relay closure states

Model Overview

Capabilities	Channels 1-20: Multiplex one of 20 2-pole or one of 10 4-pole signals into DMM Channels 21-25 are referenced to chassis ground Channels 21-22: 16 Digital Outputs Channels 23-24: Analog Voltage Output (2) Channels 25: Totalize Input
Contact Life (typ.)	>10⁵ operations at max. signal level >10⁸ operations no load (Minimum signal level 10mV, 10µA)

Contact Resistance	<1Ω at end of contact life
Contact Potential	<±2µV typical per contact, 3µV max (Minimum signal level 10mV, 10µA)
Offset Current	<100pA
Connector Type	Screw terminal, #20 AWG wire size
Isolation Between Any Two Terminals	>10⁹ Ω, <100pF
Isolation Between Any Terminal and Earth	>10⁹ Ω, <200pF
Cross Talk (10MHz, 50Ω Load)	<–35dB
Insertion Loss (50Ω Source, 50Ω Load)	<0.1dB below 1MHz <3dB below 2MHz
Common Mode Voltage	300V between any terminal and chassis
Temperature Accuracy Using Internal CJC	1.0°C (see mainframe specification for details)

Extended Specifications
