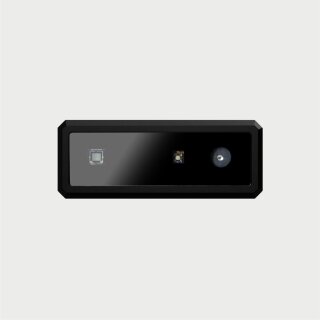

LIPSedge L225 Structured Light Camera

Artno.: LI2-620687
HAN: L225 Structure Light Camera
Manufacturers: Lips

Technology: Structured Light, Depth: 1280 × 960 @ 30 fps, ≤0.3 % Z-Accuracy at 1 m, Operating Range: 0.4 m – 1 m+, FoV: 72° × 57°, Global Shutter, Baseline: 40 mm, Illumination: Infrared 940 nm VCSEL, Interface: USB Type-C, Weight: approx. 85 g, Dimensions: 65 × 25.5 × 22.5 mm, Operating Systems: Windows, Linux.

399,00 €

incl. 19% VAT

(335,29 € excl. VAT)

Orderable
Delivery time: 6 - 7 weeks (DE - int. shipments may differ)

Description
Product Reviews

LIPSedge L225 Structure Light 3D Camera

The LIPSedge L225 Structure Light 3D Camera is a compact 3D camera designed for high-precision capture, measurement, and inspection in close range. The structured light technology enables accurate depth sensing with a Z-accuracy of up to ≤0.3% at 1 m. With resolutions up to 1280 × 960 @ 30 fps, global shutter, and 940 nm VCSEL illumination, the L225 is particularly suitable for 3D scanning, dimension measurement, automated quality control, and robot vision. Its compact form factor, weighing approximately 85 g, and USB Type-C interface allows for easy integration even in space-constrained systems.

Features

Structured light technology for high-precision 3D depth sensing
1280 × 960 pixels at 30 fps
Z-accuracy of ≤0.3% at 1 m and within 70% of the field of view
Operating range of approximately 0.4 m to over 1 m
Field of view of 72° × 57°
Global shutter for precise capture of moving objects
40 mm baseline for accurate depth measurement
940 nm VCSEL infrared illumination
Compact dimensions of 65 × 25.5 × 22.5 mm
Lightweight design of approximately 85 g
USB Type-C for data transmission and power supply
Support for Windows and Linux
LIPSedge SDK with support for various industrial frameworks

Applications

3D scanning and digital object capture
3D measurement and dimension capture
Automated quality control
Inline 3D inspection
Object and shape recognition
Robot vision and automated processes
Assembly and production automation
Research and development
3D facial and feature extraction
Industrial 3D measurement and capture systems

Model Overview

Model	M3 LED	DL	DL400	T225	T235	AT	L235	AE400	AE430	AE450	AE470	S315	S325
Technology	ToF						Structured Light	Active Stereo
Measurement Range	0.2–4 m	0.2–4 m	2–6 m	0.3–6 m+	0.3–6 m+	1.5–8 m	0.4–1 m+	0.45–4 m+	0.45–4 m+	0.6–6 m+	0.6–6 m+	0.6–4 m+	0.3–3 m+
Depth FoV	74.1° × 57.5° × 92°	74° × 58° × 88°	74.1° × 57.5° × 92°	85.1° × 69° × 98.9°	85.1° × 69° × 98.9°	74.2° × 58.1° × 88°	72° × 57° × 92°	65° × 40° × 72°	65° × 40° × 72°	87° × 58° × 95°	87° × 58° × 95°	87° × 58° × 95°	87° × 58° × 95°
Depth Resolution	80 × 60 @ 30 fps	320 × 240 @ 30 fps	320 × 240 @ 30 fps	640 × 480 @ 60 fps	640 × 480 @ 60 fps	640 × 480 @ 30 fps	640 × 480 @ 90 fps	1280 × 720 @ 30 fps / 640 × 480 @ 60 fps	1280 × 720 @ 30 fps / 640 × 480 @ 60 fps	1280 × 720 @ 30 fps	1280 × 720 @ 30 fps	1280 × 720 @ 30 fps	1280 × 720 @ 30 fps
Depth Accuracy	≤3%	≤1%	≤3%	≤1%	≤1%	≤1%	≤0.3%	≤2% @ 2 m	≤2% @ 2 m	≤2% @ 4 m	≤2% @ 4 m	≤2% @ 2 m	≤2%
RGB	No	1920 × 1080 @ 30 fps	1920 × 1080 @ 30 fps	No	640 × 480 @ 60 fps	1600 × 1200 @ 15 fps / 640 × 480 @ 30 fps	No	1920 × 1080 @ 15 fps / 1280 × 720 @ 30 fps / 640 × 480 @ 60 fps	1920 × 1080 @ 15 fps / 1280 × 720 @ 30 fps / 640 × 480 @ 60 fps	1280 × 800 @ 30 fps	1280 × 800 @ 30 fps	1280 × 720 @ 30 fps	1920 × 1080 @ 30 fps
Interface	USB 2.0	USB 3.0	USB 3.0	USB-C	USB-C	PoE	USB-C	PoE / M12	PoE / M12	PoE / M12	PoE / M12	USB-C	GigE / PoE
IP67	No							Yes				No	Yes
Edge AI	No								5.0 TOPS	No	5.0 TOPS	4.5 TOPS	Cortex-A55, 4 GB RAM, 32 GB eMMC

Technical Specifications

Technology	Structured Light
Depth	1280 × 960 @ 30 fps · ≤0.3% Z-accuracy at 1 m and 70% FoV · approx. 0.4–1 m+ · FoV 72° × 57° · Global Shutter
Baseline	40 mm
Illumination	Infrared · 940 nm · VCSEL
Interface	USB Type-C
Power Supply	5 V DC via USB
Dimensions	65 × 25.5 × 22.5 mm
Weight	approx. 85 g
Operating Temperature	0 °C to 40 °C
Storage Temperature	−20 °C to 60 °C
Operating Systems	Windows · Linux
Environment	Indoor
