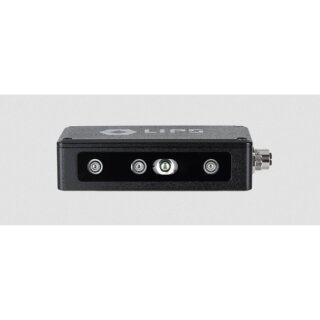

LIPSedge S205p Stereo 3D Camera

Artno.: LI2-723480-P
Manufacturers: Lips

Active stereo technology, 95 mm baseline, range: 0.16-10 m, resolution: 1280 × 720 @ 30 fps, Z-accuracy: ≤1.5%, RGB camera: 1280 × 800 @ 30 fps, global shutter, illumination: 850 nm infrared with VCSEL, 6-axis IMU, Ambarella CV2® SoC, quad-core ARM Cortex-A53 up to 1.0 GHz, PoE IEEE 802.3at M12, dimensions: 130 × 32 × 66 mm, weight: 320 g, temperature range: 0-40 °C, suitable for indoor/outdoor, supports Windows 10 and Ubuntu 18.04/20.04 LTS.

Variant: 1.899 €LIPSedge S205p Stereo 3D Camera

1.899 €LIPSedge S205p Stereo 3D Camera (including M12 cable)

1.899,00 €

incl. 19% VAT

(1.595,80 € excl. VAT)

plus

Orderable

Please select a model.

Description
Product Reviews

LIPSedge S205p Stereo 3D Camera

The LIPSedge S205p Stereo 3D Camera combines high-resolution active stereo depth sensing, RGB, global shutter, 6-axis IMU, and edge AI processing in a compact PoE camera. With a range of up to 10 m, it is particularly suitable for 3D machine vision, robotics, 3D mapping, and applications involving moving objects. The integrated Ambarella CV2® CVflow® SoC also enables the processing of computer vision and deep learning tasks directly at the camera.

Features

Active stereo 3D sensing with a 95 mm baseline
Wide range of 0.16 to 10 m
1280 × 720 @ 30 fps with ≤1.5% Z-accuracy
RGB camera with 1280 × 800 @ 30 fps
Global shutter for depth and RGB sensor
850 nm infrared illumination with VCSEL
Integrated 6-axis IMU
Ambarella CV2® CVflow® SoC for edge AI and deep learning
Quad-core ARM Cortex-A53 up to 1.0 GHz
PoE according to IEEE 802.3at via M12 connector
Support for Windows 10 and Ubuntu 18.04 / 20.04 LTS
For indoor and outdoor applications

Applications

3D machine vision and industrial image processing
Robot vision and mobile robotic systems
3D depth mapping and 3D mapping
Object and person recognition
Autonomous systems and spatial perception
Applications with high-speed movements
Edge AI and deep learning
Indoor and outdoor computer vision

Model Overview

Model	M3 LED	DL	DL400	T225	T235	AT	L235	AE400	AE430	AE450	AE470	S315	S325
Technology	ToF						Structured Light	Active Stereo
Measurement Range	0.2–4 m	0.2–4 m	2–6 m	0.3–6 m+	0.3–6 m+	1.5–8 m	0.4–1 m+	0.45–4 m+	0.45–4 m+	0.6–6 m+	0.6–6 m+	0.6–4 m+	0.3–3 m+
Depth FoV	74.1° × 57.5° × 92°	74° × 58° × 88°	74.1° × 57.5° × 92°	85.1° × 69° × 98.9°	85.1° × 69° × 98.9°	74.2° × 58.1° × 88°	72° × 57° × 92°	65° × 40° × 72°	65° × 40° × 72°	87° × 58° × 95°	87° × 58° × 95°	87° × 58° × 95°	87° × 58° × 95°
Depth Resolution	80 × 60 @ 30 fps	320 × 240 @ 30 fps	320 × 240 @ 30 fps	640 × 480 @ 60 fps	640 × 480 @ 60 fps	640 × 480 @ 30 fps	640 × 480 @ 90 fps	1280 × 720 @ 30 fps / 640 × 480 @ 60 fps	1280 × 720 @ 30 fps / 640 × 480 @ 60 fps	1280 × 720 @ 30 fps	1280 × 720 @ 30 fps	1280 × 720 @ 30 fps	1280 × 720 @ 30 fps
Depth Accuracy	≤3 %	≤1 %	≤3 %	≤1 %	≤1 %	≤1 %	≤0.3 %	≤2 % @ 2 m	≤2 % @ 2 m	≤2 % @ 4 m	≤2 % @ 4 m	≤2 % @ 2 m	≤2 %
RGB	No	1920 × 1080 @ 30 fps	1920 × 1080 @ 30 fps	No	640 × 480 @ 60 fps	1600 × 1200 @ 15 fps / 640 × 480 @ 30 fps	No	1920 × 1080 @ 15 fps / 1280 × 720 @ 30 fps / 640 × 480 @ 60 fps	1920 × 1080 @ 15 fps / 1280 × 720 @ 30 fps / 640 × 480 @ 60 fps	1280 × 800 @ 30 fps	1280 × 800 @ 30 fps	1280 × 720 @ 30 fps	1920 × 1080 @ 30 fps
Interface	USB 2.0	USB 3.0	USB 3.0	USB-C	USB-C	PoE	USB-C	PoE / M12	PoE / M12	PoE / M12	PoE / M12	USB-C	GigE / PoE
IP67	No							Yes				No	Yes
Edge AI	No								5.0 TOPS	No	5.0 TOPS	4.5 TOPS	Cortex-A55, 4 GB RAM, 32 GB eMMC

Technical Specifications

Technology	Active Stereo · 95 mm depth baseline
Depth	1280 × 720 @ 30 fps · ≤1.5% Z-accuracy · 0.16–10 m · FoV 87° × 58° × 95° · Global Shutter
RGB	1280 × 800 @ 30 fps · FoV 90° × 65° × 98° · Global Shutter
Illumination	Infrared · 850 nm · VCSEL
IMU	6-axis · 3-axis accelerometer + 3-axis gyroscope
Edge Processor	Ambarella CV2® CVflow® · Quad-Core ARM Cortex-A53, up to 1.0 GHz
Interface	PoE, IEEE 802.3at · M12
Dimensions	130 × 32 × 66 mm
Weight	320 g
Operating Temperature	0 to 40 °C
Storage Temperature	−20 to 60 °C
Environment	Indoor / Outdoor
Operating Systems	Windows 10 · Ubuntu 18.04 / 20.04 LTS
