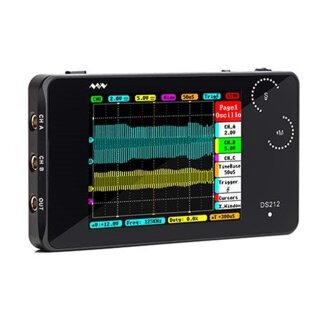

Miniware DS212 Portable Mini Oscilloscope

It is a pocket size digital storage oscilloscope is small enough to take it anywhere, and fulfills basic electronic engineering requirements. Dual trace three lines, new kind of system interface, capacitive convenient operation. Inbuilt 8MB U-disk storage for waveform data and images. Can be powered by internal batteries, so in the field measurement, the ground wire is completely suspended, can be exactly like a multi-meter, point where to measure, without considering the problem of grounding isolation. The oscilloscope code application layer is open source. Users can develop firmware according to different needs. Can meet the demands in many fields, such as, school experiments, electronic repairing, and electric engineering.

Specifications

• Operation: Button, Encoder
• Channels: 2 Analog channels
• Horizontal Sensitivity: 1uS/Div~2S/Div(1-2-5 sequence step)
• Vertical Sensitivity: 20mv/Div~10V/Div(1-2-5 sequence step)
• Trigger Mode: Ascend / Descend Edge Trigger Mode
• Math Waveforms: -A, -B, A+B, A-B, RecA, RecB, RecC
• Inbuilt Signal Generator: Sine / Square / Triangle / Sawtooth Wave
• Synchronous Mode: Auto, Normal, Single, Scan, None
• Auto Measurement:
  • Signal Sequence / Cycle / Duty Ratio
  • Peak Voltage / Virtual Value / Max Value / Min Value / Average
• Open Source: Application Layer Open-Source
• MCU: STM32F303VC
• ADC: MCU Internal ADC
• Analog Bandwidth: 1MHz
• Max Sample Rate: 10MS/s
• Max Sample Memory Depth: 8K
• Analog Input Impedance: 1MΩ
• Coupling: DC / AC
• AUTO_FIT: AUTO_FIT
• APP Installed: 2
• Data Transfer Interface: Micro USB Port
• Storage: 8MB USB Flash Disk Memory
• Net Weight: 88g (with Battery)
• Certification: Compliant with EU Certification CE FCC
• Screen Size: 2.8"
• Screen Resolution: 320 1× 240
• Battery: 500mAh
• Dimension: 100mm 1× 56.5mm 1× 10.7mm

Contents

• 1× DS212 Mini Oscilloscope
• 1× x1/x10 Probe
• 1× USB Cable
• 1× User Manual
