Miniware ES120 Plus Motion Control Screwdriver

ES120 Mini Electric Screwdriver has set a new standard for electric screwdrivers. It is an electric screwdriver with a compact structure, smart and exquisite appearance, as well as the function of motion control recognition. It has only the length of a Parker pen, while endowed with a comfortable design for holding, and a set of highly energy-efficient accessories. Through an OLED screen, the device displays parameters and rotation modes of motion-control recognition. Under these help, you are able to easily complete the disassembling and assembling of your digital devices.

ES120P includes a planetary gearbox and a high-speed electric motor, with excellent support from the STM32 embedded micro-processor and angular velocity sensor. Slim 304 stainless steel housing body with pen shape and knurling design, anti-slip convenient to hold. Through an OLED screen, the device displays parameters and rotation modes of motion-control recognition. Under these help, you are able to easily complete the disassembling and assembling of your digital devices.

Specifications

• Operation Voltage: DC 3-5V
• Electronic Torque: 2.5kgf.cm / 30kgf.cm(Manual)
• Running Time: 60min
• Load-free Speed: 170r/min
• Charging Time: 30 min
• Charging Mode: Micro USB 5V Input
• Body Material: 304 Stainless Steel / Copper Alloy
• Battery: 300mAh 10440 Lithium-ion Battery
• Gearbox: 1:144 Integrated Planetary Gearbox
• Motor: 25,000 rpm Brush Motor
• Certification: Compliant with EU Certification CE FCC
• Screen: 16 x 96 OLED
• Main Chip: STM32
• Sensor: Angular Velocity Sensor
• Screwdriver Bit: 4mm Hexagon

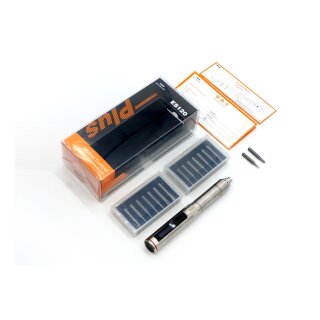

Contents

• 1× ES120P Mini Electric Screwdriver(Steel)
• 1× Screwdriver Bits SL2.0
• 1× Screwdriver Bits PH00
• 1× Regular Screwdriver Bits Set
• 1× Screwdriver Bits Set for Apple Series
• 1× Safety Instructions
• 1× Warranty Card
