Pocket Science Lab

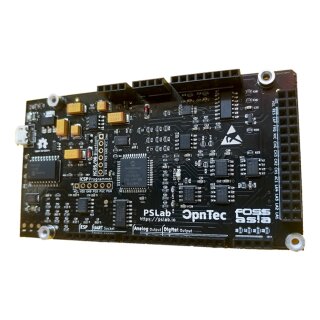

The Pocket Science Lab is an open source / open hardware project and combines various measurement functions in one compact board, including an oscilloscope, multimeter, signal generator, logic analyzer and programmable voltage sources.

With the Pocket Science Lab mobile and desktop apps it is possible to use sensors of a phone or desktop PC to collect measurements and data. The app comes with a built-in Oscilloscope, Multimeter, Wave Generator, Logic Analyzer, Power Source, and we are constantly adding more digital instruments or even robotic controls.

With Pocket Science Lab applications your phone or PC is like many devices in one. Adding widely available sensors to the PSLab board, you are able extend your device to be a complete lab in the pocket. You can collect air data, temperature, water quality, the level of radioactivity and anything you can imagine.

As a developer you are able to create your own plugins and front-ends to integrate the PSLab science libraries into other solutions.

Hardware Specifications

• 4-channel Oscilloscope up to 2 MSPS with software selectable amplification stages
• 12-bit Voltmeter with programmable gain, input ranges from +/-10 mV to +/-16 V
• 3x 12-bit Programmable voltage sources +/-3.3 V, +/-5V, 0-3V
• 12-bit Programmable current source 0-3.3 mA
• 4-channel logic analyzer up to 4 MHz
• 2x sine/triangular waveform generators 5 Hz to 5 KHz
• 4x PWM generators up to 8 MHz with 15 nS resolution
• Capacitance measurement from pF to uF range
• Supports Advanced Plugins/Add-on Modules
• I2C, SPI, UART data buses for accelerometers/gyros/humidity/temperature modules
