This is a direct replacement for article PCBITE-4003, now with a pre-fitted insulation cover on the baseplate.
The first truly handsfree probe! Makes instant measurements or long triggering sessions a breeze.
No more soldering wires to connect your probe or complicated tools to set up. Simply position the probe needle on any test point or component in the signal path and release.
Saves time and frustration during development, verification, and repairs.
The minimalist design and spring-loaded test needle make it possible to simultaneously measure on fine pitch components and nearby signals.
The probe is steady yet flexible, designed for instant measurements or total hands-free operations together with your multimeter, logic analyzer, or preferred tool.
The dual pin header connector fits directly on a 2.54mm (0.100”) connector.
The SP10 comes with a powerful magnet in the base, like all PCBite probes and holders, making the probe easy to place and reposition.
See the user guide for specifications.

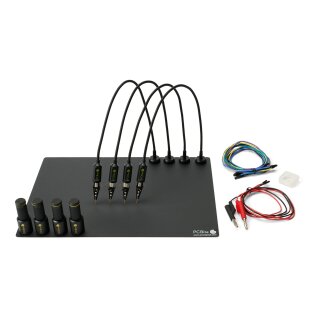

Includes
- 4× PCBite holders
- 1× Large insulated base plate (DIN A4, 210x297mm)
- 4× SP10 probes with pin-tipped test needles
- 4× Extra test needles
- 1× Set of yellow insulation washers
- 5× Dupont-to-Dupont test wires
- 2× Banana-to-Dupont test wires
- 1× Microfiber cloth
