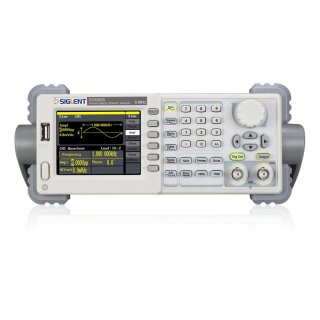

The SDG800 series Function/Arbitrary Waveform Generator is a member of the SIGLENT family, designed with user-friendly features and advanced capabilities. This generator enables editing of precise 14-bit 16kpts arbitrary output waveforms. With EasyWave editing software, engineers have access to nine standard waveforms, including Sine, Square, Ramp, Pulse, and more, along with various manual drawing options for creating complex waveforms.
Users can manage multiple waveforms simultaneously with multi-file screen management and store up to 10 waveforms in non-volatile RAM, expandable with EasyWave software. DDS technology ensures single-channel output with a sample rate of 125MSa/s and 14-bit vertical resolution. The generator offers five types of standard output waveforms and 46 built-in arbitrary waveforms, including DC.
A comprehensive set of modulation functions, including AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, and Burst, adds versatility to waveform generation. Abundant input/output options, such as waveform output, synchronous signal output, and external trigger input, cater to diverse application needs.
Standard interfaces like USB Device and USB Host provide convenient connectivity options. Additionally, the generator comes with powerful arbitrary editing software and supports remote control.
Application fields
- Analog sensor
- Simulation environment signals
- Circuit function test
- IC test
- Researching and training
