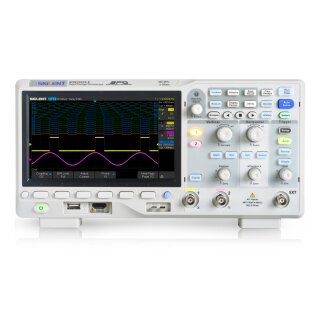

Siglent SDS2202X-E Oscilloscope
Artno.: SL2-322020
Digital storage oscilloscope (DSO), 2 Channels, Bandwidth 200 MHz, Sample Rate 2 GS/s, Memory Depth 28 MPts, Resolution 8-bit / 11-bit (ERES), Waveform Update Rate 110 000 wfrm/s / 400 000 wfrm/s (Sequence Mode), Display 7", Interface USB Host / USB Device / LAN, Serial Trigger/Decoder I2C / SPI / UART / CAN / LIN, SPO Technology, Web Interface, 50 MHz Signal Generator (optional), 16-Channel Logic Analyzer (optional)

from 624.84 € incl. 16% VAT
538.66 € excl. VAT
On stock

Shipping time: 1 - 3 workdays

Your configuration
  • Single channel USB signal generator module with isolated output, 25 MHz bandwidth, 125 MHz sample rate, 16 KPts max. wave length. For Siglent SDS1004X-E, SDS2000X-E and SDS5000X series oscilloscopes (requires additional license)
    Single channel USB signal generator module with isolated output, 25 MHz bandwidth, 125 MHz sample rate, 16 KPts max. wave length. For Siglent SDS1004X-E, SDS2000X-E and SDS5000X series oscilloscopes (requires additional license)
  • Logic probe, 16 channels, 500 MSa/s max. waveform capture rate, 14 Mpts/ch max. record length, for Siglent SDS1004X-E and SDS2000X-E series oscilloscopes (requires additional license)
    Logic probe, 16 channels, 500 MSa/s max. waveform capture rate, 14 Mpts/ch max. record length, for Siglent SDS1004X-E and SDS2000X-E series oscilloscopes (requires additional license)
  • 802.11b/g/n WiFi module, specially approved by Siglent. For Siglent SDS1004X-E and SDS2000X-E series oscilloscopes (requires additional license)
    802.11b/g/n WiFi module, specially approved by Siglent. For Siglent SDS1004X-E and SDS2000X-E series oscilloscopes (requires additional license)
624.84 € incl. 16% VAT *

Description

SIGLENT's new SDS2000X-E Series Super Phosphor Oscilloscopes are available in two bandwidths: 200 MHz and 350 MHz. They each have a maximum sampling rate of 2 GSa/s and a standard record length of 28 Mpts. The most commonly used functions can be accessed with its user-friendly one-button design.

The SDS2000X-E series employs a new generation of SPO technology. With its excellent signal fidelity, background noise is lower than similar products in the industry. It has a minimum vertical input range of 500 µV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). It also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. Siglent?s newest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering and decoding. History waveform recording and sequential triggering allow for extended waveform records to be captured, stored, and analyzed. Also included is the deep memory FFT. This math function uses up-to 1 M samples for the FFT calculation, providing the SDS2000X-E with very high frequency resolution. The hardware co-processor executes true fast measurement and math to all of 28M sample points so that there is minimal distortion on analysis. It also supports searching and navigating, on-screen Bode plot, 16 channel digital /MSO (optional), an external USB powered 25 MHz AWG function generator module (option), a USB WIFI adapter for wireless control and monitoring (option), and an embedded application that allows remote control via web browser. The features and high-performance of the SDS2000X-E oscilloscopes cannot be matched else anywhere at this price.

Model Overview

SDS2202X-E SDS2202X-E
Channels 2+EXT
Bandwidth 200 MHz 350 MHz
Sample Rate 2 GSa/s
Memory Depth 28 MPts
14 MPts/ch (non-interleaving mode)
Waveform Capture Rate 110 000 wfm/s (Normal Mode)
400 000 wfm/s (Sequence Mode)
Vertical Resolution 8-bit
up to 11-bit in ERES Mode
Trigger Types Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video, Serial
Serial Trigger/Decoder I2C, SPI, UART, CAN, LIN (Standard)
SDS2202X-E SDS2202X-E
Measurement Functions More than 38 parameters, supports statistics with histogram
Math Functions 1 MPt FFT, +, -, ×, ÷, d/dt, ∫dt, √, Average, ERES
Data Processing Search&Navigate, History, Mask Test, Bode Plot, Counter
Logic Analyzer (optional) 16 Channels, 500 MSa/s Sample Rate, 14 MPts Record Length per Channel
Signal Generator (optional) 1 Channel, 25 MHz Bandwidth, 125 MSa/s Sample Rate, 16 KPts Memory Depth
Web Browser Remote Control
Interfaces USB Host, USB Device, LAN, External Trigger, Auxiliary Output (TRIG OUT, PASS/FAIL), SBUS
Display 7" TFT-LCD (800x480 Pixel)
Supplied Probes 2x PP215, 200 MHz 2x SP2035, 350 MHz

Package Contents

  • Device
  • Power Cord
  • USB Cable
  • Quick Start Guide
  • Probes

Features

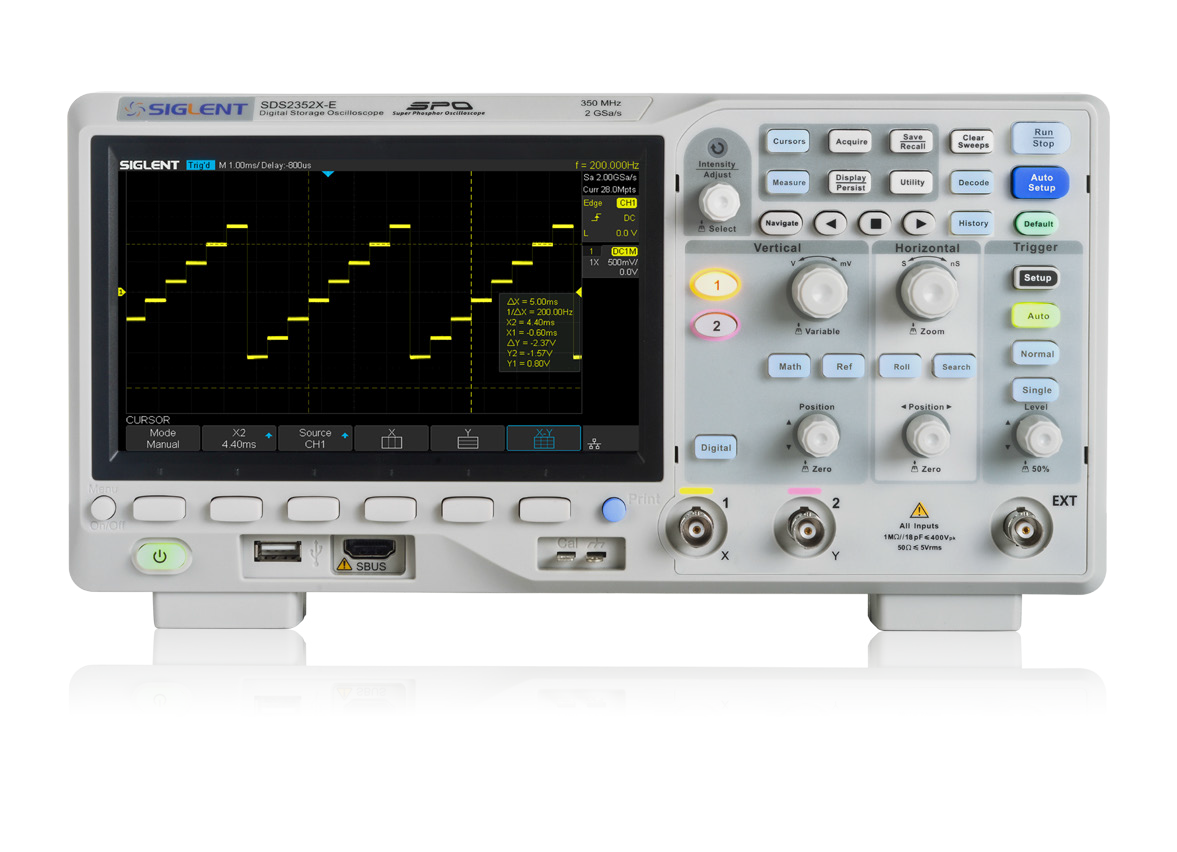

7-inch TFT-LCD display and 10 one-button menus
Most commonly used functions are accessible using 10 different one-button operation keys: Auto Setup, Default, Cursor, Measure, Roll, History, Persist, Clear Sweep, Zoom, Print. Resolution is 800 x 480 pixels.
Maximum sample rate of 2 GSa/s, record Length of up to 28 Mpts
Using hardware-based Zoom technologies and max record length of up to 28 Mpts, users are able to oversample to capture for longer time periods at higher resolution and use the zoom feature to see more details within each signal.

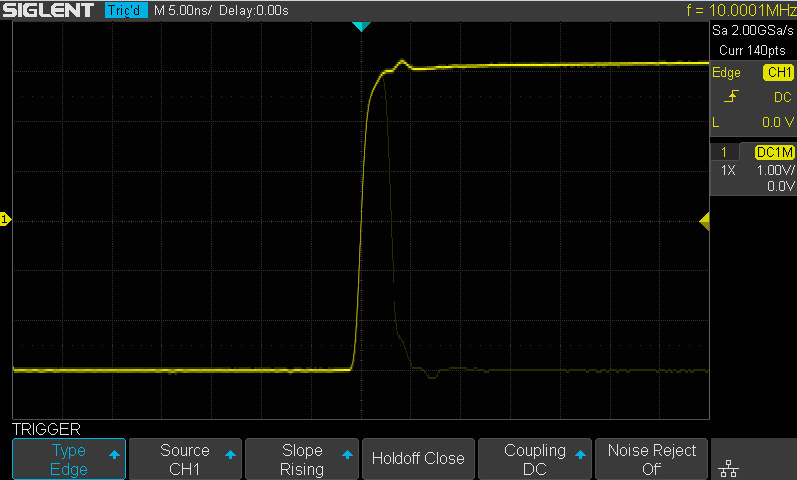

Waveform Capture Rate up to 400,000 wfm/s
With a waveform capture rate of up to 400,000 wfm/s (sequence mode), the oscilloscope can easily capture the unusual or low-probability events.

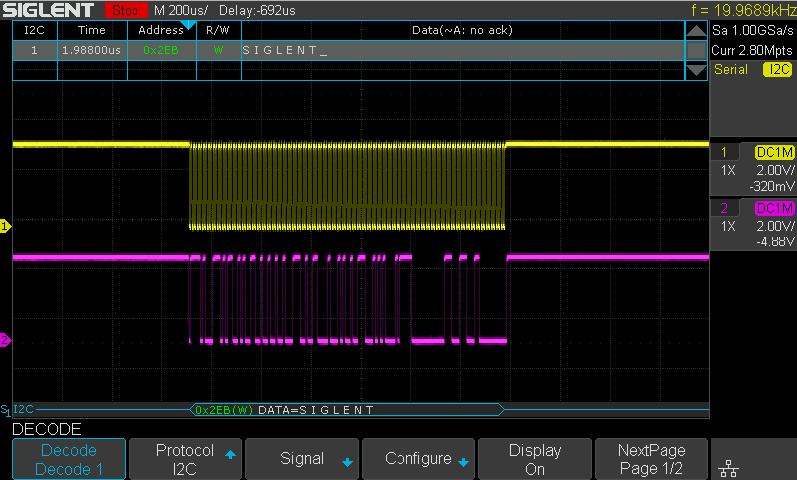

Serial Triggering and Decoding
The SDS2000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.

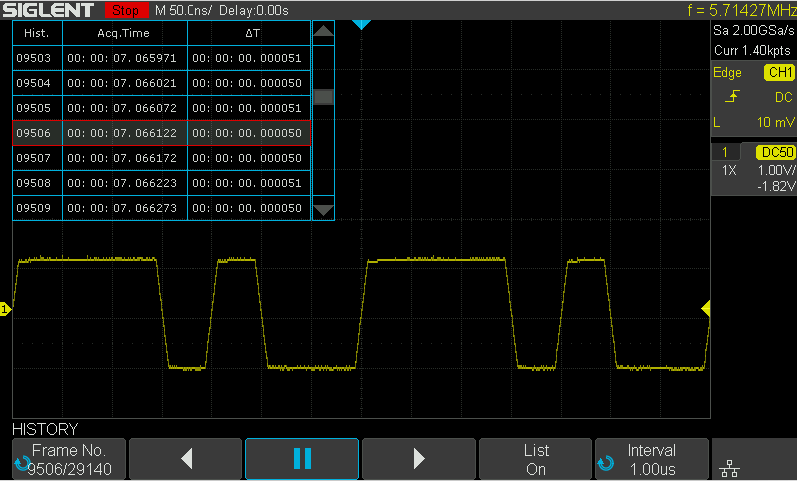

History Waveforms and Segmented Acquisition
Playback the latest triggered events using the history function. Segmented memory collection will store trigger events into multiple (Up to 80,000) memory segments, each segment will store triggered waveforms and timestamp of each frame.

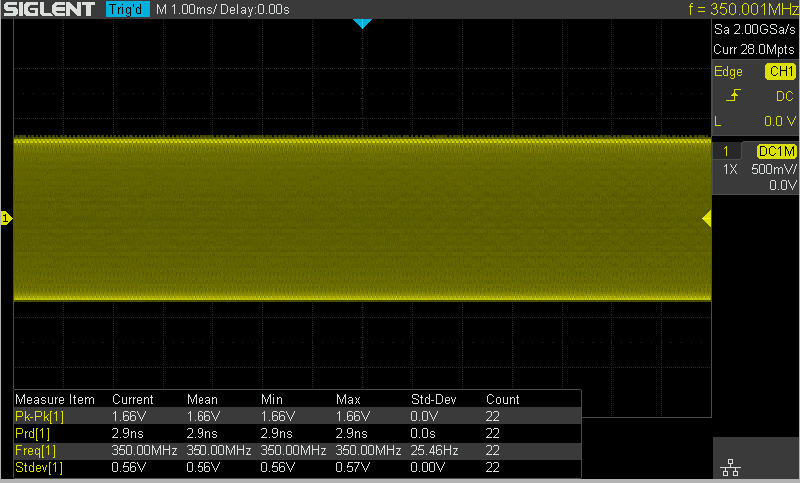

Real-Time measurement up to 28 MPts
The SDS2000X-E can apply automatic measurements on all sampled data points up to 28 MPts. This ensures the accuracy of measurements while the math co-processor decreases measurement time and increases easeof-use.

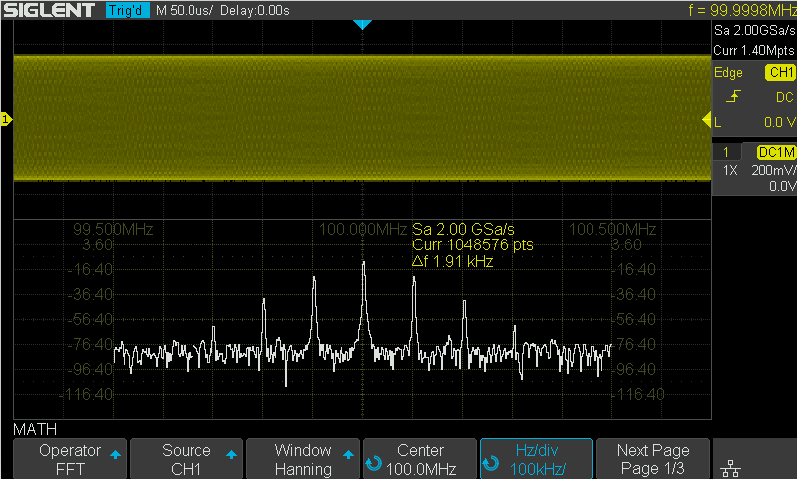

1 MPts FFT
The new math co-processor enables FFT analysis of incoming signals using up to 1 million samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs.

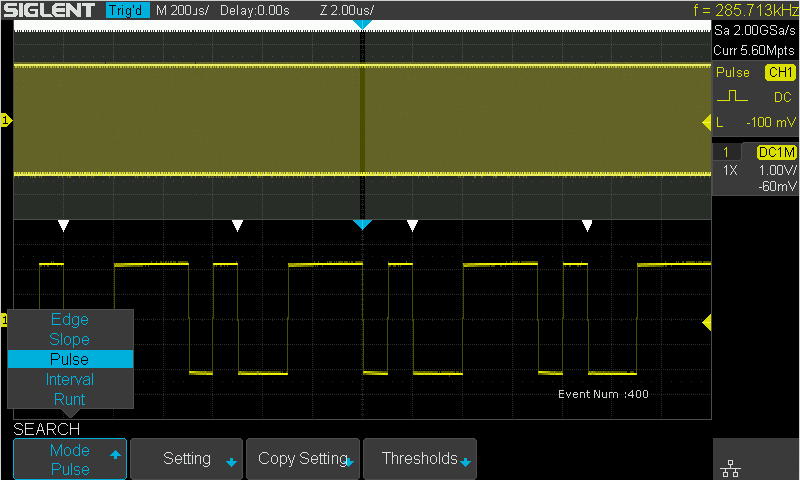

Search&Navigate
The SDS2000X-E can search events specified by the user in a frame. It can also navigate by time (delay position) and historical frames.

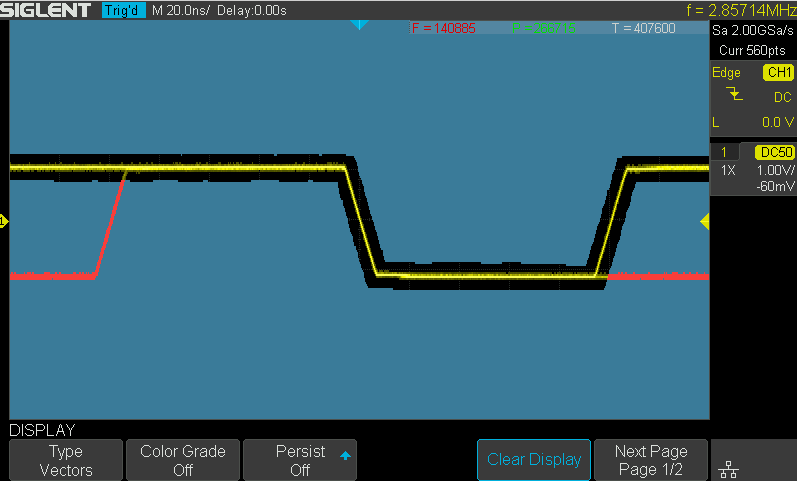

Hardware-Based High Speed Pass/Fail function
The SDS2000X-E utilizes a hardware-based Pass/Fail function, performing up to 40,000 Pass / Fail decisions each second. Easily generate user defined test templates provide trace mask comparison making it suitable for long-term signal monitoring or automated production line testing.

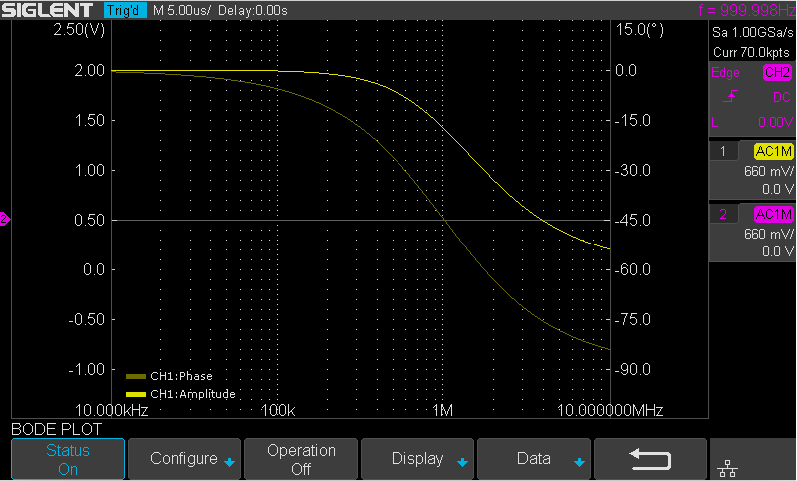

Bode Plot
The SDS2000X-E can control the USB AWG module or an independent SIGLENT SDG instrument, scan a circuits amplitude and phase frequency response, and display the data as a Bode Plot.

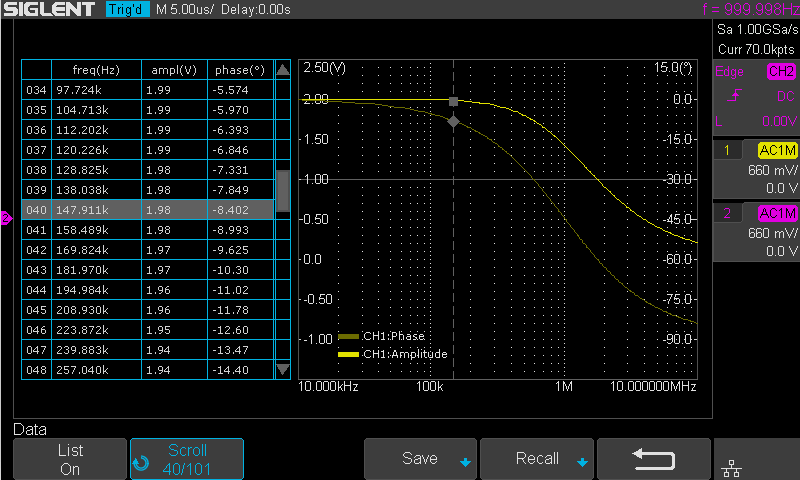

Results List
It can show the result lists, and export the data to a USB device.

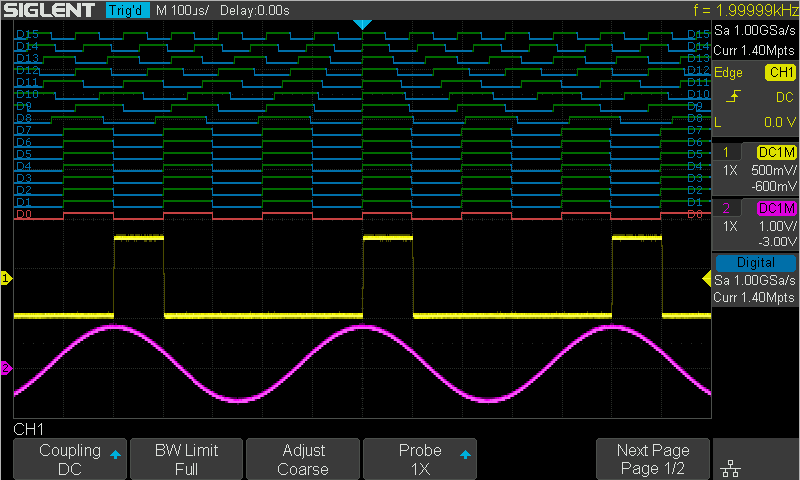

16 Digital Channels/MSO (optional)
16 digital channels enables users to acquire and trigger on digital input channels and view both digital and analog waveforms simultaneously with one instrument.

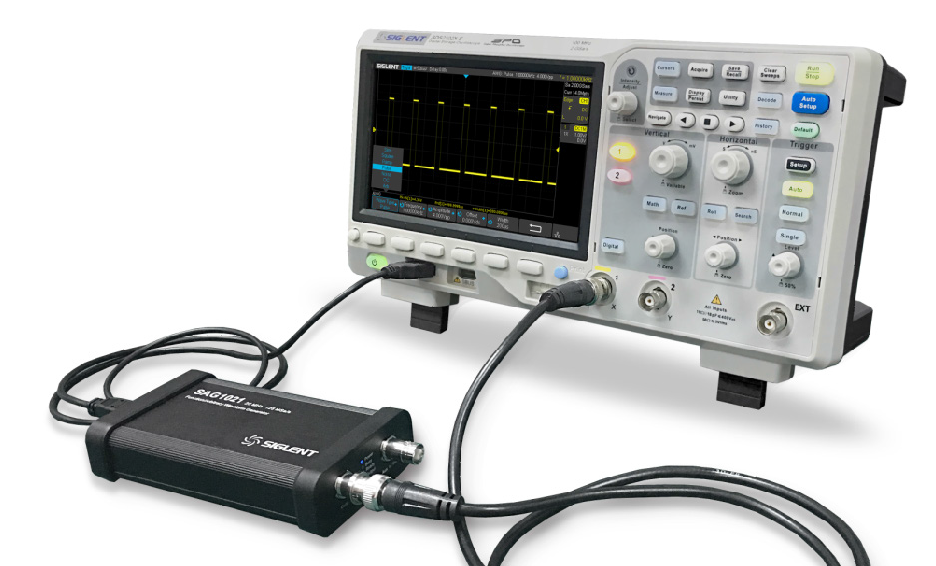

25 MHz USB AWG Module (optional)
The optional 25 MHz function/arbitrary waveform generator is operated from the USB host connection. Functions include Sine, Square, Ramp, Pulse, Noise, DC and 45 additional built-in waveforms. The arbitrary waveforms can be accessed and edited by the SIGLENT EasyWave PC software.
USB WIFI Adapter (optional)
WiFi control of instrumentation can provide a convenient and safe method of configuring and collecting data. This new feature works with a SIGLENT approved WiFi adapter to provide wireless control and communications with SIGLENT SDS2000X-E scopes.
Web Control

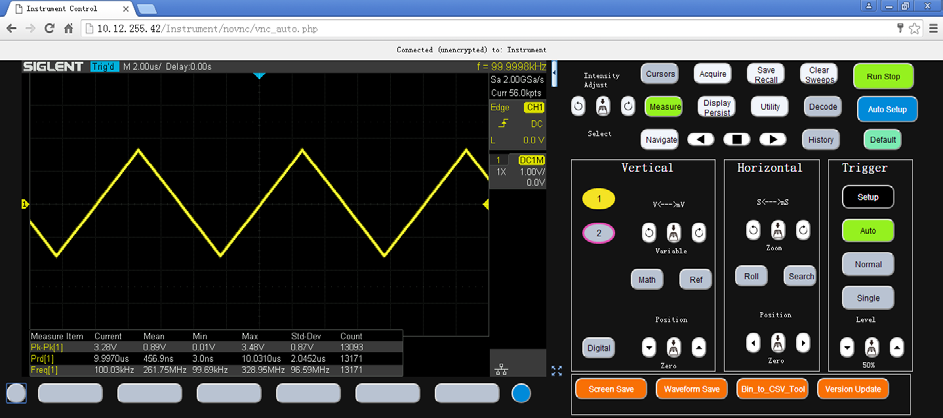

With the new embedded web server, users can control the SDS2000X-E from a simple web page. This provides wonderful remote troubleshooting and monitoring capabilities. The web page has PC and mobile styles that include an embedded virtual control panel.

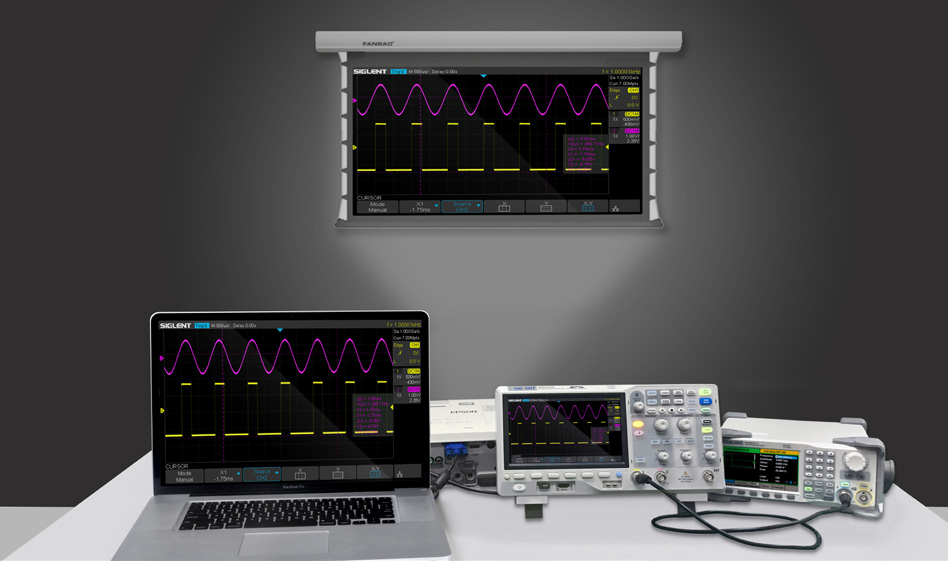

Real-Time Screen Update in Web Interface
With 100 MBit/s LAN interface, the internal web page can update at a rate of up to 10 times/s, providing a nearly-real time update of waveform data and measurements. When viewed on a PC, the screen can be displayed in full screen mode. With this feature and a PC VGA interface, you can easily use a projector or other video display device to deliver the screen information to a larger audience.

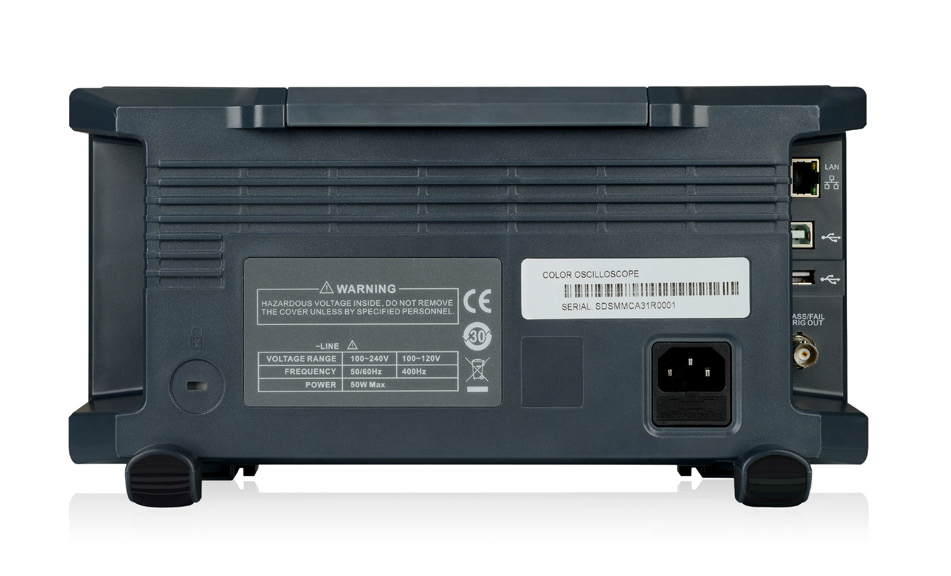

Complete Connectivity
The SDS2000X-E supports USB Host, USB Device (USB-TMC), LAN, Pass/Fail and Trigger Out.


Shipping weight: 3.50 Kg
