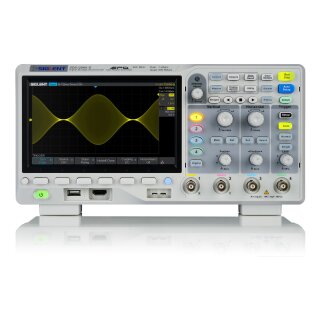

Siglent SDS1204X-E Oscilloscope
Artno.: 103017-004
Digital storage oscilloscope (DSO), 4 channels, bandwidth 200 MHz, memory depth 14 MPts, waveform capture rate 100.000 wfrm/s (400.000 wfrm/s in sequence mode), 7" WVGA display, SPO technology, serial trigger and decoder

from 784.00 € incl. 19% VAT
658.82 € excl. VAT
On stock

Shipping time: 1 - 3 business days

Your configuration
  • Single channel USB signal generator module with isolated output, 25 MHz bandwidth, 125 MHz sample rate, 16 KPts max. wave length. For Siglent oscilloscope series SDS1004X-E, SDS2000X-E, SDS5000X, SDS6000A(requires additional license)
    soon in stock
    Shipping time: 4 - 6 business days
    Single channel USB signal generator module with isolated output, 25 MHz bandwidth, 125 MHz sample rate, 16 KPts max. wave length. For Siglent oscilloscope series SDS1004X-E, SDS2000X-E, SDS5000X, SDS6000A(requires additional license)
  • Logic probe, 16 channels, 500 MSa/s max. waveform capture rate, 14 Mpts/ch max. record length, for Siglent SDS1004X-E and SDS2000X-E series oscilloscopes (requires additional license)
    On stock
    Shipping time: 1 - 3 business days
    Logic probe, 16 channels, 500 MSa/s max. waveform capture rate, 14 Mpts/ch max. record length, for Siglent SDS1004X-E and SDS2000X-E series oscilloscopes (requires additional license)
  • 802.11b/g/n WiFi module, specially approved by Siglent. For Siglent SDS1004X-E and SDS2000X-E series oscilloscopes (requires additional license)
    50+ On stock
    Shipping time: 1 - 3 business days
    802.11b/g/n WiFi module, specially approved by Siglent. For Siglent SDS1004X-E and SDS2000X-E series oscilloscopes (requires additional license)
784.00 € incl. 19% VAT *

Description

SIGLENT's new SDS1000X-E Super Phosphor Oscilloscopes feature two channel and four channel models. The two channel model is available with a 200 MHz analog bandwidth, a single ADC with a 1 GSa/s maximum sample rate, and a single memory module with 14 Mpts of sample memory. The four channel scope is available in 100 and 200 MHz models and incorporates two 1 GSa/s ADCs and two 14 Mpts memory modules. When all channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 7 Mpts. When only a single channel per ADC is active, the maximum sample rate is 1 GSa/s and the maximum record length is 14 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user- friendly front panel design.

The SDS1000X-E series employs a new generation of SPO (Super-Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X-E also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. SIGLENT's latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding for IIC, SPI, UART, CAN, LIN bus types is included. The X-E models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new 1 million point FFT math function that gives the SDS1000X-E very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co-processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response. The features and performance of SIGLENT's new SDS1000X-E cannot be matched anywhere else in this price class.

The four channel series includes even more functions like search/navigate, Bode plot funtionality and remote control via web browser, as well as optional 16 digital channels, 25 MHz signal generator module or a USB WIFI adapter.

Model Overview

SDS1202X-E SDS1104X-E SDS1204X-E
Channels 2+EXT 4 4
Bandwidth 200 MHz 100 MHz 200 MHz
Memory Depth 14 Mpts/CH (interleave mode)
7 Mpts/CH (no interleave mode)
Waveform Capture Rate 100,000 wfm/s (normal mode)
400,000 wfm/s (sequence mode)
Trigger Types Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
Serial Trigger and Decoder (Standard)
IIC, SPI, UART/RS232, CAN, LIN
Digital Channels N/A 16 (optional)
1 GSa/s waveform capture rate, 14 Mpts/CH record length
Signal Generator N/A 1 AWG (optional)
25 MHz, sample rate of 125 MHz, wave length of 16 kpts
Bode Plot N/A
via optional USB AWG module or any Siglent signal generator.
WLAN N/A (optional)
Interfaces USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO)
Display 7 inch TFT-LCD (800x480 Pixel)
Probes 2x PP215 (200 MHz) 4x PP510 (100 MHz) 4x PP215 (200 MHz)

Features

Highest Sampling Rate in Its Class!
When all channels are enabled, each channel has a maximum sample rate of 500 MSa/s. When a single channel per pair is active, that channel has sample rate of 1 GSa/s. The four channel series has two 1 GSa/s ADCs (CH1/2 share one, CH3/4 share another), so that each channel can achieve sample rates up to 500 MSa/s and work on bandwidths of 200 MHz when all channels are enabled.
Record Length of Up to 14 Mpts
Using hardware-based Zoom technologies and max record length of up to 14 Mpts, users are able to oversample to capture for longer time periods at higher resolution and use the zoom feature to see more details within each signal.
Waveform Capture Rate Up to 400,000 wfm/s
With a waveform capture rate of up to 400,000 wfm/s in sequence mode, the oscilloscope can easily capture the unusual or low-probability events.
Serial Bus Decoding Function As Standard!
SDS1000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.
256-Level Intensity Grading
SPO display technology provides for fast refresh rates. The resulting intensity-graded trace is brighter for events that occur with more frequency and dims when the events occur with less frequency.
Color Temperature Display
The color temperature display is similar to the intensity-graded trace function, but the trace occurrence is represented by different colors ("color temperature") as opposed to changes in the intensity of one color. Red colors represents the more frequent events, while blue is used to mark points that occur lest frequently.
Waveform History and Segmented Acquisition
Playback the latest triggered events using the history function. Segmented memory collection will store trigger events into up to 80,000 memory segments, each segment will store triggered waveforms and timestamp each frame.
True Measurement of up to 14 Million Sample Points
At any timebase, SDS1000X-E can measure using all 14M sample points. This ensures the accuracy of measurements while the math coprocessor decreases measurement time and increases ease-of-use.
Gate and Zoom Measurement
Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics. This helps avoid measurement errors that can be caused by invalid or extraneous data, greatly enhancing the measurements? validity and flexibility.
FFT with up to 1Mpts
The new math co-processor enables FFT analysis of incoming signals using up to 1 M samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs.
Hardware-Based High Speed Pass/Fail Function
The SDS1000X-E utilizes a hardware-based Pass/Fail function, performing up to 40,000 Pass / Fail decisions each second. Easily generate user defined test templates provide trace mask comparison making it suitable for long-term signal monitoring or automated production line testing.
16 Digital Channels/MSO (4-Channel Models only, optional)
16 digital channels enables users to acquire and trigger on the waveforms then analyze the pattern, simultaneously with one instrument.
Search and Navigate (4-Channel Models only, optional)
The SDS1000X-E can search events specified by the user in a frame. It can also navigate by time (delay position) and historical frames.
Bode-Plot (nur 4-Kanal-Modelle)
The SDS1000X-E can search events specified by the user in a frame. It can also navigate by time (delay position) and historical frames.
USB WIFI Adapter (4-Channel Models only, optional)
WiFi control of instrumentation can provide a convenient and safe method of configuring and collecting data. This new feature works with a Siglent approved WiFi adapter to provide wireless control and communications with Siglent 4 channel scopes.
USB 25 MHz AWG Module (4-Channel Models only, optional)
The four channel series supports a USB 25 MHz function/arbitrary waveform generator that is operated from the USB host connection. Functions include Sine, Square, Ramp, Pulse, Noise, DC and 45 built-in waveforms. The arbitrary waveforms can be accessed and edited by the SIGLENT EasyWave PC software.
Web Control (4-Channel Models only, optional)
With the new embedded web server, users can control the 4 channel scopes from a simple web page. This provides wonderful remote troubleshooting and monitoring capabilities.
Complete Connectivity
SDS1000X-E supports USB Host, USB Device (USB-TMC), LAN(VXI-11), Pass/Fail and Trigger Out.

Shipping weight: 3.80 Kg
