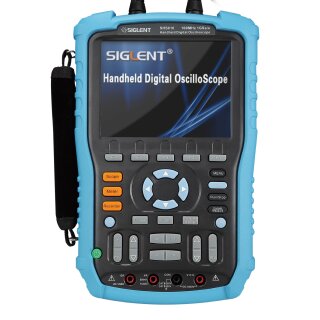

Siglent SHS820 Handheld Oscilloscope
Artno.: 103051-003
Portable digital storage oscilloscope (DSO), 2 Channels, Bandwidth 200 MHz, Sample Rate 500 MS/s, Memory Depth 32 Kpts, Resolution 8-bit, Display 5.7" TFT color LCD
Model
653.00 € incl. 19% VAT
548.74 € excl. VAT
Out of stock

Description

The SHS800 series handheld devices provide the user with an oscilloscope, multimeter, and recorder (including trends and waveform recorder) functions, all in one package. It inherits the SHS1000 series stable and high performance along with the flexibility to use it on a workbench or in the field.

Model Overview

Model SHS806 SHS810 SHS820 SHS1062 SHS1102
Bandwidth 60MHz 100MHz 200MHz 60MHz 100MHz
Sampling Rate 1 GS/s (single channel), 500 MS/s (double channel) 500 MS/s 1 GS/s (single channel), 500 MS/s (double channel)
Channels 2 2 (isolated)
Memory Depth 2 MPts
Trigger Types Edge, Pulse, Video, Slope, Alternative
Math Functions +, -, * , /, FFT
Interfaces USB Device, USB Host
Standard Probes 2 pcs 1X/10X oscilloscope probes
Display 5.7" TFT-LCD (320x234 pixel)

Box Contents

  • Oszilloscope
  • Passive 1X/10X probes (2 pcs)
  • Multimeter test leads
  • USB cable
  • Power supply 9V/4A
  • User Manual
  • CD-ROM with EasyScopeX software
  • Warranty card

Features

High performance oscilloscope
Fully featured digital oscilloscope with up to 1 GS/s sampling rate, including math and FFT functions.
6000 Counts integrated multimeter
Providing measurement of DCV, ACV, DCA, ACA, Resistance, Diode, Capacitance and Continuity.
Current measurement
Measure DC and AC currents from 10µA up to 10A.
Automatic Measurements
32 types of automatic waveform measurements and 3 cursor measure modes.
Measurement trend plot
Data logging functionality for multimeter and scope automatic measurement values with more than 9000h recording time capabilty.
2 Mpts memory depth
Record the signal with a high sample rate and zoom into the area of interest.
Scope data recorder
Record scope waveform continually in scan mode, supports replay and zoom functionality, 7 MPts memory depth.

Shipping weight: 3.70 Kg
