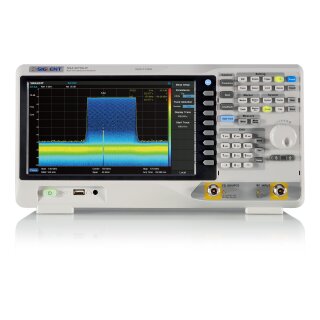

Siglent SSA3075X-R Real-Time Spectrum Analyzer
Artno.: SL6-330750
Real-time spectrum analyzer, 9 kHz .. 7.5 GHz Frequency Range, 1 Hz .. 3 MHz Resolution Bandwidth, Tracking Generator, Touch Screen

from 11,126.50 € incl. 19% VAT
9,350.00 € excl. VAT
Orderable

Shipping time: 5 - 7 business days

Your configuration
  • Bracket for 19" rack mount for Siglent spectrum/network analyzer series SVA1000X, SSA3000X
    On stock
    Shipping time: 1 - 3 business days
    Bracket for 19" rack mount for Siglent spectrum/network analyzer series SVA1000X, SSA3000X
  • Accessory kit for spectrum analyzers consisting of two cables (N male - SMA male, N male - N male), four adaptors (2x N male - BNC female, 2x N male - SMA female) and a 10dB attenuator, frequency bandwidth up to 6 GHz
    On stock
    Shipping time: 1 - 3 business days
    Accessory kit for spectrum analyzers consisting of two cables (N male - SMA male, N male - N male), four adaptors (2x N male - BNC female, 2x N male - SMA female) and a 10dB attenuator, frequency bandwidth up to 6 GHz
  • Near-field probe kit consisting of three H-field probes (20/10/5 mm resolution) and one E-field point probe (5mm resolution), bandwidth 300 kHz .. 3 GHz
    soon in stock
    Shipping time: 15 - 17 business days
    Near-field probe kit consisting of three H-field probes (20/10/5 mm resolution) and one E-field point probe (5mm resolution), bandwidth 300 kHz .. 3 GHz
  • Bolstered carry pouch for transportation and storage of a Siglent SDS2000X oscilloscope or SSA3000X spectrum analyzer
    On stock
    Shipping time: 1 - 3 business days
    Bolstered carry pouch for transportation and storage of a Siglent SDS2000X oscilloscope or SSA3000X spectrum analyzer
  • Portable safety and isolation transformer with European plug and outlet, 230 VAC, IP44, insulation class II, for galvanic isolation
    10+ On stock
    Shipping time: 1 - 3 business days
    Portable safety and isolation transformer with European plug and outlet, 230 VAC, IP44, insulation class II, for galvanic isolation
11,126.50 € incl. 19% VAT *

Description

The Siglent SSA3000X-R series of real-time spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis. The instruments support up to 40 MHz analysis bandwidth and have a very low 7.2 µs 100% POI (Probability of Intercept). Multi-dimensional views, advanced triggering and RF data capturing help to master modern RF signal callenges. Easily analyze hopping frequency, conflicting channels, spectrum interference and more.

The SSA3000X-R series not only offer the tracking generator as standard, but also a powerful Vector Netzwork Analysis (VNA) mode for measurement of S11 and S21 parameters as well as a distance-to-fault mode for cable and antenna testing. The devices can optionally be extended with wideband modulation analysis and extensive EMI pre-compliance measurement functionality.

Applications include broadcast monitoring and evaluation, mobile phone analysis, IoT, WiFi/Bluetooth applications, research and development, training, production and maintenance.

Model Overview

SSA3032X-R SSA3050X-R SSA3075X-R
Frequency Range 9 kHz .. 3.2 GHz 9 kHz .. 5.0 GHz 9 kHz .. 7.5 GHz
Preamplifier
Tracking Generator 100 kHz .. 3.2 GHz 100 kHz .. 5.0 GHz 100 kHz .. 7.5 GHz
Vector Network Analysis (VNA) 100 kHz .. 3.2 GHz 100 kHz .. 5.0 GHz 100 kHz .. 7.5 GHz
Distance-To-Fault (DTF)
Resolution Bandwidth (RBW) 1 Hz .. 3 MHz
Real-Time Bandwidth 25 MHz (40 MHz optional)
100% POI 7.2 µs
Displayed Average Noise Level (DANL) -165 dBm/Hz
Phase Noise < -98 dBc/Hz
Amplitude Precision < 0.7 dB
Multi-Touchscreen
Web Interface
SSA3032X-R SSA3050X-R SSA3075X-R
Screen 10.1" TFT, 1024x600 Pixel
Input Device Support Maus, Tastatur
Interfaces LAN, USB Device, USB-Host, USB-GPIB optional
Spurious Free Dynamic Range (SFDR) 60 dB
Third-Order Intercept (TOI) +14 dBm
RTSA Measurement
Advanced Measurement
(AMK Option)
CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor
Analog Modulation Analysis
(AMA Option)
AM, FM
Digital Modulation Analysis
(WDMA Option)
ASK, FSK, MSK, PSK, QAM
Reflection Measurement
(Refl Option)
VSWR measurement using reflection bridge
EMI Measurement
(EMI Option)
EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line

Features

Real Time Analysis Mode
Density, 3D, Spectrogram and PvT views are available. Multiple views and dimensions allow to monitor complex signals with ease.
Vector Network Analyzer Mode (VNA)
The vector network analysis comes as standard and allows the measurement of S11 and S21 parameters. Several views including Smith chart are supported.
Distance To Fault Mode (DTF)
Test cables and antennas with the integrated Distance To Fault mode using time-domain analysis.
Frequency Mark Trigger (FMT)
With help of the Frequency Mark Trigger (FMT), you can set different trigger power levels on individual frequencies. This enables triggering on a small signal in the presence of a big signal, which is extremely useful when analyzing intermittent, interfering, pulse and frequency hopping signals.
Density View
The Density view shows the frequency on the horizontal axis, the amplitude on the vertical axis and the probability consistent with the color. It is also called Histogram Persistence or Persistence Spectrum and very useful for analysis of time varying signals and signals with large dynamic range.
3D Spectrogram
The 3D spectrogram shows continuous spectra over time, using different colors to represent the spectral level. It is useful for analyzing time variant signals, such as the transient oscillation of a VCO or frequency hopping signals like radar and EW. The SSA3000X-R can save up to 50,000 traces in the history for playback.
Modulation Analysis Mode (AMA/WDMA Option)
Vector signal modulation analysis for analog (AM/FM) and digital (ASK/FSK/PSK/MSK/QAM) signals with the full RTSA bandwidth of 25 MHz (40 MHz optional). Supports Error Vector Magnitude (EVM) evaluation as well as data recording to the computer and recorded data playback together with a Siglent SSG5000X HF signal generator.
EMI Measurement Mode (EMI Option)
Extensive EMI pre-compliance measurements with CISPR 16-1-1 EMI filter and built-in CISPR band A/B/C/D presets for easy comparison with regulatory emission limits. Supports Peak, Quasi-Peak and EMI Average detectors and multiple pre-stored standards. Bar graphs and continuous signal monitoring allow for quick detection of the maximum amplitude.
Large Multi-Touch Screen
A 10.1" high-resolution screen with multi-touch functionality ensures easy and efficient operation. Mouse and keyboard connection is possible via USB.
1 Hz Minimum Resolution Bandwidth
The minimal resolution bandwidth (RBW) of 1 Hz makes it easy to clearly observe and separate signals with minimal frequency differences.
Super-Low Displayed Average Noise Level
The SSA3000X-R series is designed around a low noise, high-performance RF front-end which offers low background noise (DANL) and a standard built-in preamplifier. The device's high sensitivity improves weak signal monitoring.
Outstanding Phase Noise Performance
The excellent phase noise of < -98 dBc/Hz (fc = 1 GHz, @10 kHz) enables users to evaluate most synthesizers and signal generators.
Advanced Power Measurement (AMK Option)
Directly display ACPR, Channel Power, Occupied Bandwidth and Time-Domain Power.
Spectrum Monitor (AMK Option)
Observe the power distribution of the signal through the color temperature of the spectrogram. The color temperature indicates the power of the distributed frequency.
Browser Remote Control
Remotely monitor and control your SSA3000X-R over the network with a web browser.
EasySpectrum PC Software
Pre-program multiple scan events into one report. Easily configure limit lines, correction tables and quickly find peaks.
