TekBox TBAS2 RF Attenuator/Terminator Kit, SMA, 1W
Description

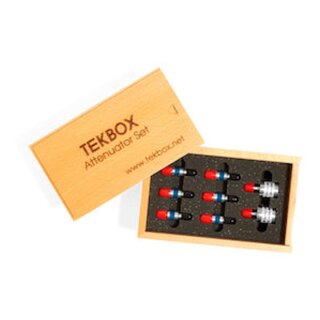

The TBAS2 RF attenuator set consists of a 3dB, 6dB, 10dB, 15dB, 20dB and 20dB attenuator in a beech wood box. Furthermore it contains two pieces SMA 50 Ohm terminations.
SPECIFICATIONS
-
Attenuators: 3, 6, 10, 15 dB +/- 0.5 dB
20, 30 dB +/- 0.8 dB - Frequency Range: DC - 6GHz, VSWR <1.3
- Power rating: 2W @ -55 to 70°C; up to 125°C with 50% power de-rating
-
Connectors: SMA-male/SMA-female; bidirectional
- Termination: 50 Ohm
- Frequency Range: DC - 6GHz, VSWR <1.2
- Power rating: 1W @ -40 to 70°C; up to 70°C with 50% power de-rating
- Connectors: SMA-male
- Dimensions: 150mm x 95mm x 45mm
- Weight: 490g
| Shipping weight: | 0.35 Kg |
