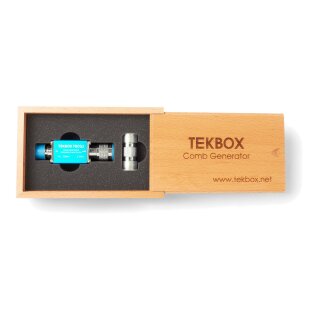

TekBox TBCG2 Comb Generator/Frequency Multiplier
Artno.: TB6-120000
Comb Generator/Frequency Multiplier

119.00 € incl. 19% VAT
100.00 € excl. VAT
On stock

Shipping time: 1 - 3 business days

Description

The TBCG2 is a passive, step recovery diode based comb generator / frequency multiplier. It is optimized for moderate drive power and spectrum flatness in the frequency range 1 MHz to 2.5GHz.

The recommended drive power is +10 dBm to +20 dBm

The frequency range for the drive signal is 1 MHz to 350MHz

Specifications

  • Input Power: +10 dBm to +20 dBm; 25 dBm max
  • Input Frequency: 1 MHz to 350 MHz
  • Comb spectrum: 1 MHz - 2.5 HGz
  • Input connector: N female
  • Output connector: N male
  • Dimensions: 81 mm x 26 mm x 26 mm
  • Weight: 96 g

Shipping weight: 0.35 Kg
