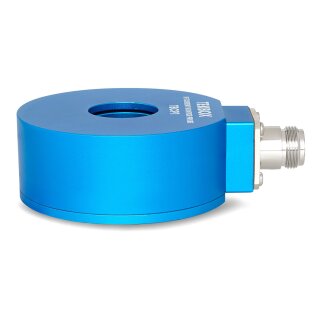

TekBox TBCP1-250 Current Monitoring Probe with fixed aperture 25mm
Artno.: TB1-210250
25 mm Fixed Aperture RF Current Monitoring Probes, up to 200, 250 or 500 MHz

379.00 € incl. 19% VAT
318.49 € excl. VAT
Orderable

Shipping time: 21 - 23 business days

Description

The TBCP1-200 is a fixed aperture RF current monitoring probe.
The probe has a 3dB bandwidth of approximately 200 MHz. The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance is > 14 dB Ohm in the range from 40 kHz to 200 MHz.

The TBCP1-250 is a fixed aperture RF current monitoring probe.
The probe has a very flat response with a 3dB bandwidth of 250 MHz and is characterized and usable over the frequency range from 30kHz to 250 MHz. The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance is > 16 dB Ohm in the range from 300 kHz to 250 MHz.

The TBCP1-500 is a fixed aperture RF current monitoring probe
The probe has a very flat response with a 3dB bandwidth of 500 MHz and is characterized and usable over the frequency range from 30kHz to 500 MHz. The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance is > 15 dB Ohm in the range from 300 kHz to 500 MHz.

Tekbox supplies a calibration fixture corresponding with the TBCP1 current probe series.

SPECIFICATION

TBCP1-200

  • Characterized frequency range: 10 kHz to 200 MHz
  • Aperture diameter: 25 mm
  • Outside diameter: 76 mm
  • Height: 31 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 3 to 17 dBΩ
  • Max. primary current (DC ? 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C

TBCP1-250

  • Characterized frequency range: 30 kHz to 250 MHz
  • Aperture diameter: 25 mm
  • Outside diameter: 76 mm
  • Height: 31 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 0 to 18 dBΩ
  • Max. primary current (DC ? 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C

TBCP1-500

  • Characterized frequency range: 30 kHz to 500 MHz
  • Aperture diameter: 25 mm
  • Outside diameter: 76 mm
  • Height: 31 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: -6 to 20 dBΩ
  • Max. primary current (DC ? 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C
