TekBox TBMA3 LogPer Antenna 250 .. 1300 MHz
Artno.: TB2-130000
Log Periodic Antenna

1,619.00 € incl. 19% VAT
1,360.50 € excl. VAT
Orderable

Shipping time: 21 - 23 business days

Description

The TBMA3 is an affordable logarithmic periodic measurement antenna, targeting radiated noise EMC pre- compliance testing.

The TBMA3 is characterized from 250 MHz to 1.3 GHz and has VSWR and antenna factor values typical for log-periodic measurement antennas.

CISPR 16 divides the frequency range into several bands and defines specific antennas for each of these bands. For the frequency range above 300 MHz up to 1 GHz, CISPR 16 specifies using logarithmic periodic antennas (log-periodic antennas ) for radiated noise measurements.

The TBMA3 is an average sized log-periodic antenna, with its radiating elements and supporting booms made from powder coated aluminum alloy. It is equipped with a standard female N-connector and comes together with an antenna bracket and a mounting adapter. A standard ¼? thread on the bottom of the mounting adapter makes it easy to connect it to most standard tripods.

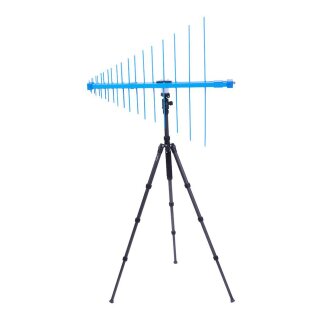

The TBMDA3 is shipped in a robust carrying case, as pictured above.

SPECIFICATION

  • Type: logarithmic periodic
  • Frequency range: 250 MHz? 1300 MHz
  • Nominal impedance: 50 Ω
  • Connector: N type female
  • Maximum continuous input RF power: 100 W
  • Isotropic gain: 6 dBi ± 1.5 dB
  • Antenna factor: 14.2 … 27.5 dB/m
  • Voltage Standing Wave Ratio (VSWR): < 1.95:1 over the entire frequency range ; 1.35:1 average
  • Width: 749 mm (29.49?)
  • Height (With the mounting adapter): 170.23 mm (6.70?)
  • Height (Without the mounting adapter): 79.5 mm (3.13?)
  • Depth: 863 mm (33.98?)
  • Weight: 1.78 kg (3.92 lbs)
  • Tripod Adapter Thread Size: ¼?
