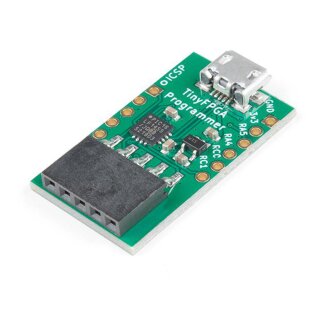

TinyFPGA Programmer
Artno.: 403121
Programmer for TinyFPGA AX1/AX2 boards

13.90 € incl. 19% VAT
11.68 € excl. VAT
Orderable

Shipping time: 15 - 17 business days

Description

One of the goals of the TinyFPGA boards is to make FPGAs cheaper to use. The TinyFPGA AX1 and TinyFPGA AX2 boards are the first TinyFPGA boards and are designed to be the least expensive. As such, they do not include a built-in USB interface as that would increase the cost and complexity too much. Instead they rely on JTAG programmers.

Here comes the TinyFPGA Programmer. Rather than an FTDI2232 USB interface chip it uses a PIC16F1455 USB microcontroller. While not compatible with the FTDI2232 chip, the PIC micro has a much lower BOM cost allowing the programmer hardware to be cheaper.

The TinyFPGA Programmer slots onto the JTAG pins of the A-series FPGA boards. Using the TinyFPGA Programmer Application you can program .jed files generated by Lattice Diamond.

For more information on how to use the TinyFPGA Programmer with the A-series boards, see the A-Series Userguide at TinyFPGA.com.


Shipping weight: 0.10 Kg
