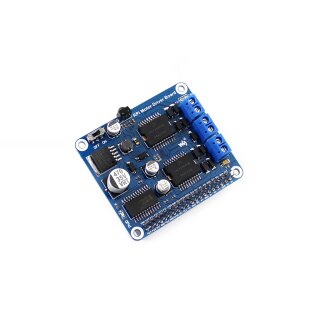

Waveshare 11820 RPi Motor Driver Board
Artno.: WS1-011820
Raspberry Pi Expansion Board, Power Relay

28.90 € incl. 19% VAT
24.29 € excl. VAT
On stock

Shipping time: 1 - 3 business days

Description

The RPi Motor Driver Board gives your Pi the ability to drive two DC motors OR one stepper motor. It's an ideal choice to DIY mobile robot based on Raspberry Pi.

Features

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Freescale H-bridge driver MC33886, controls DC motors to turn in both directions
  • Onboard 5V regulator, provides power to Raspberry Pi
  • Onboard IR receiver, used for remote control robot
  • Multi protection circuit, excellent stability
    • 2A self-recovery fuse, keep your Pi safe
    • Driver chip features Short-Circuit Shutdown for Large Output Current, Undervoltage Disable Function
    • Reversed polarity protection for motor output
    • Anti-reverse diode for power supply
  • Power input range: 7V~40V
  • Single motor output current: up to 5A
  • Power supply current for Raspberry Pi: up to 2A

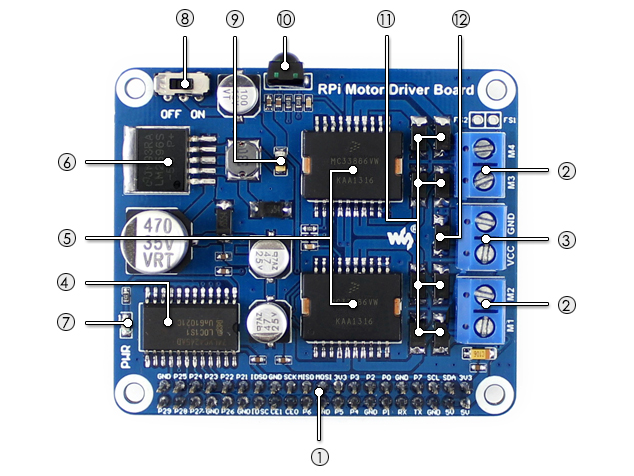

What's on Board

Raspberry Pi Expansion Board on board resource
  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. Motor screw terminal: for connecting motors
  3. External power input
  4. 74LVC4245AD: voltage level conversion chip, buffer device
  5. MC33886: motor driver chip
  6. LM2596-5.0: 5V regulator
  7. Power indicator
  8. Raspberry Pi power selection
  • OFF: Raspberry Pi powers the Motor Driver Board
  • ON: Motor Driver Board powers the Raspberry Pi
  • 2A self-recovery fuse
  • IR receiver
  • Schottky diodes: protects the motor driver
  • Power supply anti-reverse diode
  • Photos

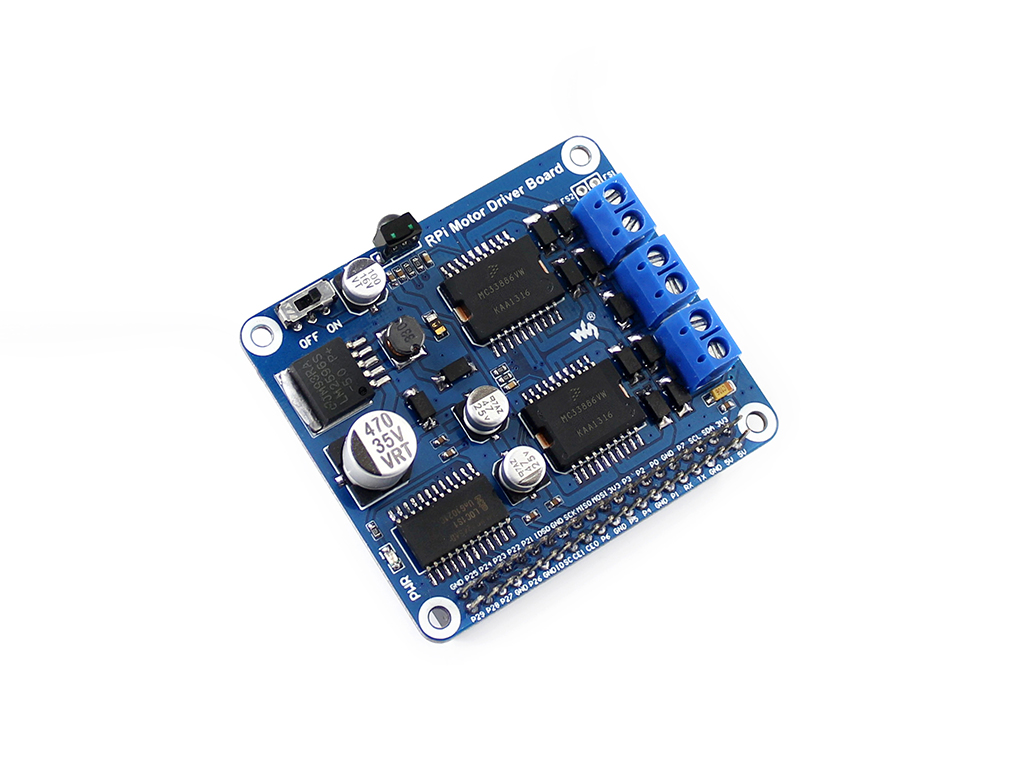

    Raspberry Pi Expansion Board RPi Motor Driver Board

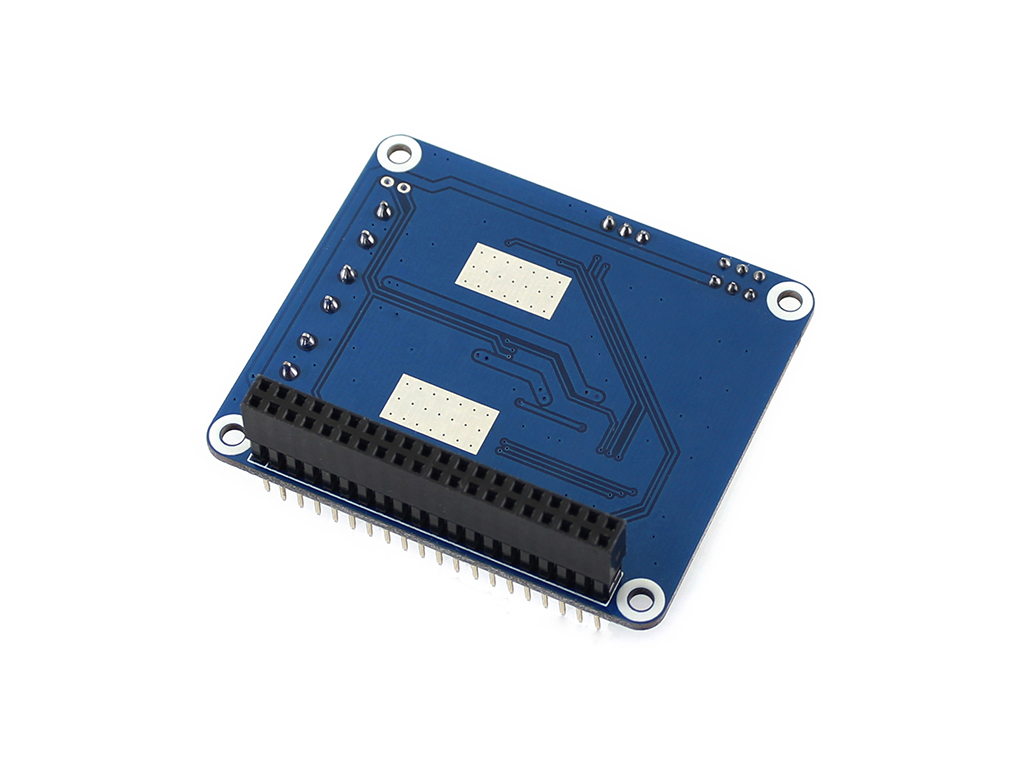

    Raspberry Pi Expansion Board RPi Motor Driver Board back view

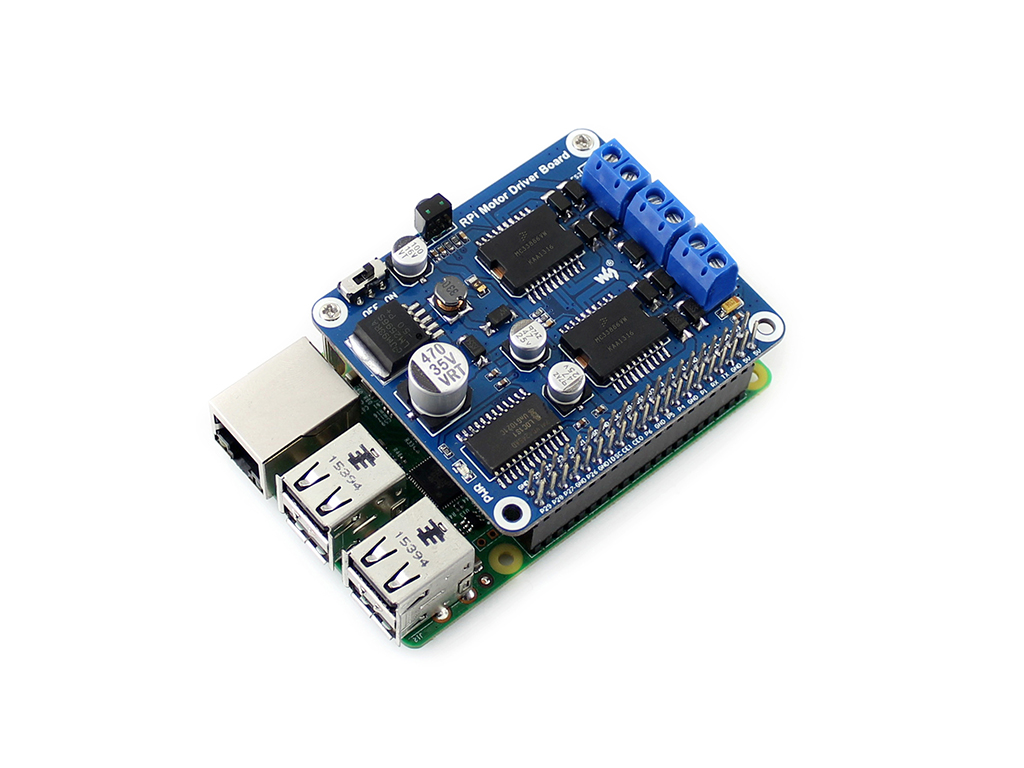

    Raspberry Pi Expansion Board RPi Motor Driver Board connecting with Raspberry Pi

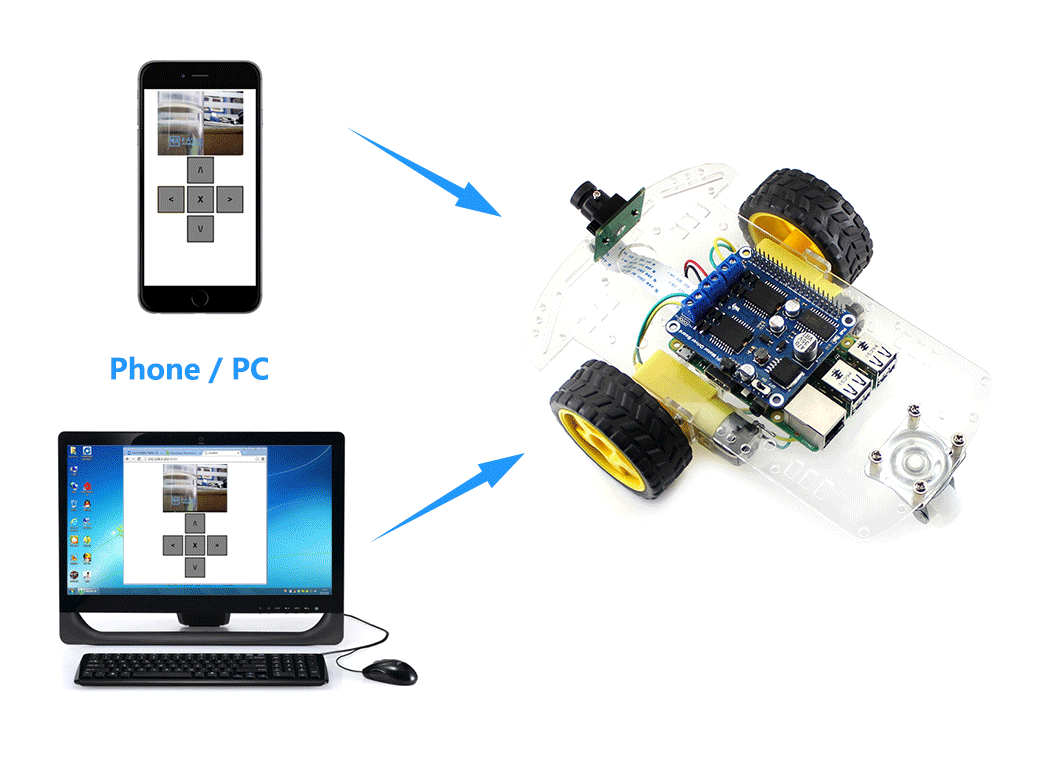

    Raspberry Pi Expansion Board Control the mobile robot remotely

    Note: photos are FOR REFERENCE ONLY, the other boards/modules/accessories are NOT included in the price.

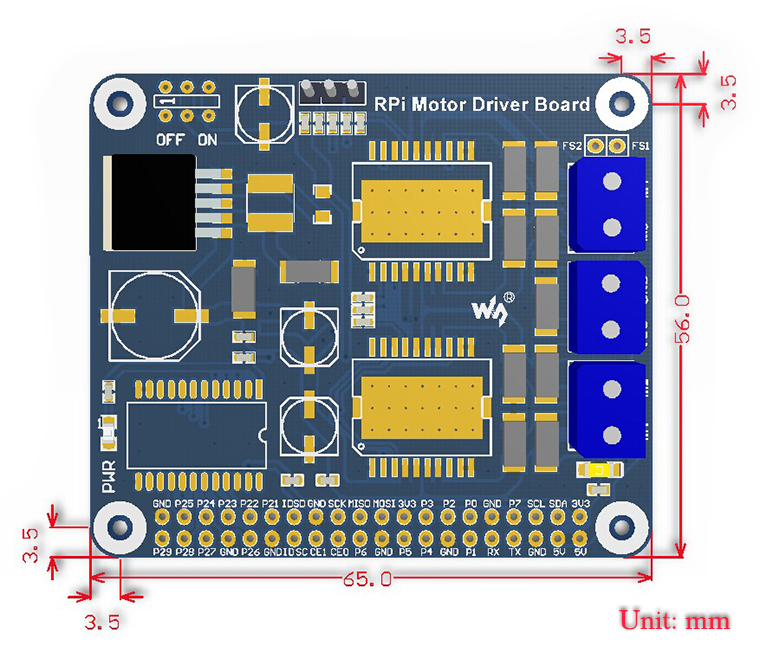

    Dimensions

    RPi Relay Board board dimensions

    Development Resources

    Wiki : www.waveshare.com/wiki/RPi_Motor_Driver_Board

    Package Contents

    1. RPi Motor Driver Board x 1
    2. RPi screws pack (2pcs) x 1
    1
    2

    Shipping weight: 0.04 Kg
