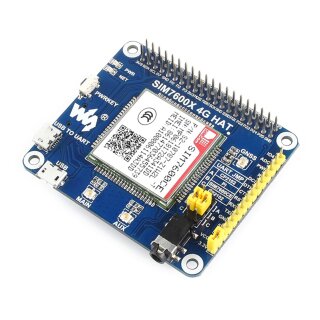

Waveshare 14895 SIM7600CE 4G HAT
Artno.: WS1-014895
SIM7600CE 4G HAT For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, For China

69.90 € incl. 19% VAT
58.74 € excl. VAT
Out of stock

Description

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

For different regions, we provide multiple LTE Cat-4/Cat-1 HATs to choose from:

SIM7600A-H 4G HAT LTE Cat-4 mainly applicable in North America (US, CA)
SIM7600E-H 4G HAT LTE Cat-4 mainly applicable in Europe, Southeast Asia, West Asia, Africa, China, South Korea
SIM7600E LTE Cat-1 HAT LTE Cat-1
A7670E Cat-1 HAT
A7600E Cat-1/GSM/GPRS HAT
SIM7600SA-H 4G HAT LTE Cat-4 mainly applicable in Australia, New Zealand, Taiwan, Latin America
SIM7600CE 4G HAT LTE Cat-4 mainly applicable in China, and some Southeast Asia countries
SIM7600CE-CNSE 4G HAT
A7600C1 Cat-1/GSM/GPRS HAT LTE Cat-1
SIM7600G-H 4G HAT LTE Cat-4 the global version

Please check the supported bands according to your local service provider, select the proper one when placing order.

4G HAT for Raspberry Pi

enabling LTE Cat-4 4G / 3G / 2G communication & GNSS positioning

Based on SIM7600CE-T

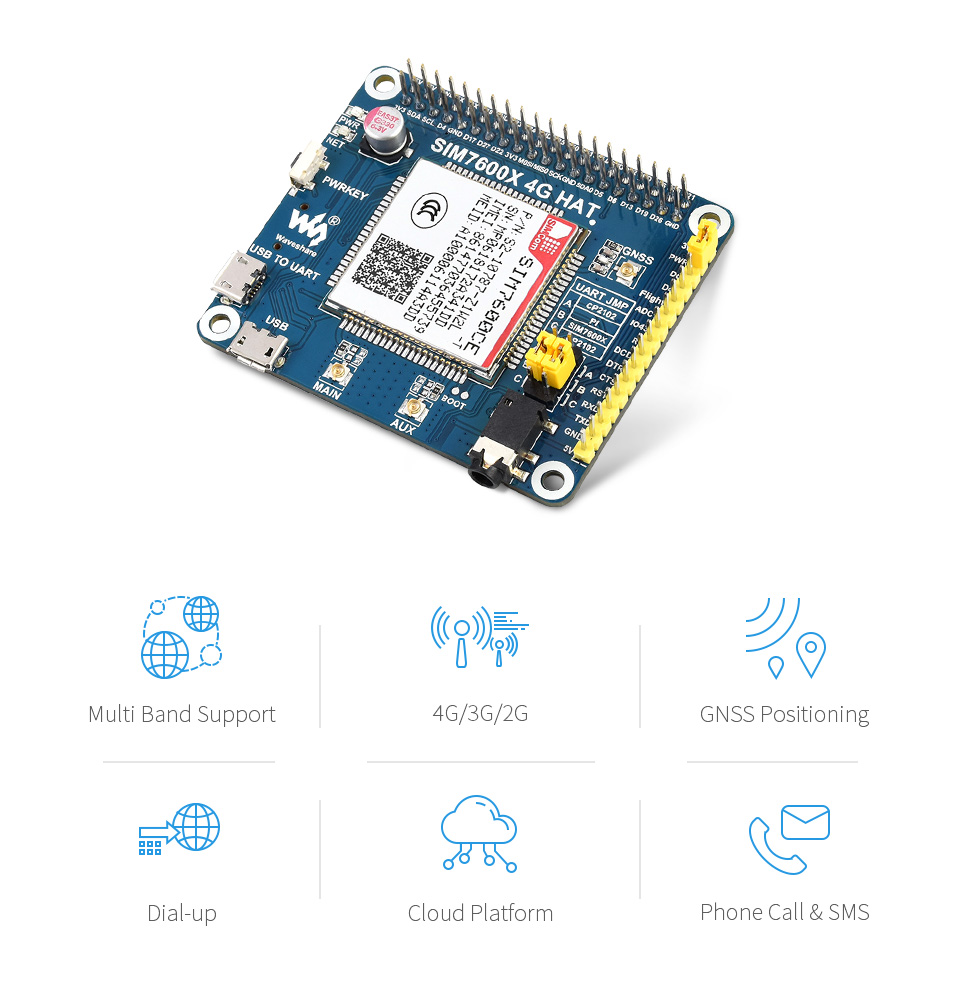

Features at a glance

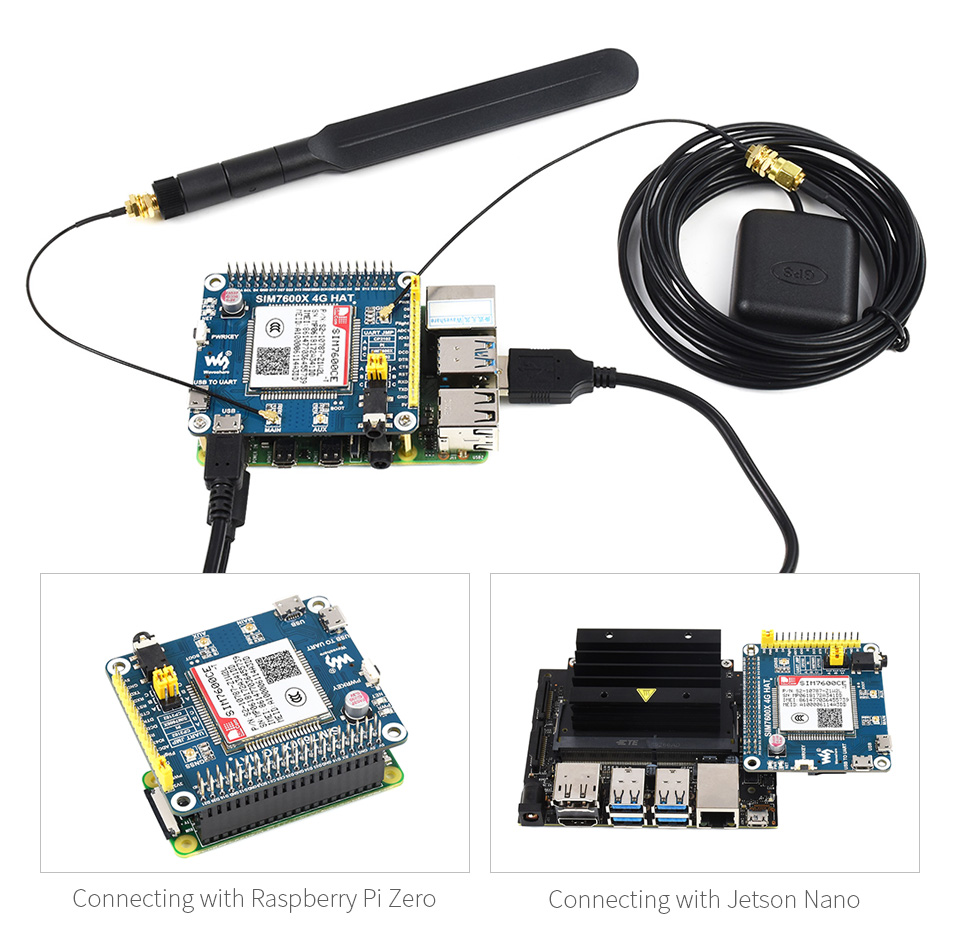

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

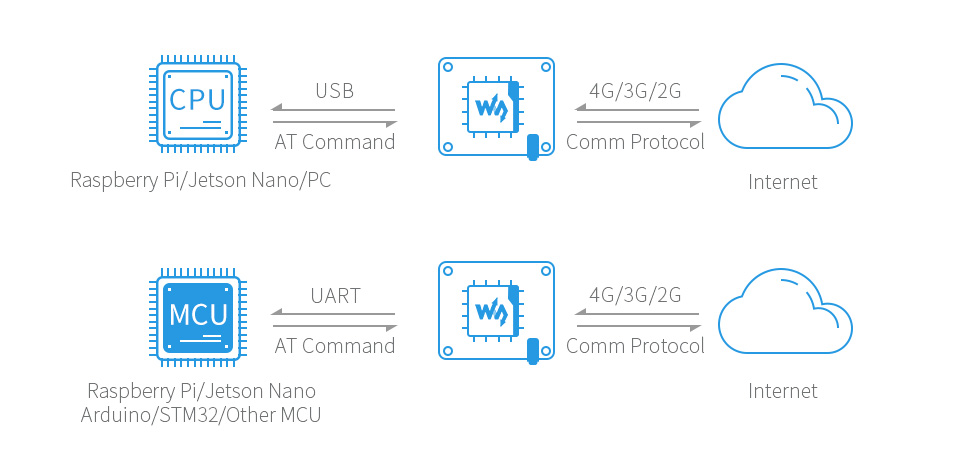

  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, LBS base station positioning
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Onboard CP2102 USB to UART converter, for serial debugging
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • TF card slot for storing data like files, messages, etc.
  • Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the operating status
  • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Frequency band
LTE Cat-4 LTE-FDD: B1/B3/B5/B8 LTE-TDD: B38/B39/B40/B41
3G UMTS/HSDPA/HSPA+: B1/B8
2G GSM/GPRS/EDGE: 900/1800 MHz
GNSS
Satellite systems GPS/Beidou/GLONASS
Receiver type 16-channel
C/A Code
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
SMS and Audio
SMS Supported types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
Audio feature Supports echo cancellation
Supports noise reduction
Other
Power supply 5V
Operating voltage 5V / 3.3V (configured via jumper)
Operating temperature -30°C ~ 80°C
Storage temperature -45°C ~ 90°C
Dimensions 56.0 × 65.0mm

Standard Raspberry Pi 40PIN GPIO

Compatible with Raspberry Pi series boards, Jetson Nano

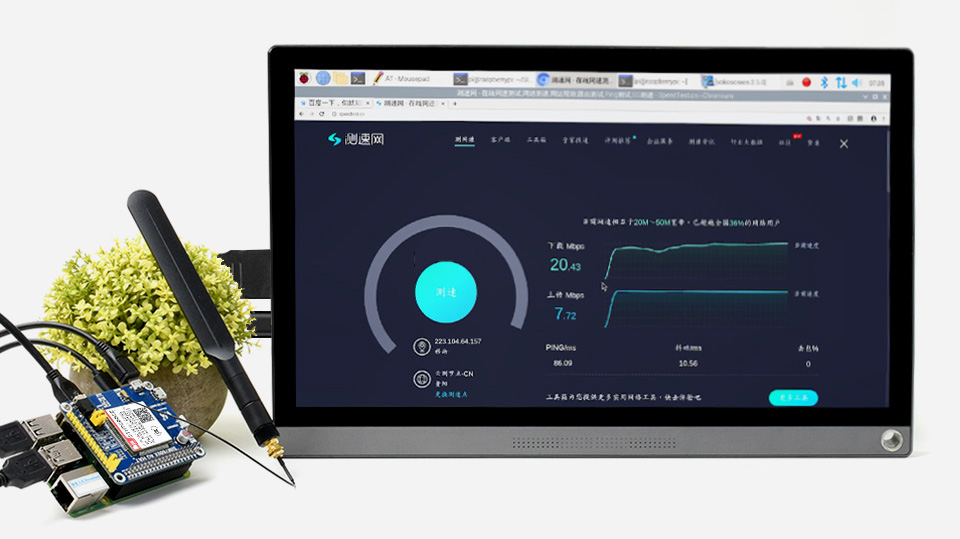

Dial-up on Windows/Linux

LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink) *3G (HSPA+): up to 5.76Mbps (uplink) / up to 42Mbps (downlink) *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

Supports communication protocols including TCP/UDP/FTP/FTPS/HTTP/HTTPS

GNSS positioning

Supports GPS, BeiDou, Glonass, LBS base station positioning

Telephoto call & SMS Support

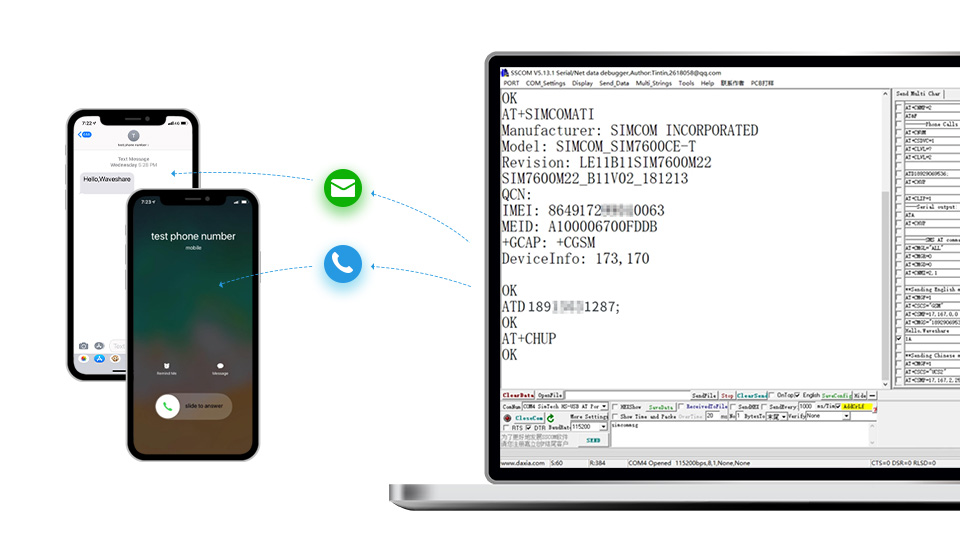

Making telephoto call or sending SMS by AT commands, with onboard audio jack

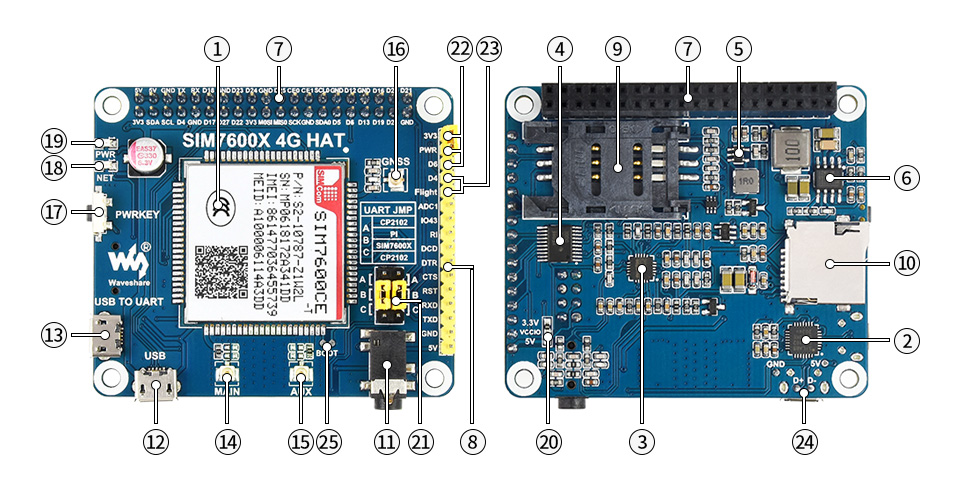

What's on board

  1. SIM7600CE-T
  2. CP2102 USB to UART converter
  3. NAU8810 audio decoder
  4. TXS0108EPWR voltage translator translates 3.3V/5V into 1.8V
  5. MP2128DT power chip
  6. MP1482 power chip
  7. Raspberry Pi GPIO header
  8. SIM7600 control interface for connecting with host boards like Arduino/STM32
  9. SIM card slot supports 1.8V/3V SIM card
  10. TF card slot allows data storage like files, messages, etc.
  11. 3.5mm earphone/mic jack
  12. USB interface for testing AT Commands, getting GPS positioning data, etc.
  13. USB to UART interface for serial debugging, or login to Raspberry Pi
  1. MAIN antenna connector
  2. AUX antenna connector
  3. GNSS antenna connector
  4. Power switch
  5. Network status indicator
  6. Power indicator
  7. Operating voltage selection jumper configured via 0O resistor jumperVCCIO - 3.3V: set operating voltage as 3.3V VCCIO - 5V: set operating voltage as 5V
  8. UART selection jumper A: access Raspberry Pi via USB to UARTB: control the SIM7600 by Raspberry PiC: control the SIM7600 via USB to UART
  9. PWR configuration jumper PWR - 3V3: auto startup on power-up (default) PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
  10. Flight mode configuration jumper NC by default, no flight mode control pin Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin
  11. USB connector solder pads
  12. BOOT forced programming solder pads

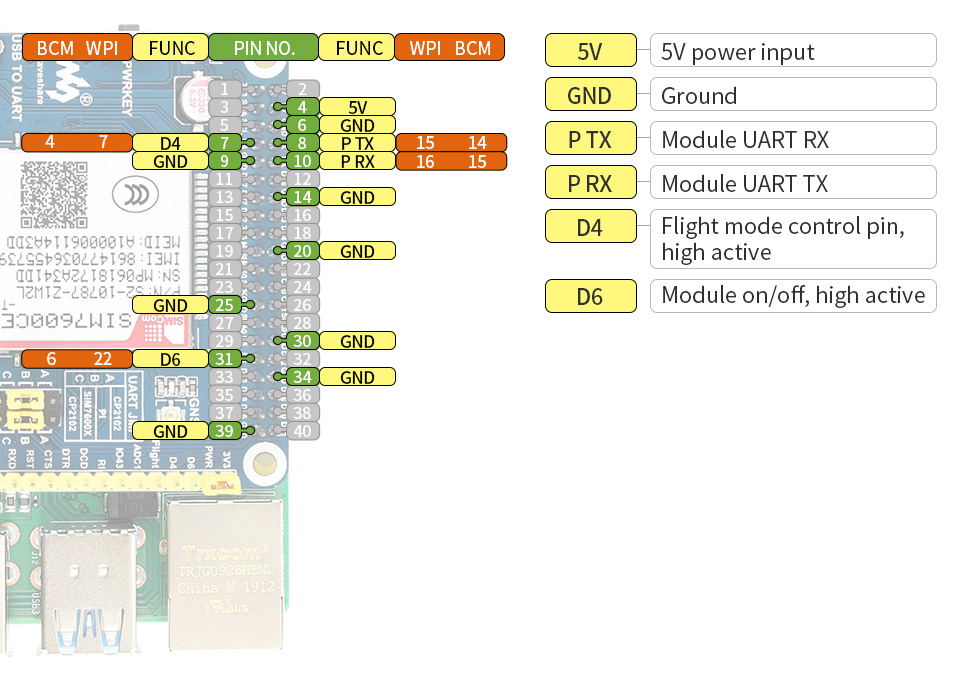

Pinout definition

Outline Dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

SIM7600CE-CNSE SIM7600CE-T SIM7600E-H SIM7600A-H SIM7600G-H
Applicable regions China Europe/Southeast Asia/West Asia/Africa/China/South Korea North America Global
Band
LTE Cat-4 LTE-FDD B1/B3/B5/B8 LTE-TDD B38/B39/B40/B41 LTE-FDD B1/B3/B5/B7/B8/B20 LTE-TDD B38/B40/B41 LTE-FDD B2/B4/B12 LTE-FDD B1/B2/B3/B4/B5/B7 /B8/B12/B13/B18/B19 /B20/B25/B26/B28/B66 LTE-TDD B34/B38 /B39/B40/B41
3G UMTS/HSDPA/HSPA+ B1/B8 TD-SCDMA B34/B39 UMTS/HSPA+ B1/B5/B8 UMTS/HSPA+ B2/B5 UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19
2G GSM/GPRS/EDGE 900/1800 MHz N/A GSM/GPRS/EDGE 850/900/1800/1900MHz
GNSS N/A GPS/Beidou/GLONASS
Data Rate
LTE Cat-4 150Mbps(DL)/50Mbps(UL)
3G (HSPA+) 42Mbps(DL)/5.76Mbps(UL)
2G (EDGE) 236.8Kbps(DL/UL) N/A 236.8Kbps(DL/UL)
2G (GPRS) 85.6Kbps(DL/UL) N/A 85.6Kbps(DL/UL)
Software Features
Network protocol TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Dial-up protocol PPP/NDIS/RNDIS
USB driver Windows XP/7/8/10, Linux (driver free for Raspbian)
Hardware Interfaces
SIM card slot Compatible with 1.8V and 3V SIM card
UART Supports AT commands through UART, compatible with 3.3V/5V operating voltage
USB port Supports AT commands testing, network communication, firmware upgrading, etc.
USB to UART Supports serial debugging, or login to Raspberry Pi
Audio jack Supports audio actions like making telephoto call
TF card slot Yes, for storing data like files, messages, etc. N/A Yes
Antenna connector LTE main antenna LTE main antenna + LTE diversity antenna + GNSS antenna
Applications
Examples Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc.

Package Contents

  1. SIM7600CE 4G HAT x1
  2. LTE Antenna x1
  3. GPS External Antenna (B) x1
  4. USB type A plug to micro plug cable x2
  5. RPi screws pack (2pcs) x1
1
2
3
4
5

Shipping weight: 0.18 Kg
