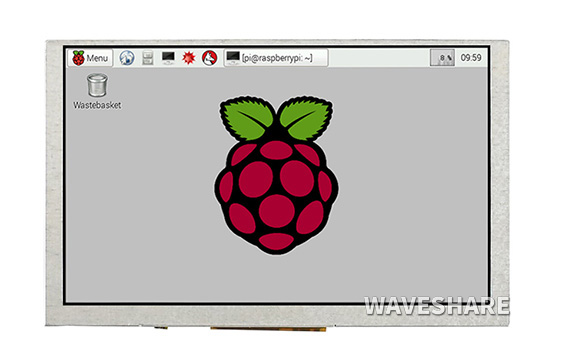

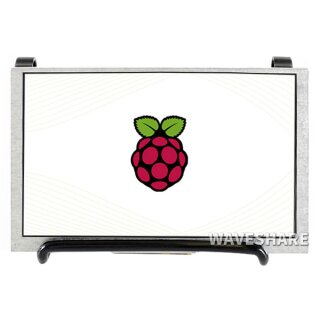

Waveshare 16381 5inch DPI LCD
Artno.: WS3-016381
5inch Display for Raspberry Pi, 800×480, DPI Interface, IPS, No Touch

31.90 € incl. 19% VAT
26.81 € excl. VAT
10+ On stock

Shipping time: 1 - 3 business days

Description

5" DPI Display

  • Size5"
  • Resolution800×480
  • Display PortDPI
  • Display PanelIPS

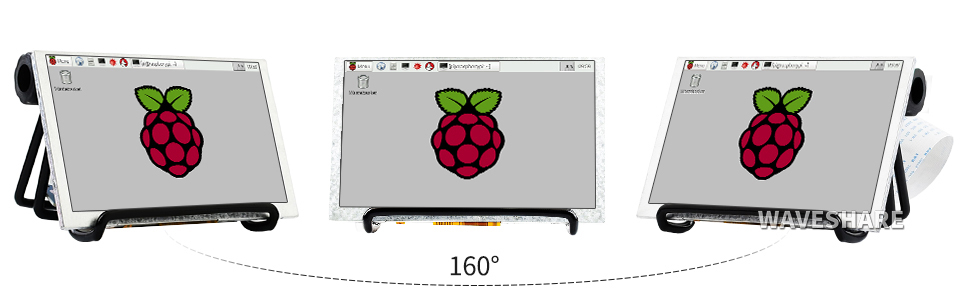

  • Viewing Angle160°
  • ConsumptionLow Power

Device & System Support

Raspberry Pi
Based on Raspberry Pi 40PIN GPIO header Driven by Raspberry Pi DPI interface, up to 60Hz refresh rate Supports systems like Raspbian, Ubuntu MATE*, OSMC...

Supports future version which is backward compatible

* Ubuntu MATE on Pi 4B is not available now, until the official image is released

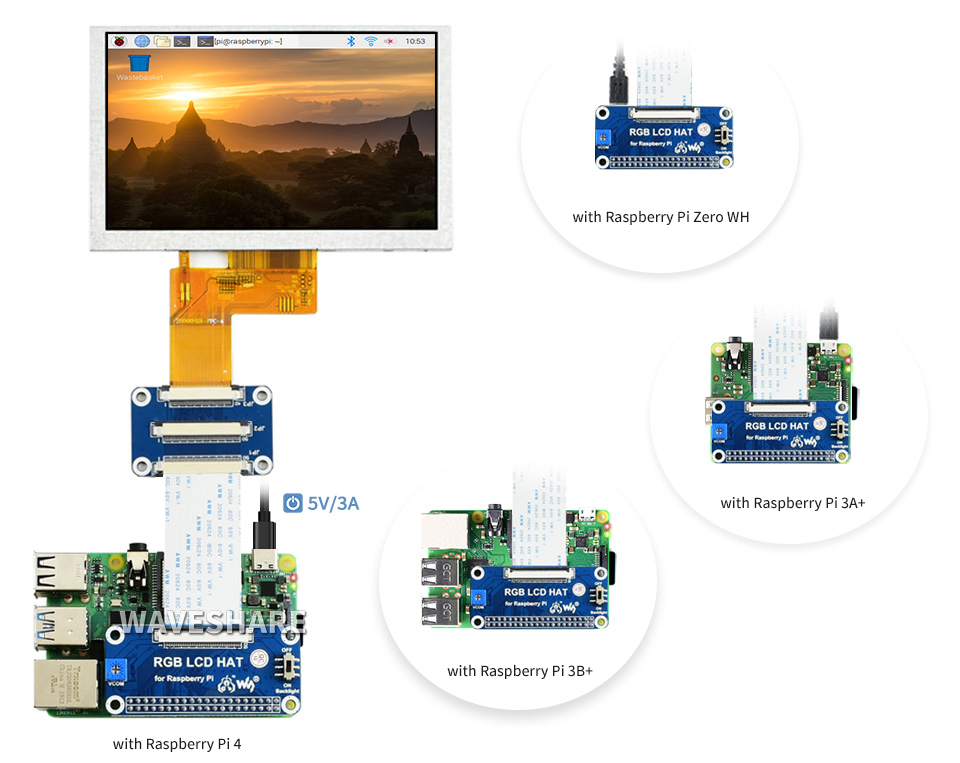

Connection Examples

Working with different versions of Raspberry Pi

Display

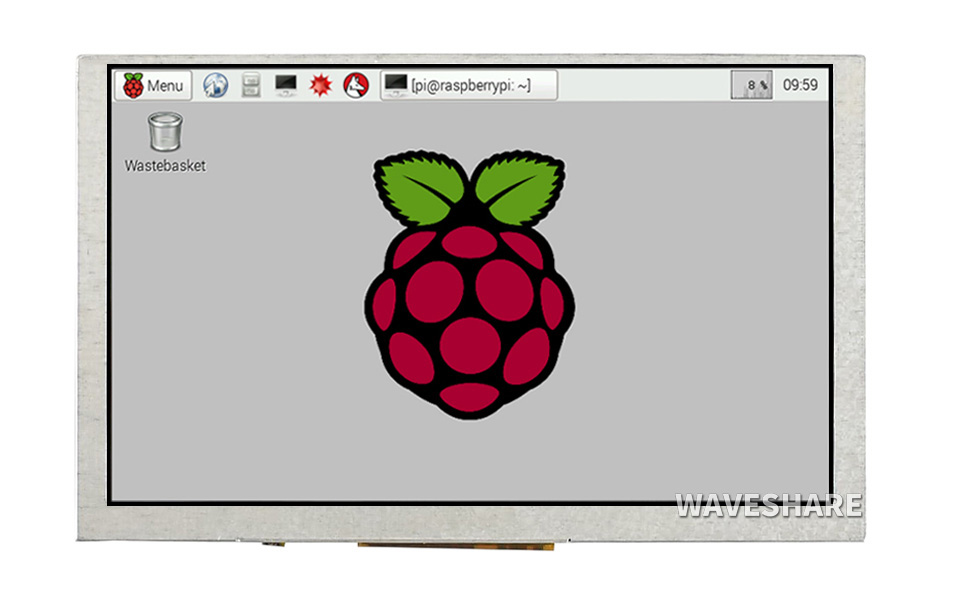

IPS Panel

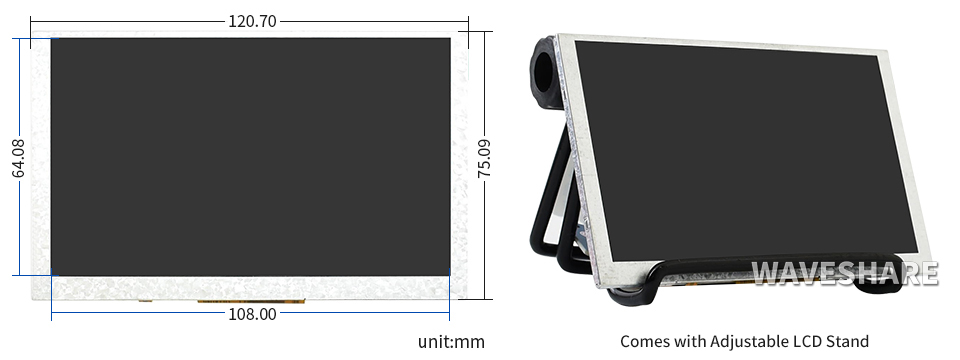

Appearance and Dimensions

Resources & Services

Over a decade: Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Selection Guide

PartNumber Display Touch Audio Device Support
Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Fully Laminated Spe-aker Signal Output Pi JETSON NANO PC
SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
3.2inch RPi LCD (C) 320×240 High-Speed SPI TFT Resistive SPI × × × × × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT Resistive SPI × × × × × ×
4inch RPi LCD (C) 480×320 High-Speed SPI TFT Resistive SPI × × × × × ×
DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C × × × ×
3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C × × × × ×
4inch DPI LCD (B) 480×800 DPI IPS 170° Capacitive I2C × × ×
4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C × × × ×
5inch DPI LCD 800×480 DPI IPS 160° × × × × × × × ×
7inch DPI LCD 1024×600 DPI IPS 170° × × × × × × × ×
DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: only 800×480 resolution is available currently, supports Raspberry Pi only.
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C × × × × ×
4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C × × × × ×
5inch DSI LCD 800×480 DSI TFT - Capacitive I2C × × × × ×
7inch DSI LCD 800×480 DSI TFT - Capacitive I2C × × × × ×
7inch DSI LCD (with case A) 800×480 DSI TFT - Capacitive I2C × × × × ×
HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly.
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × × Display ONLY
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × × Display ONLY
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × ×
5inch HDMI LCD 800×480 HDMI TFT Resistive SPI × × × × × ×
5inch HDMI LCD (with case) 800×480 HDMI TFT Resistive SPI × × × × × ×
5inch HDMI LCD (B) 800×480 HDMI TFT Resistive USB × × × × ×
5inch HDMI LCD (B) (with case) 800×480 HDMI TFT Resistive USB × × × × ×
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT Resistive USB × × × ×
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT Capacitive USB × ×
5inch HDMI LCD (H) V4 800×480 HDMI TFT Capacitive USB × × × ×
5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB × ×
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB × ×
5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB × × × ×
5.5inch HDMI AMOLED (with case B) 1080×1920 HDMI AMOLED 170° Capacitive USB × ×
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT Capacitive USB × × × × ×
7inch HDMI LCD (B) (with case) 800×480 HDMI TFT Capacitive USB × × × × ×
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × ×
7inch HDMI LCD (C) (with case) 1024×600 HDMI IPS 170° Capacitive USB × × × × ×
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × ×
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB × ×
7inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive USB
7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB × ×
9HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB × ×
10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB × ×
7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB × ×
9inch 2560x1600 Monitor 2560×1600 HDMI IPS 178° Capacitive USB
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × × Display ONLY
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT Capacitive USB × × × ×
10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB ×
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB × × × ×
11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB ×
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB
11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB × ×
12.5inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB ×
13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB × ×
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB ×
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB ×
15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB × ×
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB ×
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB ×

Have a look : RPi LCD Comparing

Package Contents

  1. 5inch 800×480 IPS LCD x1

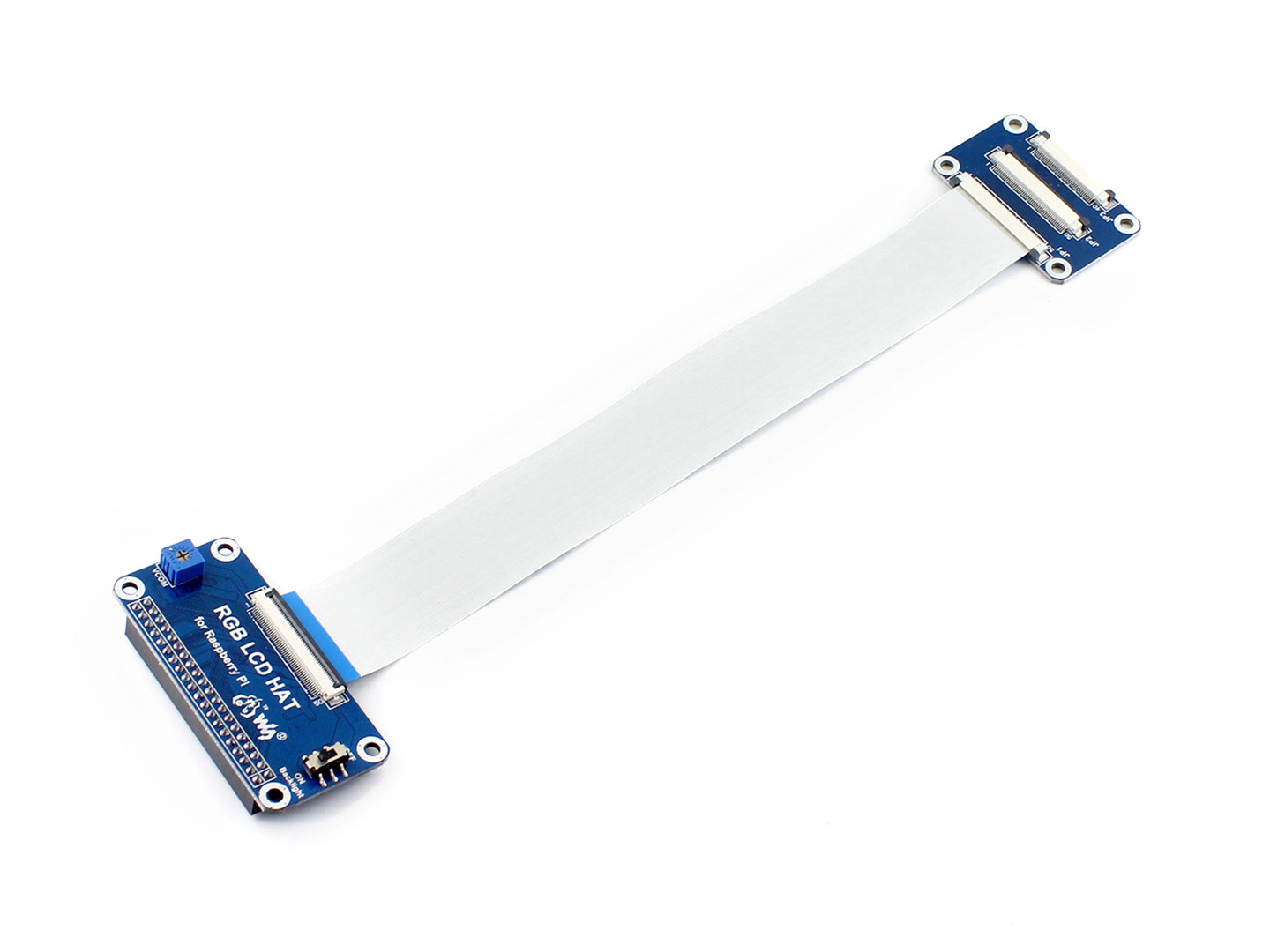

  2. RGB LCD HAT (B) x1

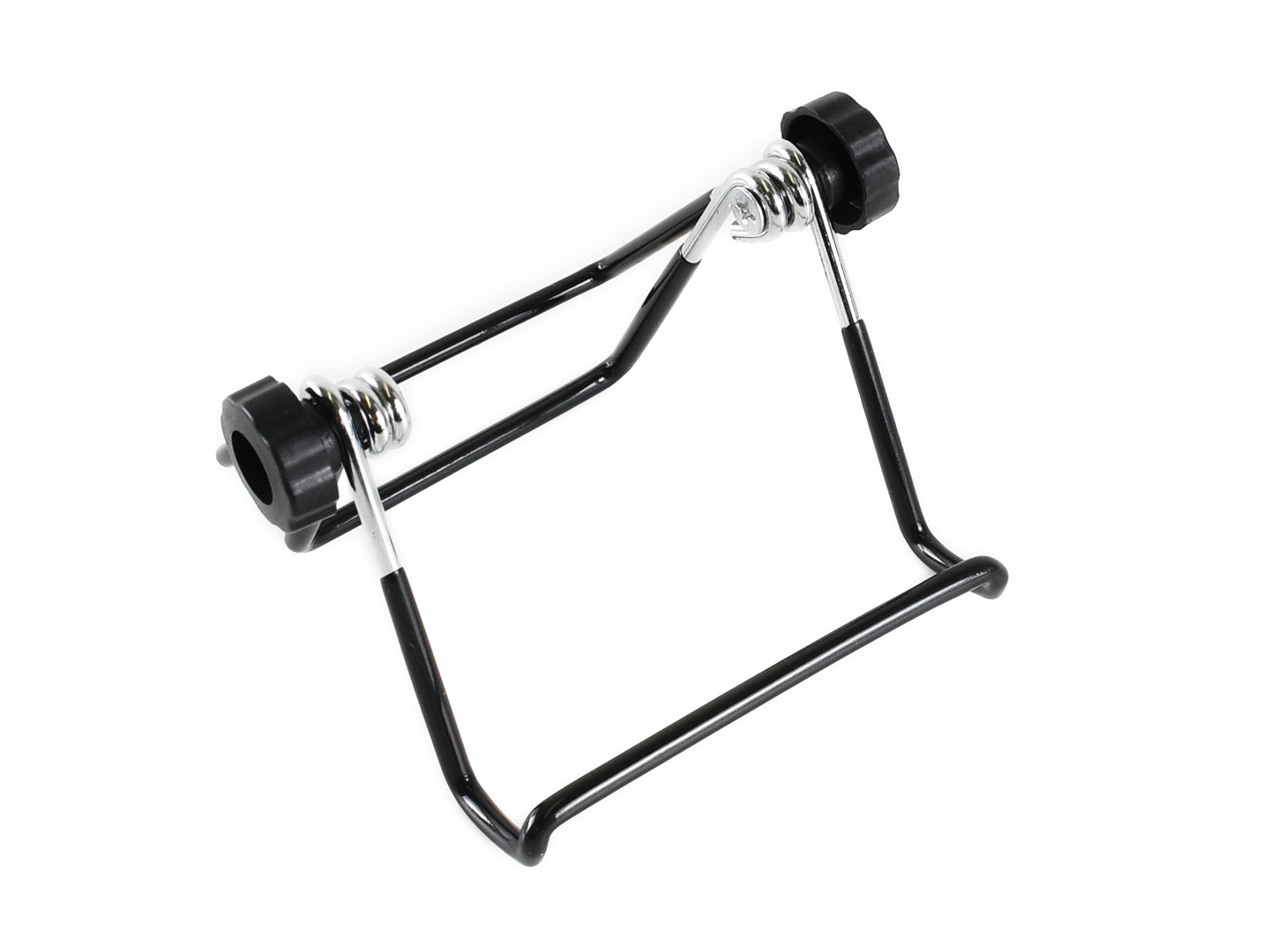

  3. LCD stand (small size) x1
  4. Quick start sheet x1
1
2
3
4

Shipping weight: 0.24 Kg
