Waveshare 17219 MLX90640-D110 Thermal Camera
Artno.: WS2-017219

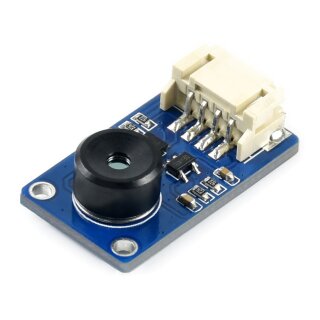

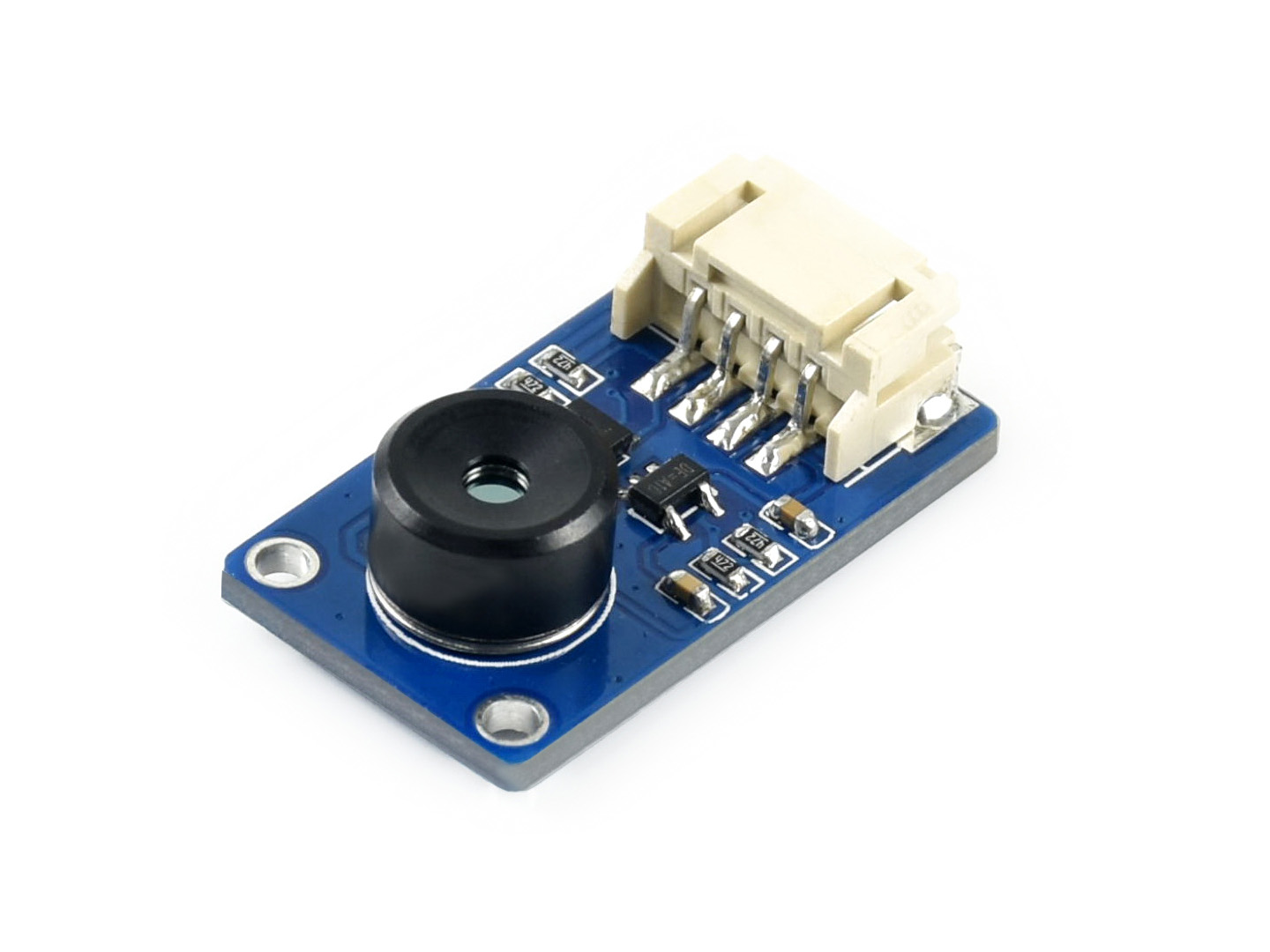

MLX90640 IR Array Thermal Imaging Camera, 32×24 Pixels, 110° Field of View, I2C Interface

96.90 € incl. 19% VAT
81.43 € excl. VAT
On stock (short supply)

Shipping time: 1 - 3 business days

Description

This is a 32×24 pixels, 110° field of view, IR array thermal imaging camera, communicating via I2C interface. It is compatible with 3.3V/5V operating voltage, supports host platforms such as Raspberry Pi/Arduino(ESP32)/STM32, etc.

By utilizing the MLX90640 far-infrared thermal sensor array, this module can detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images. Due to the small form factor, it can be easily integrated into miscellaneous industrial or intelligent control applications.

Features

  • Adopts MLX90640 far-infrared thermal sensor array, 32×24 pixels
  • Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate)
  • Noise Equivalent Temperature Difference (NETD) 0.1K RMS @1Hz refresh rate
  • Onboard voltage translator, compatible with 3.3V/5V operating voltage
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32)

Specifications

  • Operating voltage: 3.3V/5V
  • Operating current:
  • Communication interface: I2C (address 0x33)
  • Field of view (Horizontal×Vertical):
  • Operating temperature: -40?~85?
  • Target temperature: -40?~300?
  • Resolution: ±1?
  • Refresh rate: 0.5Hz~64Hz (programmable)
  • Dimensions: 28mm×16 mm
  • Mounting hole size: 2.0mm

Applications

  • High precision non-contact temperature measurements
  • IR thermal imaging devices, IR thermometers
  • Smart home, intelligent building, intelligent lighting
  • Industrial temperature control, security monitoring, intrude/movement detection

Pinouts

In the case of working with MCU:

  • VCC ? 3.3V / 5V
  • GND ? GND
  • SDA ? MCU.I2C data line
  • SCL ? MCU.I2C clock line

Example

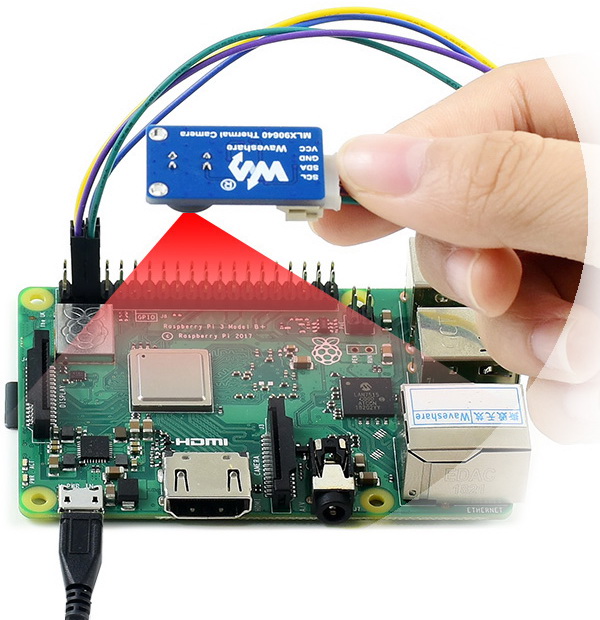

Generating IR thermal images of the Raspberry Pi:

MLX90640-D110 Thermal Camera application exampleMLX90640-D110 Thermal Camera application example

Dimensions

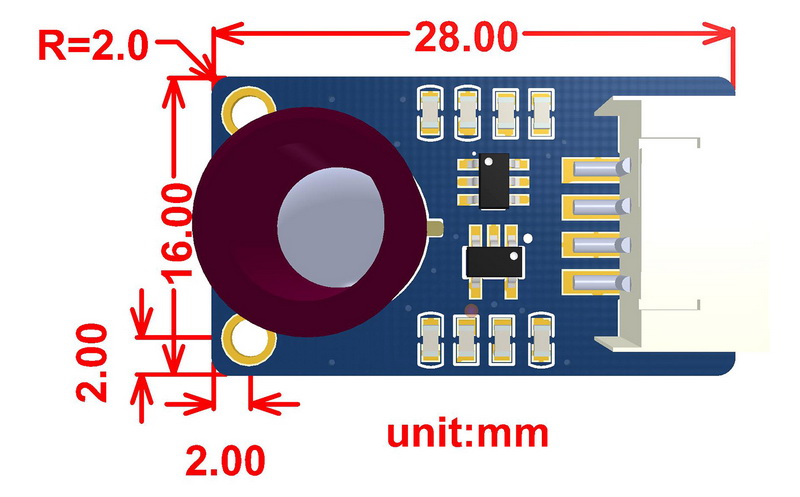

MLX90640-D110 Thermal Camera dimensions

Development Resources

Wiki: www.waveshare.com/wiki/MLX90640-D110_Thermal_Camera

Selection guide

MLX90640-D55 MLX90640-D110 MLX90641-D55 MLX90614ESF-BCC
Pixel array 32×24 16×12 1
Absolute accuracy ±2? (ambient temp. 0 ~ 50?) ±0.5? (ambient temp. 0 ~ 50?)
Target temp. range -40 ~ 300? -70 ~ 380?
Field of view (FOV) 55° × 35° 110° × 75° 55° × 35° 35°
Refresh rate 0.5~64Hz (0.25~32FPS) -
Operating temperature -40 ~ 85? -40 ~ 125? -40 ~ 85?
Current < 23mA ≈12mA < 2mA
Market orientation medium pixels, higher price low cost high precision

Package Contents

  1. MLX90640-D110 Thermal Camera x1
  2. PH2.0 4PIN wire x1
1
2

Shipping weight: 0.01 Kg
