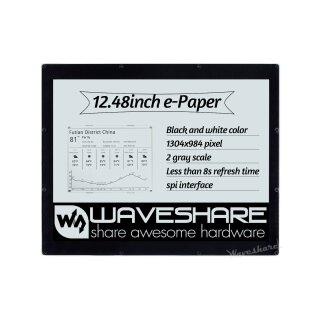

Waveshare 17300 12.48inch e-paper Module

Artno.: WS3-017300
1304×984, 12.48inch E-Ink display module, black/white dual-color, SPI interface
199.00 € incl. 19% VAT
167.23 € excl. VAT

Free shipping

Out of stock

Description

This is an E-Ink display module, 12.48inch, 1304×984 resolution, with embedded controller, communicating via SPI interface, supports black and white dual-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Arduino compatible header, allows directly plugging Arduino boards like UNO / UNO PLUS
  • ESP32 control header, allows directly plugging control boards like e-Paper ESP32 Driver Board / ESP32-DevKitC
  • SPI control interface, for working with STM32 or other MCU host boards
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Acrylic protective case, keeping the screen safe, nice looking
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32/ESP32)

Specifications

  • Operating voltage: 3.3V / 5V
  • Interface: 4-wire SPI
  • Outline dimension: 261.5mm × 211mm
  • Display size: 252.98mm × 190.90mm
  • Dot pitch: 0.194 × 0.194
  • Resolution: 1304 × 984
  • Display color: black, white
  • Grey scale: 2
  • Full refresh time: 8s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Example

12.48inch e-Paper Module example
12.48inch e-Paper Module example with Raspberry Pi
12.48inch e-Paper Module example with UNO PLUS/Arduino board
12.48inch e-Paper Module example with ESP32 driver board
12.48inch e-Paper Module example with STM32/other MCU

Note: image for reference ONLY, please check the package content for exact part list.

Dimensions

12.48inch e-Paper Module dimensions

Development Resources

Wiki : www.waveshare.com/wiki/12.48inch_e-Paper_Module

Selection Guide

Part Number Colors Grey Scale Resolution Display size (mm) Outline Dimension (mm) Full Refresh Time (s) Partial Refresh1 Pi Header2 Interface
1.02inch e-Paper Module black, white 2 128×80 21.76 × 14.00 42.0 × 27.0 2 SPI
1.54inch e-Paper Module black, white 2 200×200 27.60 × 27.60 48.0 × 33.0 2 SPI
1.54inch e-Paper Module (B) red, black, white 2 200×200 27.60 × 27.60 48.0 × 33.0 8 SPI
1.54inch e-Paper Module (C) yellow, black, white 2 152×152 27.51 × 27.51 48.0 × 33.0 27 SPI
2.13inch e-Paper HAT black, white 2 250×122 48.55 × 23.71 65.0 × 30.2 2 SPI
2.13inch e-Paper HAT (B) red, black, white 2 212×104 48.55 × 23.71 65.0 × 30.2 15 SPI
2.13inch e-Paper HAT (C) yellow, black, white 2 212×104 48.55 × 23.71 65.0 × 30.2 15 SPI
2.13inch e-Paper HAT (D) black, white 2 212×104 48.55 × 23.71 59.2 × 29.2 2 SPI
2.7inch e-Paper HAT black, white 4 264×176 57.29 × 38.19 85.0 × 56.0 6 SPI
2.7inch e-Paper HAT (B) red, black, white 2 264×176 57.29 × 38.19 85.0 × 56.0 15 SPI
2.9inch e-Paper Module black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 2 SPI
2.9inch e-Paper Module (B) red, black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 15 SPI
2.9inch e-Paper Module (C) yellow, black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 15 SPI
2.9inch e-Paper HAT (D) black, white 2 296×128 66.90 × 29.06 79.0 × 36.7 2 SPI
4.2inch e-Paper Module black, white 4 400×300 84.80 × 63.60 103.0 × 78.5 4 SPI
4.2inch e-Paper Module (B) red, black, white 2 400×300 84.80 × 63.60 103.0 × 78.5 15 SPI
4.2inch e-Paper Module (C) yellow, black, white 2 400×300 84.80 × 63.60 103.0 × 78.5 15 SPI
4.3inch e-Paper UART Module black, white 4 800×600 88.00 × 66.00 118.0 × 75.0 1.5 UART
5.65inch e-Paper Module (F) 7-Color 2 600×448 114.9 × 85.8 138.5 × 100.5 15 SPI
5.83inch e-Paper HAT (B) red, black, white 2 648×480 119.232 × 88.320 125.4 × 99.5 20 SPI
5.83inch e-Paper HAT (C) yellow, black, white 2 600×448 118.8 × 88.26 125.4 × 99.5 26 SPI
6inch e-Paper HAT black, white 16 800×600 122.4 × 90.6 138.4 × 101.8 <1 USB/SPI/ I80/I2C
6inch HD e-Paper HAT black, white 16 1448×1072 122.4 × 90.6 138.4 × 101.8 <1 USB/SPI/ I80
7.5inch e-Paper HAT black, white 2 800×480 163.20 × 97.92 170.2 × 111.2 5 SPI
7.5inch HD e-Paper HAT black, white 2 880×528 163.24 × 97.94 170.2 × 111.2 5 SPI
7.5inch e-Paper HAT (B) red, black, white 2 800×480 163.20 × 97.92 170.2 × 111.2 16 SPI
7.5inch HD e-Paper HAT (B) red, black, white 2 880×528 163.24 × 97.94 170.2 × 111.2 21 SPI
7.5inch e-Paper HAT (C) yellow, black, white 2 640×384 163.20 × 97.92 170.2 × 111.2 16 SPI
7.8inch e-Paper HAT black, white 16 1872×1404 158.18 × 118.64 173.8 × 127.6 <1 USB/SPI/ I80/I2C
9.7inch e-Paper HAT black, white 16 1200×825 202.8 × 139.43 218.8×156.4 <1 USB/SPI/ I80/I2C
10.3inch e-Paper HAT (D) black, white 16 1872×1404 209.66 × 157.25 227.7 × 165.8 <1 USB/SPI/ I80/I2C
12.48inch e-Paper Module black, white 2 1304×984 252.98 × 190.90 280.0 × 229.5 <8 SPI
12.48inch e-Paper Module (B) red, black, white 2 1304×984 252.98 × 190.90 280.0 × 229.5 <16 SPI
  1. It takes about 0.3s for partial refresh
  2. Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

e-Paper raw panels comparing

Package Contents

  • 12.48inch e-Paper Module x1
  • 8PIN squid wire x2
  • Screwdriver x1
Shipping weight: 1.05 Kg

Review this product

Average product review

Write your first review and help others with their purchase decision:

Notify me when this product is available

Send me a notification mail when the product is on stock again:
