Waveshare 17607 JetRacer AI Kit Acce (EU)

Artno.: WS1-017607

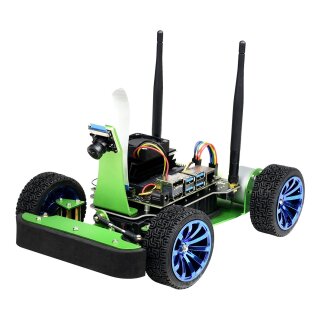

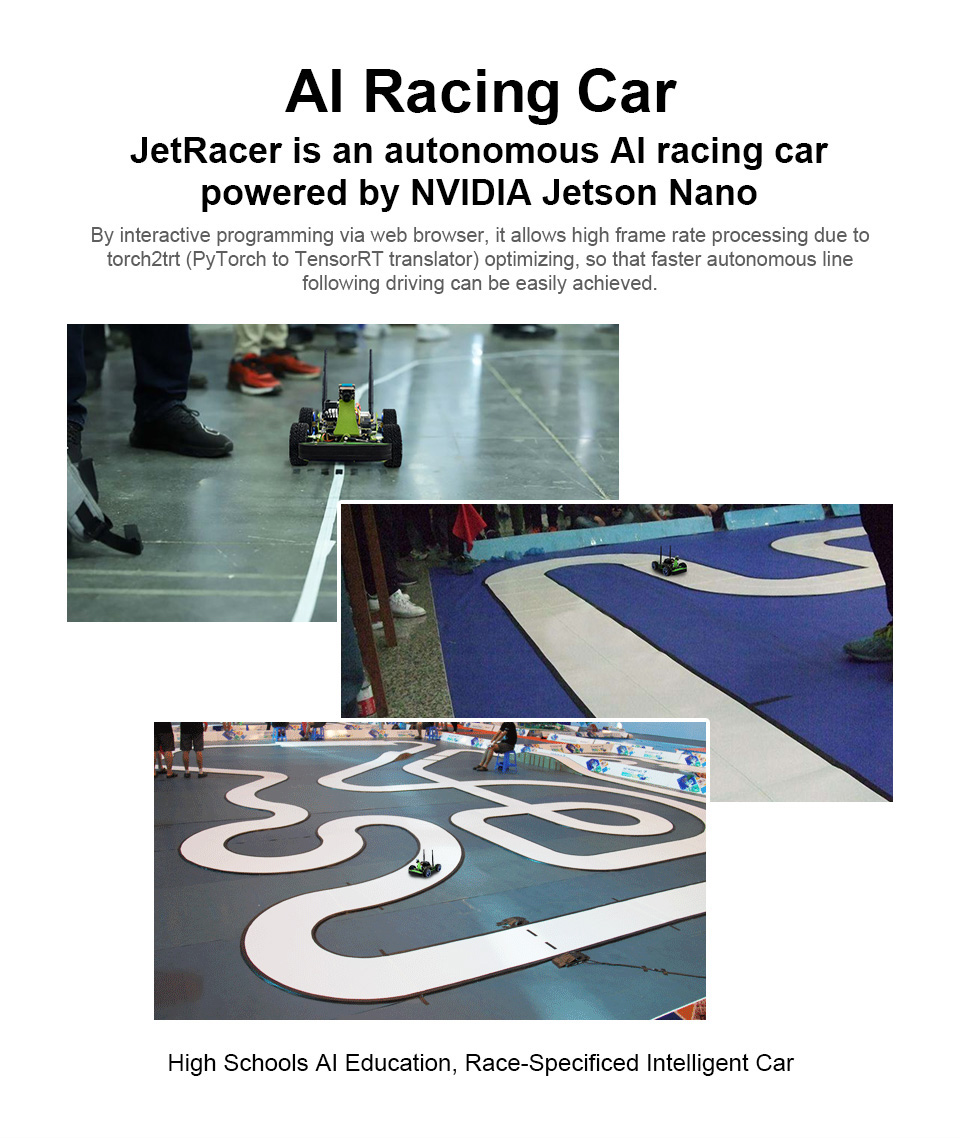

JetRacer AI Kit, AI Racing Robot Powered by Jetson Nano
239.00 € incl. 19% VAT
200.84 € excl. VAT

Free shipping

Out of stock

Description

Note: the Jetson Nano is optional.

Resources & Services

Wiki: JetRacer_AI_Kit

Jetson AI Robot Selection Guide

JetBot 2GB JetBot JetRacer JetRacer Pro
Controller Jetson Nano 2GB Jetson Nano
OS Ubuntu 18.04 LTS
Language Python

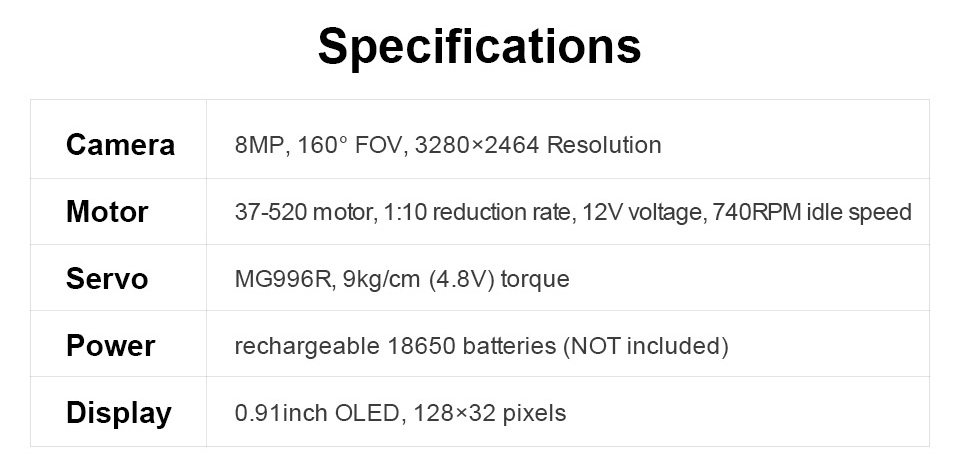

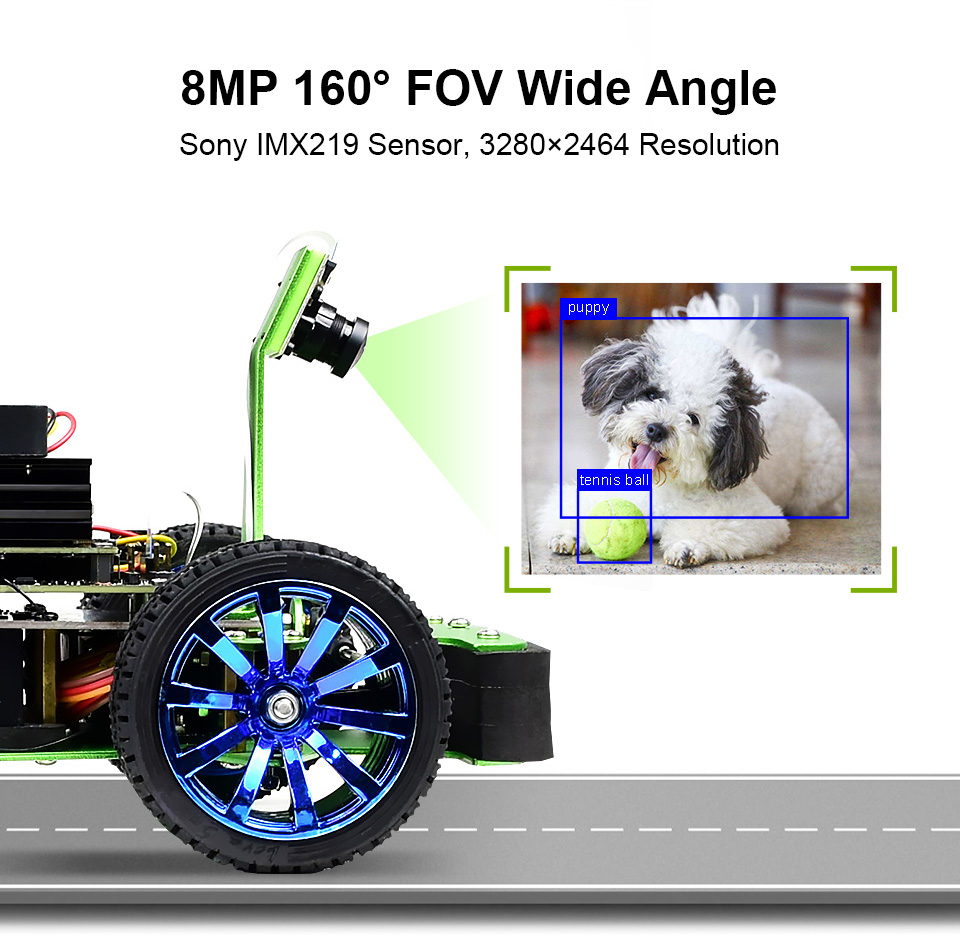

Camera 8MP HD resolution, 160° FOV wide angle camera
OLED 0.91" 128×32 pixels
Wireless 2.4GHz / 5.8GHz dual-band WiFi 2.4GHz / 5GHz dual-band WiFi, Bluetooth 4.2

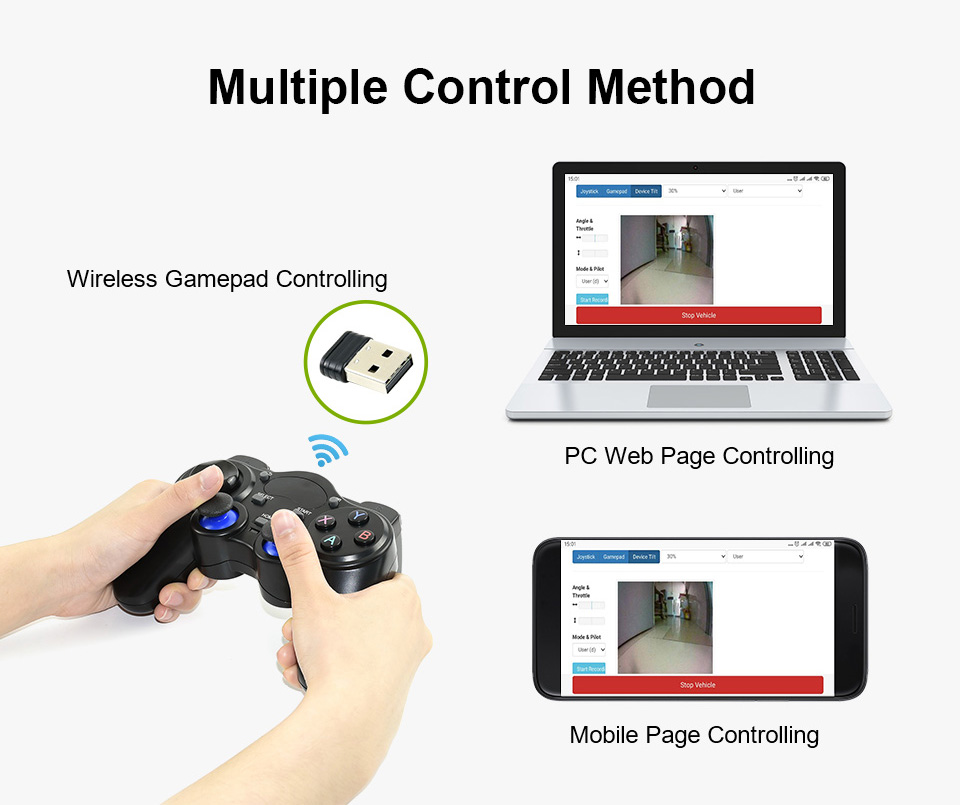

Teleoperation Gamepad, webpage
Communication WiFi
Protection over charge/discharge protection, over current protection, short circuit protection, reverse proof

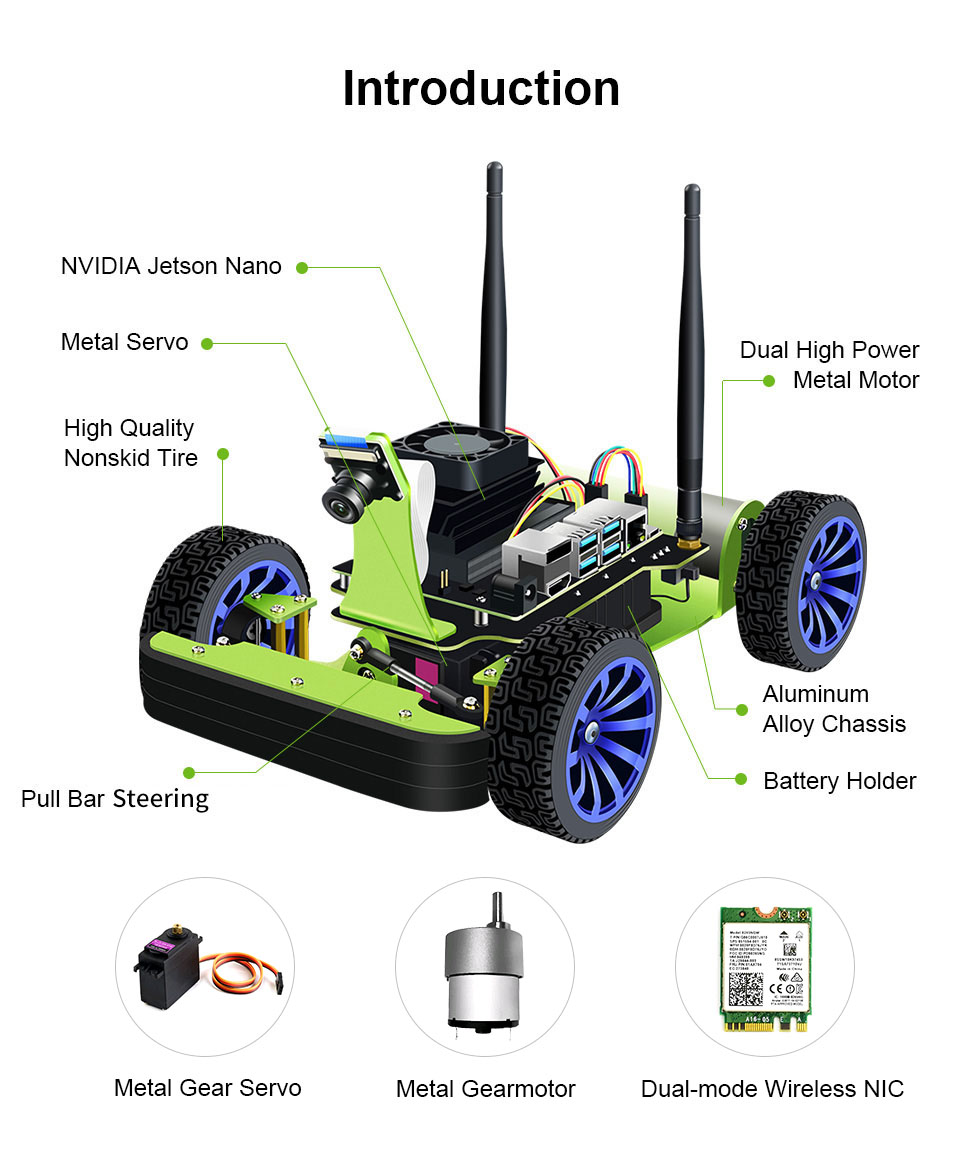

Driving Type Differential 2WD Ackerman steering Dual gearmotor rear wheel drive Ackerman steering High speed motors 4WD Front and rear axle differentials
Shock absorber N/A Adjustable oil-filled shocks 4WD independent suspension
Power supply 12.6V, 18650 battery × 3 (connected in series) 8.4V, 18650 battery × 4 (two in parallel, two in series)
Note: the 18650 batteries are NOT included.
motor TT motor Reduction rate 1:48 Idle speed 240RPM 37-520 DC gearmotor Reduction rate 1:10 Idle speed 740RPM RC380 high speed carbon brushed motor Idle speed 15000RPM
Servo N/A MG996R, 9kg/cm torque E6001, 6kg/cm torque
Chassis Aluminum alloy chassis Quality rugged plastic chassis
Crashproof N/A Front sponge

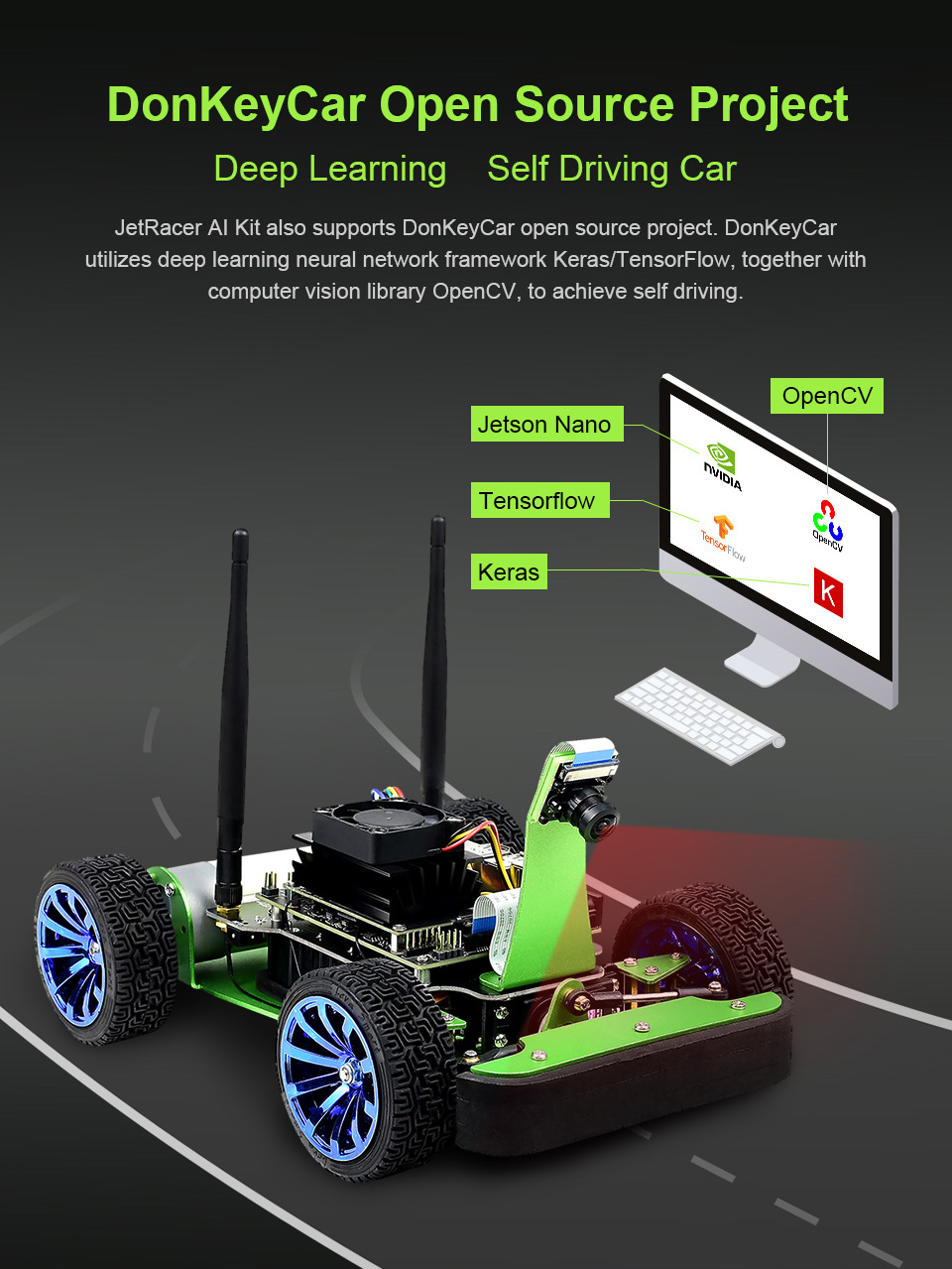

Program library JetBot, ROS JetRacer, DonkeyCar
Suggestion Entry level Basic programming skill required Competition level Experienced programming skill required High speed competition level Experienced programming skill required

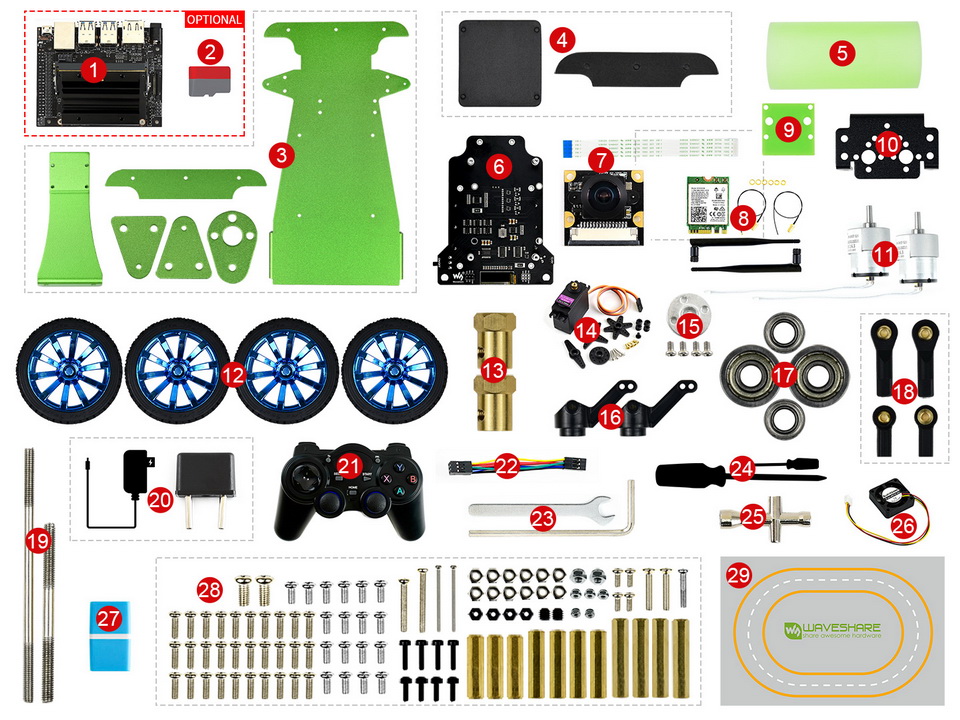

Package Contents

  • Please properly keep the Jetson products' original packing box and accessories (if any) for warranty service, and the serial numbers on the product and packing box MUST be matched, otherwise, the original manufacturer will reject returning / repairing.
  • The 18650 batteries are NOT included
  • Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more

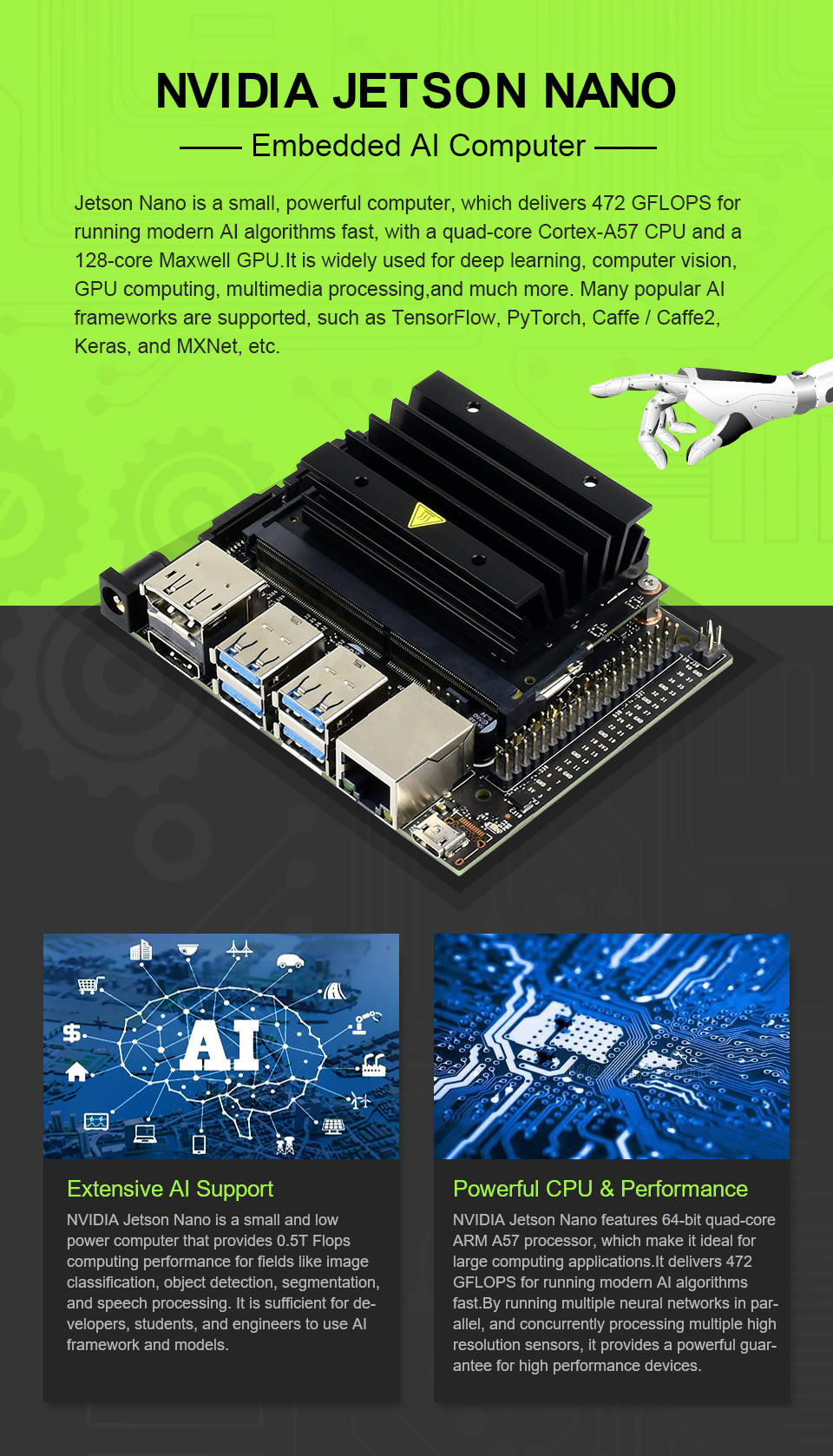

  1. OPTIONS Jetson Nano Developer Kit (B01)
  2. OPTIONS Micro SD Card 64GB
  3. JetRacer metal kit 6PCS
  4. EVA felt pad 2PCS
  5. 3D-printed motor lid

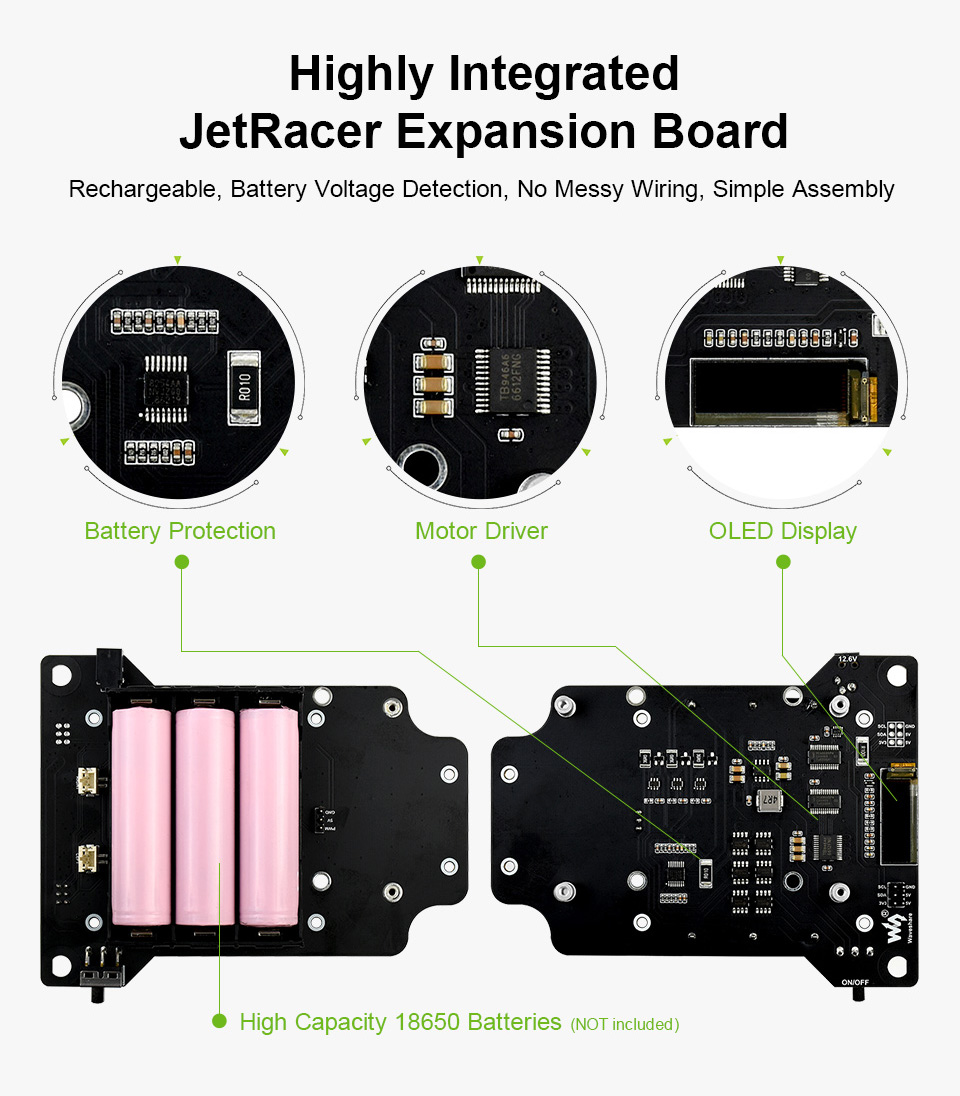

  6. JetRacer expansion board
  7. IMX219-160 Camera

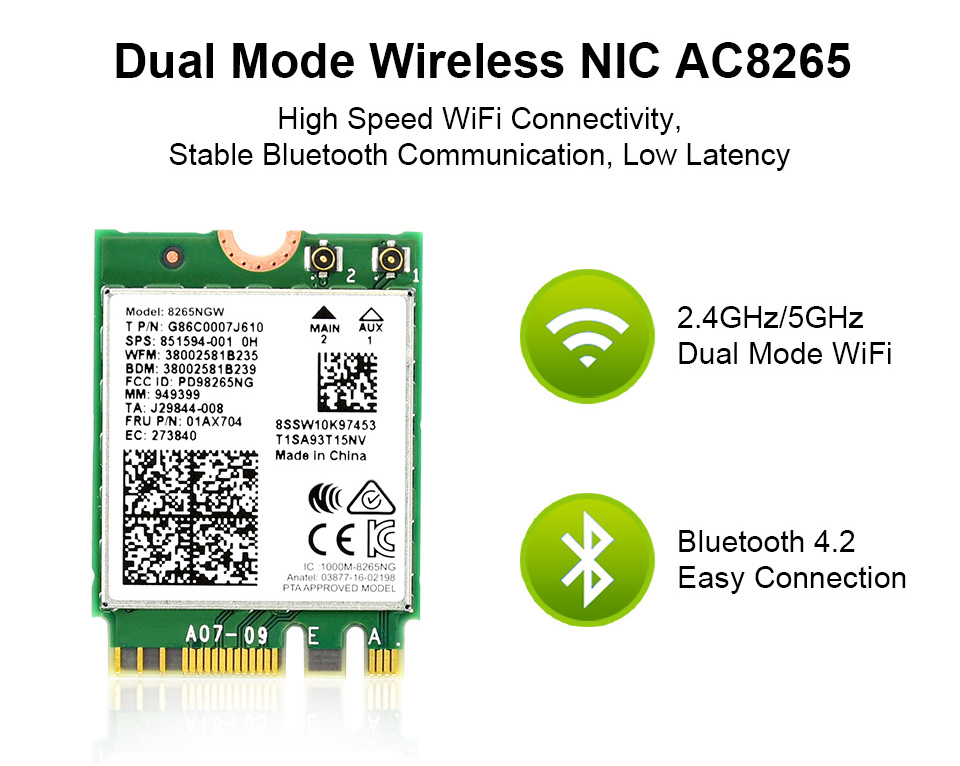

  8. Wireless-AC8265
  9. Acrylic piece
  10. Servo mount
  11. Metal Gearmotor 2PCS
  12. Tire 4PCS
  13. Coupler 2PCS
  14. MG996R servo
  15. MG996R servo wheel
  16. Steering knuckle 2PCS
  17. Ball bearing 4PCS
  18. M3 plastic ball joint 4PCS
  19. M3 pull bar 2PCS
  20. 12.6V battery charger + EU head
  21. Wireless gamepad
  22. 6Pin cable
  23. Spanner 2PCS
  24. Screwdriver 2PCS
  25. Mini cross wrench sleeve
  26. 4010 cooling fan
  27. Micro SD card reader
  28. Screws pack

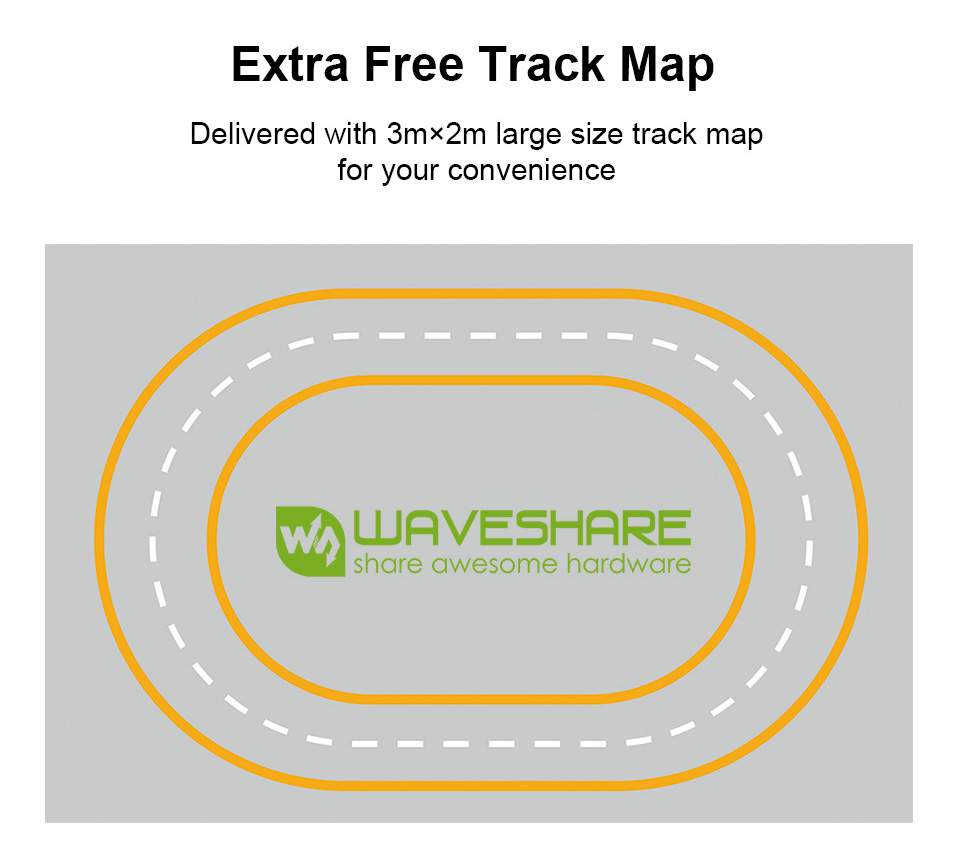

  29. Track map
