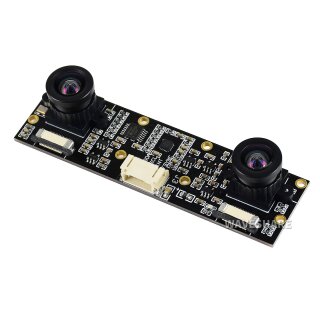

Waveshare 17742 IMX219-83 Stereo Camera

Artno.: WS2-017742

Waveshare 17742 IMX219-83 Stereo Camera

Binocular Camera Module, Dual IMX219, 8 Megapixels, Stereo Vision, Depth Vision

64.90 € incl. 19% VAT

54.54 € excl. VAT

plus shipping

10+ On stock

Shipping time: 1 - 3 business days

Description

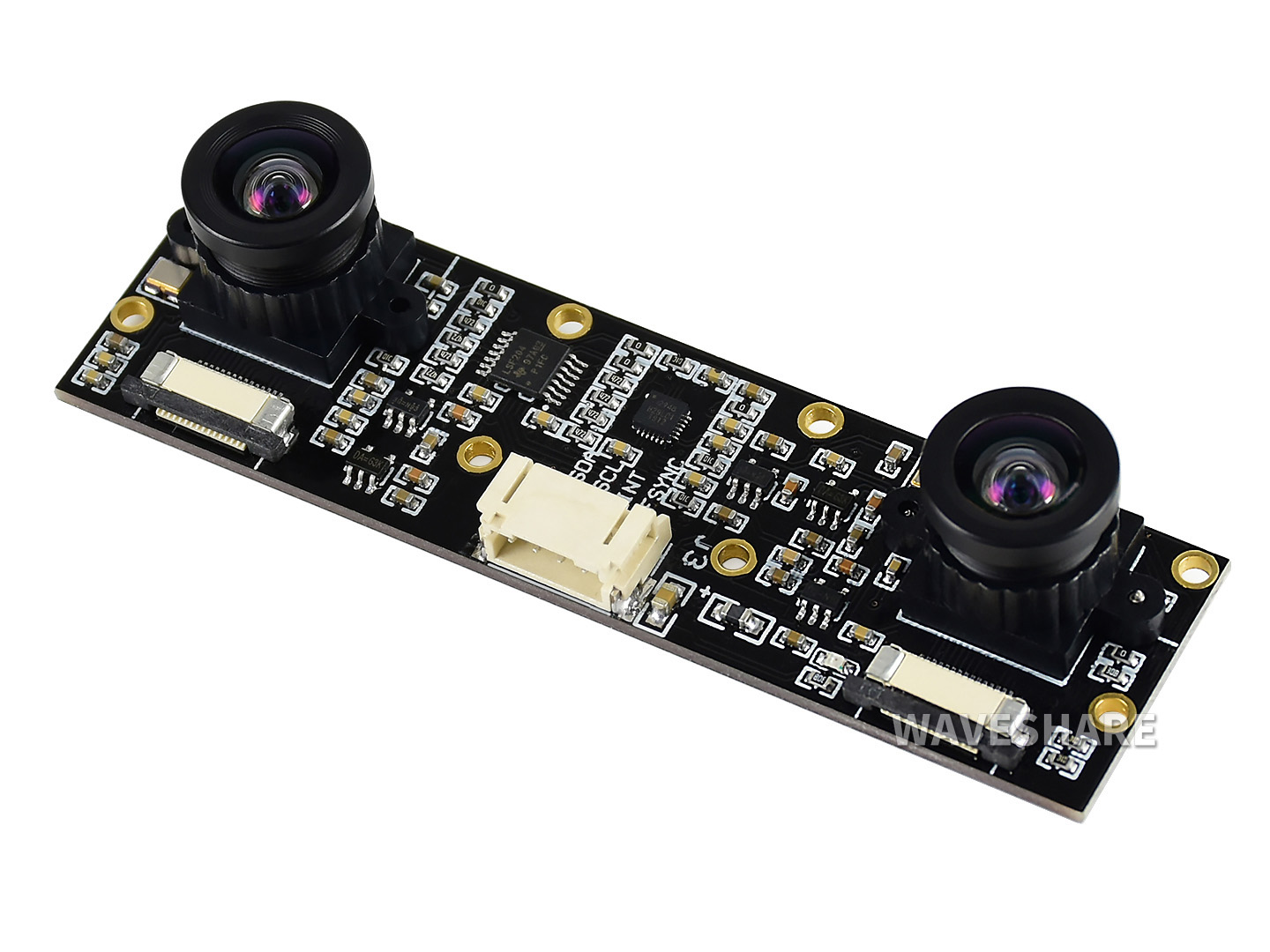

This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.

The module supports NVIDIA Jetson Nano Developer Kit B01 version, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.

Specifications

8 Megapixels
Sensor: Sony IMX219
Resolution: 3280 × 2464 (per camera)
Lens specifications:
- CMOS size: 1/4inch
- Focal Length: 2.6mm
- Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
- Distortion: <1%
- Baseline Length: 60mm
ICM20948:
- Accelerometer:
  - Resolution: 16-bit
  - Measuring Range (configurable): ±2, ±4, ±8, ±16g
  - Operating Current: 68.9uA
- Gyroscope:
  - Resolution: 16-bit
  - Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec
  - Operating Current: 1.23mA
- Magnetometer:
  - Resolution: 16-bit
  - Measuring Range: ±4900µT
  - Operating Current: 90uA
Dimension: 24mm × 85mm

Applications

AI vision applications like depth vision and stereo vision.

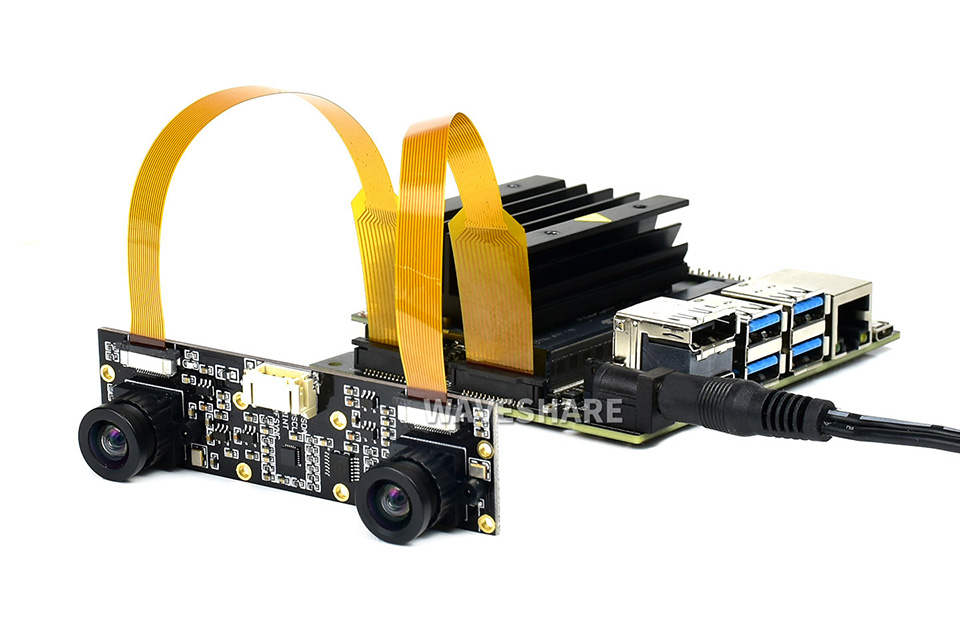

Example

Note: for reference only, Jetson Nano Developer Kit (B01) is NOT included.

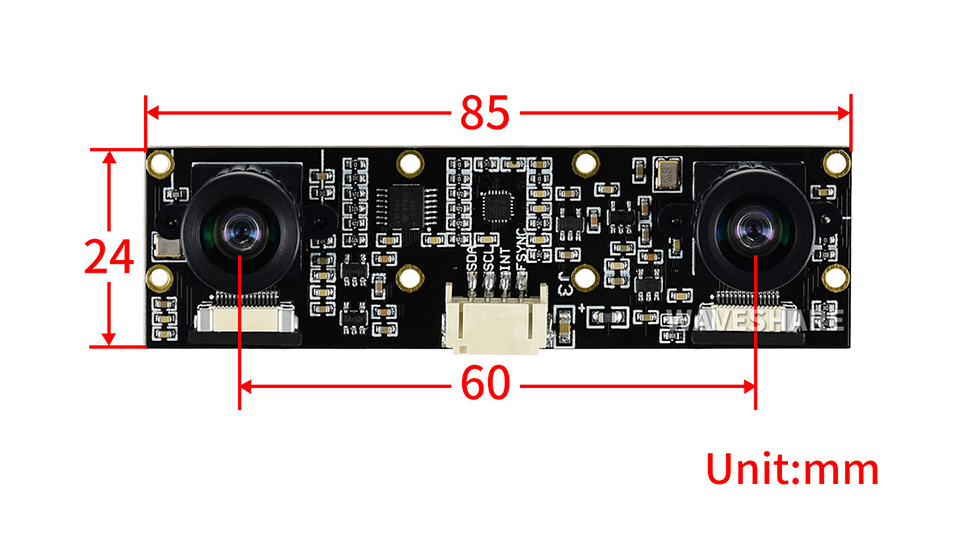

Dimensions

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-83_Stereo_Camera

Selection Guide

Product	Pixels	Sensor	Infrared	Camera	Angle of View (diagonal) (degree)	Aperture (F)	Focal Length (mm)	PCBA	Suit for
RPi Camera V2	8 Mega	IMX219	×	1	62.2	2.0	3.04	√	Raspberry Pi, CM3/3+/4, Jetson Nano
RPi NoIR Camera V2			√	1	62.2	2.0	3.04	√	Raspberry Pi, CM3/3+/4, Jetson Nano
IMX219-77 Camera			×	1	77	2.0	2.96	√	CM3/3+/4, Jetson Nano
IMX219-77IR Camera			√	1	77	2.0	2.96	√	CM3/3+/4, Jetson Nano
IMX219-120 Camera			×	1	120	2.2	1.88	√	CM3/3+/4, Jetson Nano
IMX219-160 Camera			×	1	160	2.35	3.15	√	CM3/3+/4, Jetson Nano
IMX219-160IR Camera			√	1	160	2.35	3.15	√	CM3/3+/4, Jetson Nano
IMX219-160 IR-CUT Camera			√	1	162	2.7	3.62	√	CM3/3+/4, Jetson Nano
IMX219-170 Camera			×	1	170	2.0	2.2	√	CM3/3+/4, Jetson Nano
IMX219-200 Camera			×	1	200	2.0	0.87	√	CM3/3+/4, Jetson Nano
IMX219-D160			×	1	160	2.35	3.15	×	Raspberry Pi, CM3/3+/4, Jetson Nano
IMX219-83-Stereo-Camera			×	2	83	-	2.6	√	CM3/3+/4, Jetson Nano (B01)
