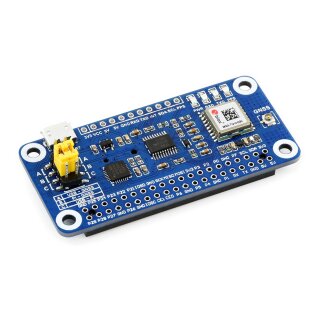

Waveshare 18234 MAX-7Q GNSS HAT
Artno.: WS1-018234
MAX-7Q GNSS HAT for Raspberry Pi

34.90 € incl. 19% VAT
29.33 € excl. VAT
10+ On stock

Shipping time: 1 - 3 business days

Description

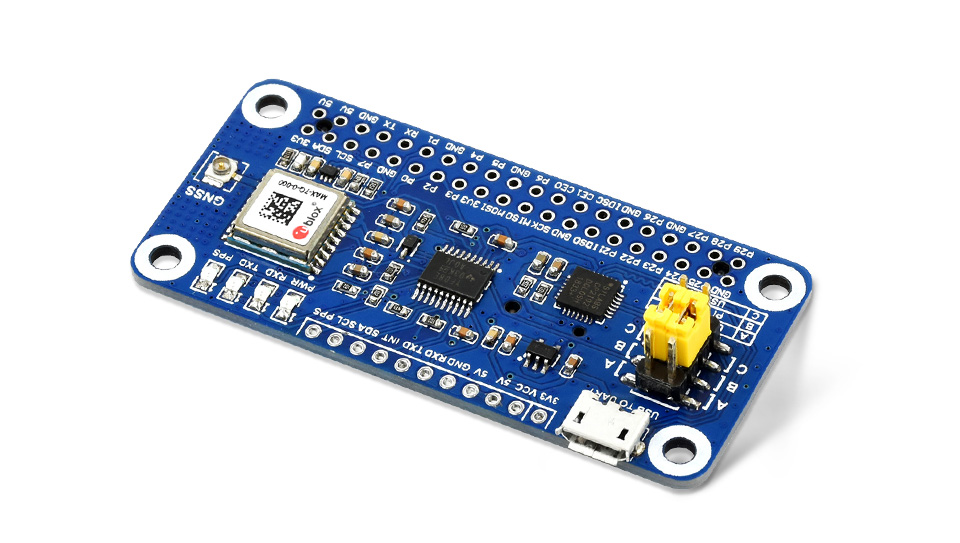

MAX-7Q GNSS HAT

GNSS module based on MAX-7Q for Raspberry Pi

accurate & fast positioning with minor drifting, low power consumption, outstanding ability for anti-spoofing & anti-jamming

This is a Raspberry Pi GNSS HAT based on MAX-7Q , which supports positioning systems including GPS, GLONASS, QZSS, and SBAS. It features accurate & fast positioning with minor drifting, low power consumption, outstanding ability for anti-spoofing & anti-jamming, and so on.

By simply attaching it onto the Pi, it is fairly easy to enable GNSS capability for your Raspberry Pi.

Features at a glance

  • Supports GPS/QZSS, GLONASS positioning systems
  • A-GNSS (Assisted GNSS) support, reducing the first positioning time when powered up, improving the acquisition sensitivity
  • Outstanding ability for anti-spoofing & anti-jamming, supports geo-fencing
  • Supports U-Center, an easy way to config the module
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Onboard USB TO UART converter CP2102 for serial debugging
  • Breakouts the module's UART and I2C interface, for connecting with host boards like Arduino/STM32
  • Baudrate range: 4800~921600bps (9600bps by default)
  • Supports DDC (I2C compliant) interface: up to 400KHz (max)
  • Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
  • 4x LEDs for indicating the module operating status
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

GNSS Specifications
MAX-7Q GPS GLONASS
Frequency band 56x u-blox 7 engine channels GPS/QZSS L1C/A, GLONASS L1 FDMA, SBAS (WAAS, EGNOS, MSAS)
Horizontal positioning accuracy Autonomous 2.5m CEP 4.0m CEP
SBAS 2.0m CEP -
Max navigation update rate 10Hz 10Hz
Time-To-First-Fix Cold starts 29s 30s
Warm starts 28s 25s
Hot starts 1s 1s
Aided starts 5s -
Sensitivity Tracking and navigating -161 dBm -158 dBm
Re-acquisition -160 dBm -156 dBm
Cold starts -148 dBm -140 dBm
Warm starts -148 dBm -145 dBm
Hot starts -156 dBm -156 dBm
PPS accuracy RMS 30ns 50ns
99% 60ns 100ns
PPS frequency 0.25Hz?10MHz (configurable)
Velocity accuracy 0.1m/s
Heading accuracy 0.5 degree
Operational limits Acceleration (max): 4g
Altitude (max): 50000m
Velocity (max): 500m/s
Other Specifications
Communication interface UART (4800~921600bps, 9600bps by default), I2C (max 400KHz)
Update rate 1Hz (default), 10Hz (max)
Protocol NMEA 0183 Version 2.3 (V3.0 compatible), UBX, RTCM 2.3
Power supply 5V
Overall current <37mA@5V (Continue mode)
Module current 17.5mA@3V (Continue mode, tracking status)
Operating temperature -40? ~ 85?
Dimensions 65mm × 30.5mm

Standard Raspberry Pi 40PIN GPIO

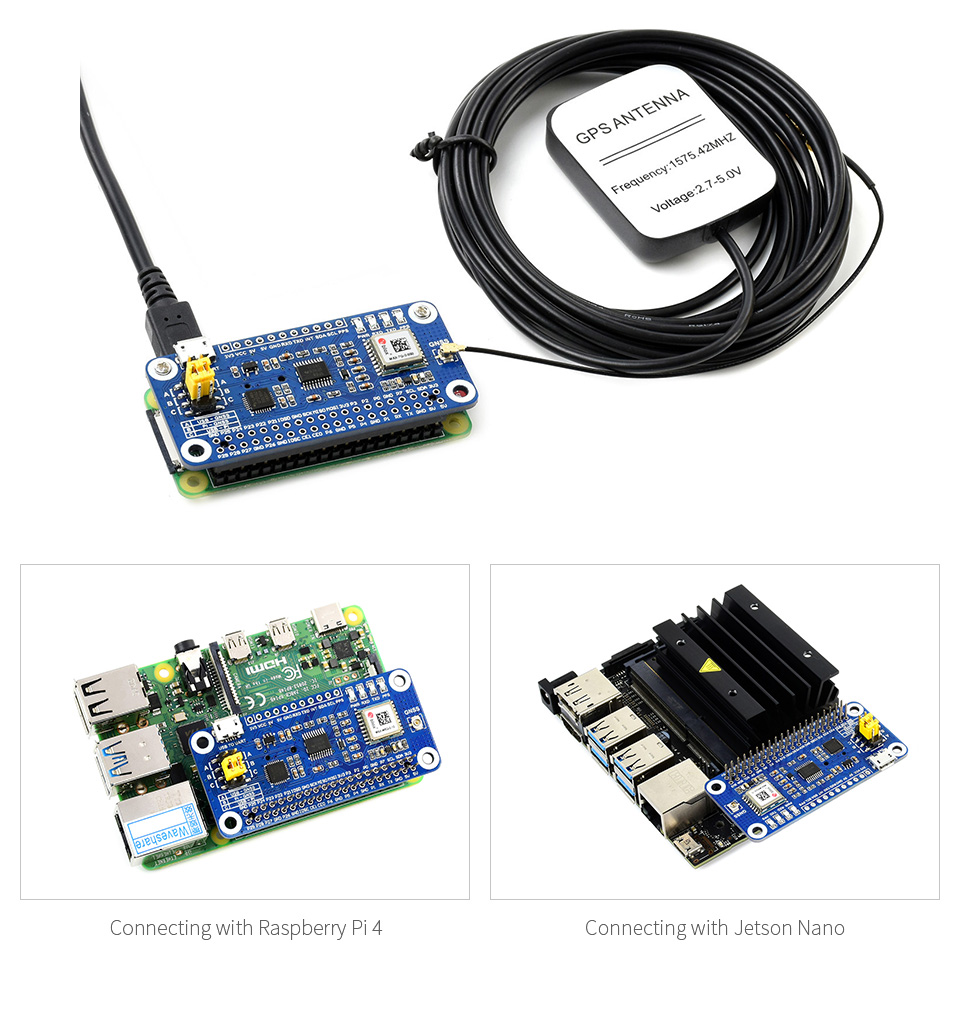

Compatible with Raspberry Pi series boards, Jetson Nano

Multiple GNSS systems support

Supports GPS/QZSS, GLONASS

Augment systems support

Augment system is aimed at improving the accuracy, completeness, reliability, and availability of positioning and navigation

Supports augment systems including SBAS and QZSS

Geo-fencing support

High sensitivity of single GNSS receiver, outstanding ability for anti-spoofing & anti-jamming

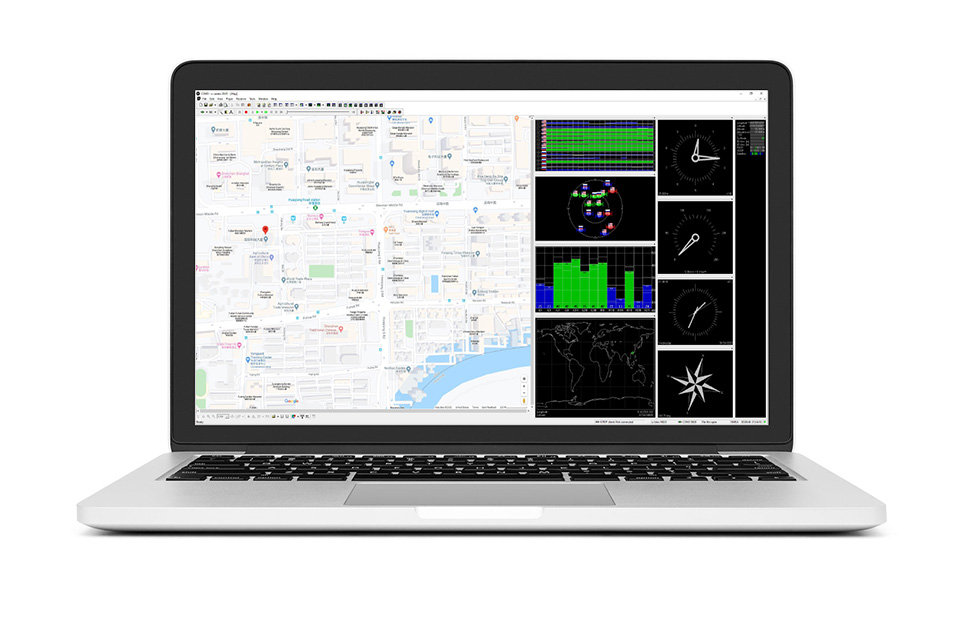

software U-Center support

an easy way to config the module

applications

Ideal for fleet management, asset tracking, security systems, industrial PDA, GIS app, etc.

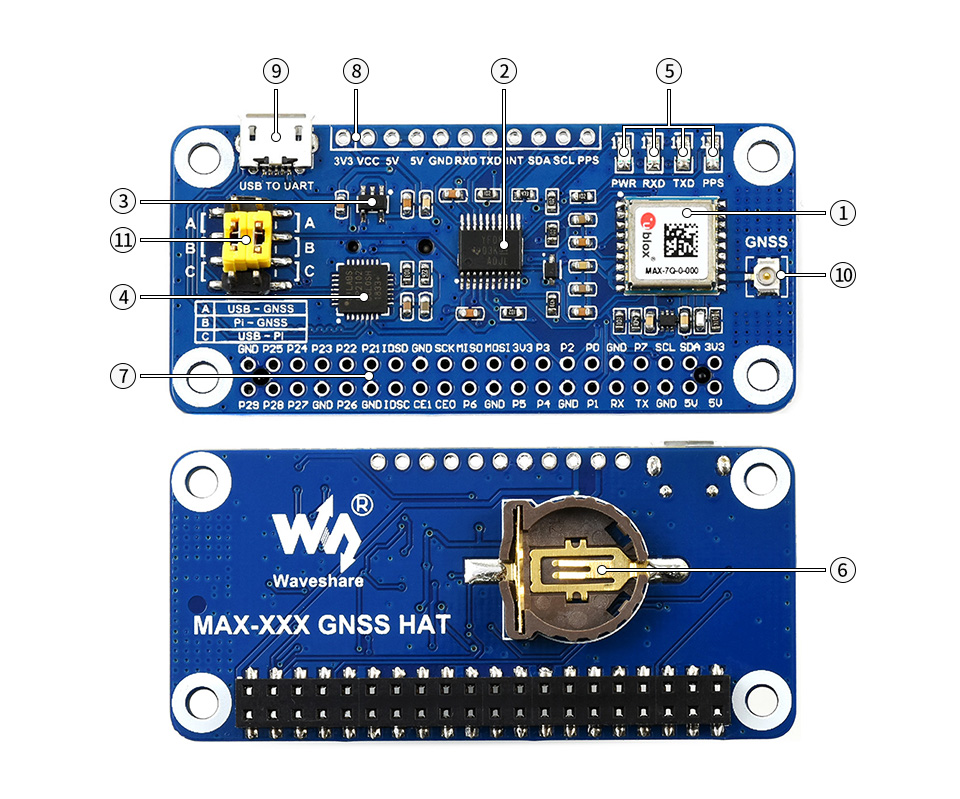

What's on board

  1. MAX-7Q module
  2. TXS0108EPWR voltage translator
  3. RT9193-33 power chip
  4. CP2102 USB TO UART converter
  5. Status indicators RXD/TXD: UART TX/RX indicator PPS: GPS status indicatorPWR: power indicator
  6. Battery holder supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
  1. Raspberry Pi GPIO header for connecting with Raspberry Pi
  2. UART, I2C interface for connecting with other MCUs
  3. USB TO UART port
  4. GNSS antenna connector
  5. UART selection jumper A: control the MAX-7Q through USB TO UART B: control the MAX-7Q through Raspberry Pi C: access Raspberry Pi through USB TO UART

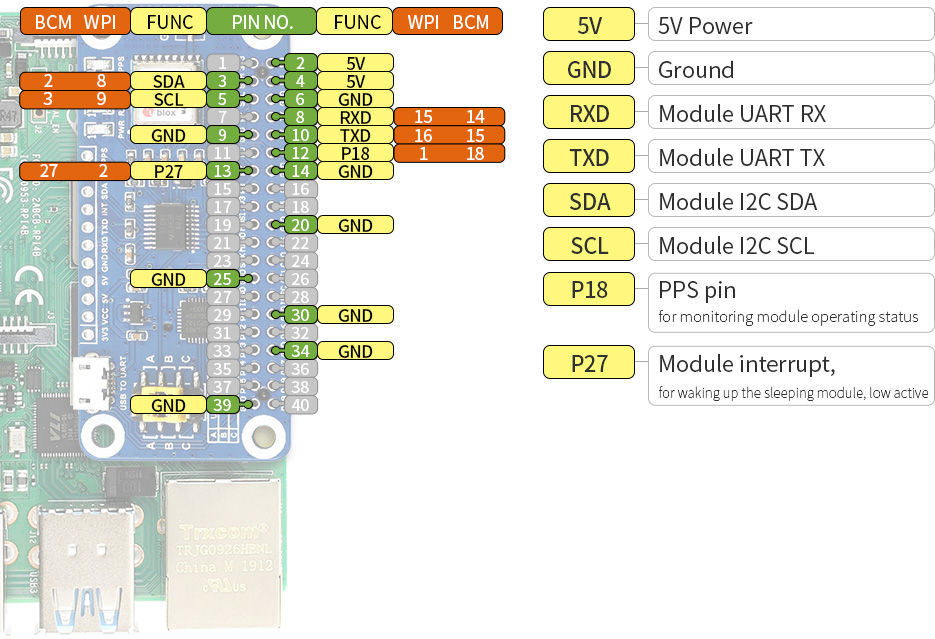

Pinout definition

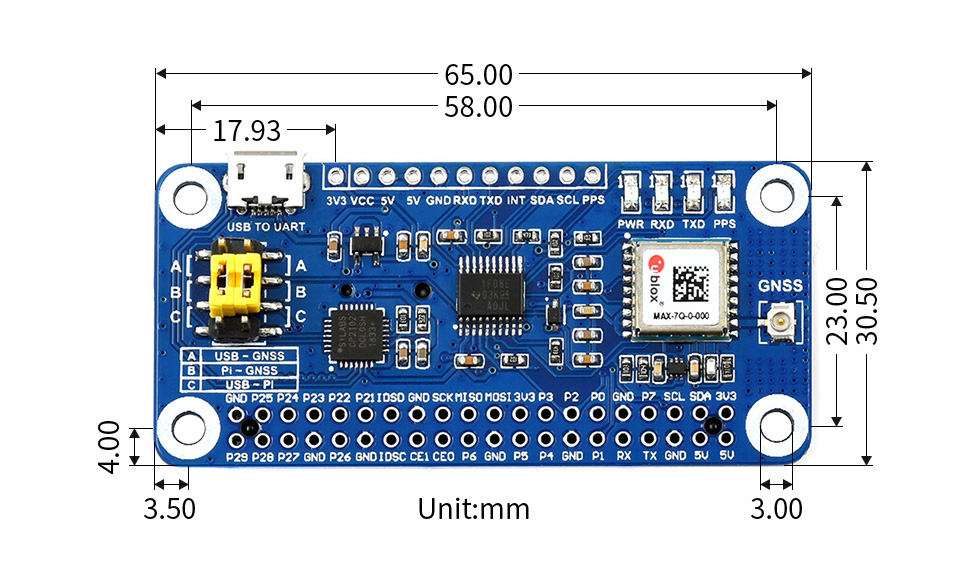

Outline Dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Package Contents

  1. MAX-7Q GNSS HAT x1
  2. GPS External Antenna (B) x1
  3. USB-A to Micro-B cable x1
  4. RPi screws pack (2pcs) x1
  5. 2x20PIN female header x1
1
2
3
4
5

Shipping weight: 0.16 Kg
