Waveshare 18606 Compute Module 4 PoE Board
Description

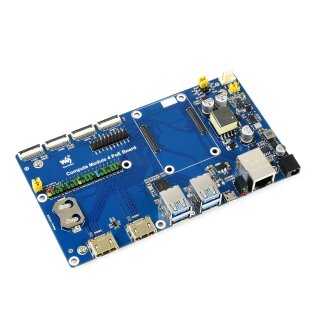

Compute Module 4 PoE Board
suitable for evaluating the Raspberry Pi CM4 or being integrated into end products
PoE Base Board for all Compute Module 4 Variants
What's the differences
| CM4 IO Board |
 Waveshare mini IO Board |
 Waveshare PoE IO Board (B) |
 Waveshare PoE IO Board |
 Raspberry Pi IO Board |
|
|---|---|---|---|---|---|
| Lite Ver. | Full Ver. | ||||
| PoE | N/A | integrates 802.3af-compliant PoE circuit (5V/2.5A) | PoE header only | ||
| USB | USB 2.0 × 2 USB 2.0 × 2 (via FFC connector) | USB 2.0 × 4 | USB 3.2 Gen1 × 4 | USB 2.0 × 2 USB 2.0 × 2 (via pin header) | |
| Header | 40PIN GPIO × 1 M.2 slot × 1 | 40PIN GPIO × 1 RS485 × 1 RS232 × 1 standard PCIe Gen 2 × 1 | 40PIN GPIO × 1 | 40PIN GPIO × 1 standard PCIe Gen 2 × 1 | |
| HDMI | HDMI × 1 HDMI × 1 (via FFC connector) supports 4K 30fps output | HDMI × 2 supports 4K 30fps output | |||
| DSI Display | MIPI DSI display port × 1 (15pin 1.0mm FPC connector) | MIPI DSI display port × 2 (15pin 1.0mm FPC connector) | MIPI DSI display port × 2 (22pin 0.5mm FPC connector) | ||
| CSI Camera | MIPI CSI-2 camera port × 2 (15pin 1.0mm FPC connector) | MIPI CSI-2 camera port × 2 (22pin 0.5mm FPC connector) | |||
| Power Input | 5V | 5V | 7V~36V | 12V | |
| Fan | 5V | 5V / 12V | 12V | ||
| no fan control | allows speed adjustment and measurement | ||||
| RTC | N/A | Real-time clock with battery socket and ability to wake Compute Module 4 | |||
| Ethernet | Gigabit Ethernet RJ45 | ||||
| CM4 Socket | suitable for all variants of Compute Module 4 | ||||
| SD Card Slot | MicroSD card socket for Compute Module 4 Lite (without eMMC) variants | ||||
| Dimensions (mm) | 85.0 × 56.0 | 124.50 × 108.80 | 160 × 90 | ||
Connecting with Compute Module 4
standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO header suitable for all variants of Compute Module 4
Rich peripheral connectors
onboard connectors including CSI/DSI/RTC/HDMI/USB/ETH/TF card
What's On Board
- CM4 socket suitable for all variants of Compute Module 4
- Power input 7~36V wide range power supply
- Gigabit Ethernet connector Gigabit Ethernet RJ45 with PoE support
- USB SLAVE port allows burning system image into Compute Module 4 eMMC variants
- USB3.2 ports 4x USB 3.2 Gen1 ports, for connecting sorts of USB devices
- HDMI ports 2x HDMI ports, supports dual 4K 30fps output
- RTC RTC battery holder, allows RTC-related functions like wakeup, shutdown, reboot, and more
- CAM 2x MIPI CSI camera ports
- DISP 2x MIPI DSI display port
- FAN for connecting cooling fan, allows speed adjustment and measurement
- FAN power selection 5V or 12V voltage to drive the fan
- IO-VREF/PoE selection CM4 IO logic level: 3.3V or 1.8V PoE: enable (EN) or disable (DIS)
- 40PIN GPIO header
- CAM0 and DISP0 I2C bus fit the jumpers when using CAM0 or DISP0
- Misc configurations
- Dual LED indicators red: Raspberry Pi power indicator green: Raspberry Pi operating status indicator
- TF card slot (bottom side) insert a Micro SD card with pre-burnt system, to start up Compute Module 4 Lite
Outline dimensions
Application example
suitable for PoE Powered Raspberry Pi Projects, Or Other Industrial Context
for reference only, CM4, display, and cameras are NOT included.
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Package Contents
- Compute Module 4 PoE Board x1
