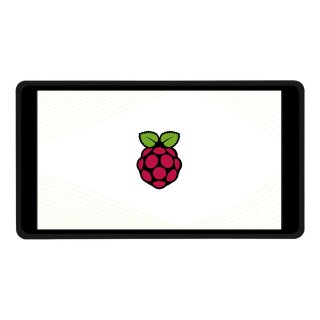

Waveshare 18683 5.5inch HDMI AMOLED (with case A) (Black)
Artno.: WS3-018683
5.5inch Capacitive Touch AMOLED Display, with Protection Case, 1080×1920, Toughened Glass Panel

139.00 € incl. 19% VAT
116.81 € excl. VAT
Out of stock

Description

5.5" Touch AMOLED

The display orientation is portrait by default, 1080×1920 resolution (H×V). Change the software config for landscape display.

Device & System Support

Raspberry Pi
Supports Raspbian, 5-points touch, driver free Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free Supports Retropie, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+

Connection Example

Working with Raspberry Pi 4

Working with Raspberry Pi 3B+

Display

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Appearance and Dimensions

Note: the dimensions are measured manually, for reference only.

Note: 1) Raspberry Pi is NOT included. 2) the case is 3D-printed, so you may feel the surfaces is a little bit rough, please make sure you don't mind it before purchasing.

Product Certification

HDMI Certified

* We are an official authorized HDMI Adopter.

CE Certified

* This display is in compliance with CE standard.

Over a decade: Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Development Resources

Wiki: www.waveshare.com/wiki/5.5inch_HDMI_AMOLED

Selection Guide

PartNumber Display Touch Audio Device Support
Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Fully Laminated Spe-aker Signal Output Pi JETSON NANO PC
SPI DISPLAYS PROS: low price. CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
3.2inch RPi LCD (C) 320×240 High-Speed SPI TFT Resistive SPI × × × × × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT Resistive SPI × × × × × ×
4inch RPi LCD (C) 480×320 High-Speed SPI TFT Resistive SPI × × × × × ×
DPI DISPLAYS PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system. CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C × × × ×
3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C × × × × ×
4inch DPI LCD (B) 480×800 DPI IPS 170° Capacitive I2C × × ×
4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C × × × ×
5inch DPI LCD 800×480 DPI IPS 160° × × × × × × × ×
7inch DPI LCD 1024×600 DPI IPS 170° × × × × × × × ×
DSI DISPLAYS PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: only 800×480 resolution is available currently, supports Raspberry Pi only.
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C × × × × ×
4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C × × × × ×
5inch DSI LCD 800×480 DSI TFT - Capacitive I2C × × × × ×
7inch DSI LCD 800×480 DSI TFT - Capacitive I2C × × × × ×
7inch DSI LCD (with case A) 800×480 DSI TFT - Capacitive I2C × × × × ×
HDMI / TYPE-C DISPLAYS PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system. CONS: somewhat costly.
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × × Display ONLY
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × × Display ONLY
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × ×
5inch HDMI LCD 800×480 HDMI TFT Resistive SPI × × × × × ×
5inch HDMI LCD (with case) 800×480 HDMI TFT Resistive SPI × × × × × ×
5inch HDMI LCD (B) 800×480 HDMI TFT Resistive USB × × × × ×
5inch HDMI LCD (B) (with case) 800×480 HDMI TFT Resistive USB × × × × ×
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT Resistive USB × × × ×
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT Capacitive USB × ×
5inch HDMI LCD (H) V4 800×480 HDMI TFT Capacitive USB × × × ×
5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB × ×
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB × ×
5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB × × × ×
5.5inch HDMI AMOLED (with case B) 1080×1920 HDMI AMOLED 170° Capacitive USB × ×
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT Capacitive USB × × × × ×
7inch HDMI LCD (B) (with case) 800×480 HDMI TFT Capacitive USB × × × × ×
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × ×
7inch HDMI LCD (C) (with case) 1024×600 HDMI IPS 170° Capacitive USB × × × × ×
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × ×
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB × ×
7inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive USB
7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB × ×
9HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB × ×
10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB × ×
7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB × ×
9inch 2560x1600 Monitor 2560×1600 HDMI IPS 178° Capacitive USB
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × × Display ONLY
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT Capacitive USB × × × ×
10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB ×
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB × × × ×
11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB ×
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB
11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB × ×
12.5inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB ×
13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB × ×
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB ×
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB ×
15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB × ×
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB ×
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB ×

Have a look : RPi LCD Comparing

Package Contents

  1. 5.5inch HDMI AMOLED x1
  2. HDMI cable x1
  3. USB type A plug to micro B plug cable x1
  4. HDMI adapter (B) x1
  5. USB adapter (B) x1
  6. HDMI to Micro HDMI adapter (C) x1
  7. USB adapter (C) x1
  8. Screws pack x1
  9. 3D-printed case x1
  10. 5V cooling fan x1
  11. Quick start sheet x1
5.5inch HDMI AMOLED (with case)

Shipping weight: 0.38 Kg
