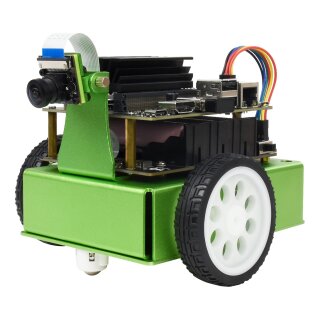

JetBot 2GB AI Kit
AI-based smart robot powered by NVIDIA Jetson Nano 2GB Developer Kit
NVIDIA official recommendation
Since Waveshare JetBot AI Kit released, it is welcomed by lots of global users due to its high quality structure design and extreme cost effective, and has successfully become one of the most recommended AI robot kits by NVIDIA. As anticipated, the JetBot 2GB version is also available now.
Note: the Jetson Nano 2GB Developer Kit is optional.
AI-based "Actual Smart"
Smart robot is always the favorite project of electronic enthusiasts,however, a robot will be "not that smart" if it is not AI-based.
This is an actual smart robot powered by NVIDIA JetBot AI project and the Jetson Nano 2GB Developer Kit, easily achieving AI functions like: facial recognition, object tracking, and self driving. Comes with ROS nodes code as well, which makes it easy to get started with ROS.
Auto Road Following & Collision Avoidance
Collecting data via camera by taking enough images of different conditions, using the data to train the neutral network, combined with AI algorithm, finally achieving auto collision avoidance on sorts of environments.
Robot Operating System (ROS) support
Comes with ROS nodes code, make it easy to get started with ROS, and to learn the ROS system framework and concept
The Robot Operating System (ROS) is a flexible framework for writing robot software. It is a collection of tools, libraries, and conventions that aim to simplify the task of creating complex and robust robot behavior across a wide variety of robotic platforms. The ROS is one of the most popular robot software framework in the world.
JetBot expansion board highly integrated
no messy wiring, simple assembly
8MP 160° FOV camera
Sony IMX219 sensor, 3280×2464 resolutionFacial Recognition, Object Classify, Real Time Monitoring
USB WiFi connectivity
High speed WiFi, stable connection, low latency
gamepad teleoperation
plug and play, easy to use
Resources & Services
Jetson AI Robot Selection Guide
|
 JetBot 2GB |
 JetBot |
 JetRacer |
 JetRacer Pro |
| Controller |
Jetson Nano 2GB |
Jetson Nano |
| OS |
Ubuntu 18.04 LTS |
| Language |
Python |
| Camera |
8MP HD resolution, 160° FOV wide angle camera |
| OLED |
0.91" 128×32 pixels |
| Wireless |
2.4GHz / 5.8GHz dual-band WiFi |
2.4GHz / 5GHz dual-band WiFi, Bluetooth 4.2 |
| Teleoperation |
Gamepad, webpage |
| Communication |
WiFi |
| Protection |
over charge/discharge protection, over current protection, short circuit protection, reverse proof |
| Driving Type |
Differential 2WD |
Ackerman steering Dual gearmotor rear wheel drive |
Ackerman steering High speed motors 4WD Front and rear axle differentials |
| Shock absorber |
N/A |
Adjustable oil-filled shocks 4WD independent suspension |
| Power supply |
12.6V, 18650 battery × 3 (connected in series) |
8.4V, 18650 battery × 4 (two in parallel, two in series) |
| Note: the 18650 batteries are NOT included. |
| motor |
TT motor Reduction rate 1:48 Idle speed 240RPM |
37-520 DC gearmotor Reduction rate 1:10 Idle speed 740RPM |
RC380 high speed carbon brushed motor Idle speed 15000RPM |
| Servo |
N/A |
MG996R, 9kg/cm torque |
E6001, 6kg/cm torque |
| Chassis |
Aluminum alloy chassis |
Quality rugged plastic chassis |
| Crashproof |
N/A |
Front sponge |
| Program library |
JetBot, ROS |
JetRacer, DonkeyCar |
| Suggestion |
Entry level Basic programming skill required |
Competition level Experienced programming skill required |
High speed competition level Experienced programming skill required |
