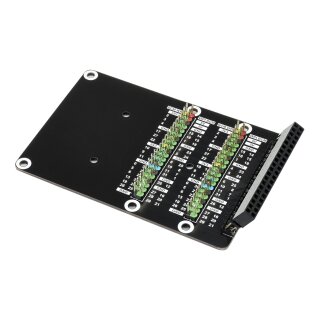

Waveshare 20219 PI400-GPIO-ADAPTER-C
Artno.: WS1-020219
Raspberry Pi 400 GPIO Header Adapter, Header Expansion, 2x 40PIN Header, Leaning Version

6.90 € incl. 19% VAT
5.80 € excl. VAT
10+ On stock

Shipping time: 1 - 3 business days

Description

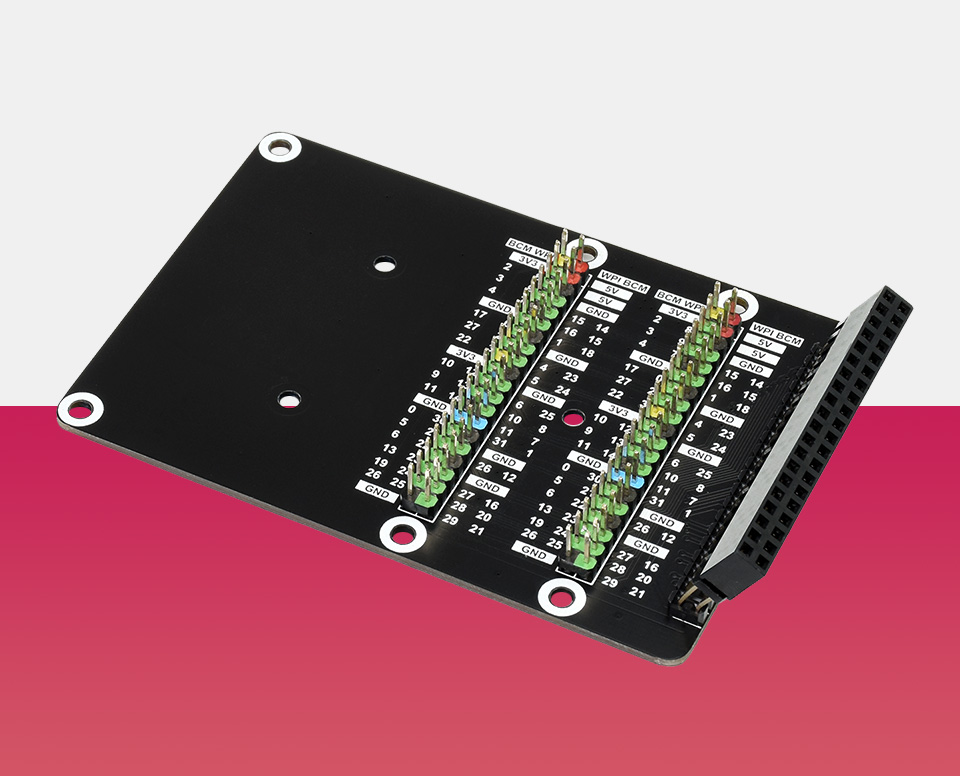

Raspberry Pi GPIO adapter

Designed for Raspberry Pi 400

color-coded header, easy expansion

special angled header, let the adapter stand at a comfort angle,make it more convenient to use with HATs like SPI/DPI display

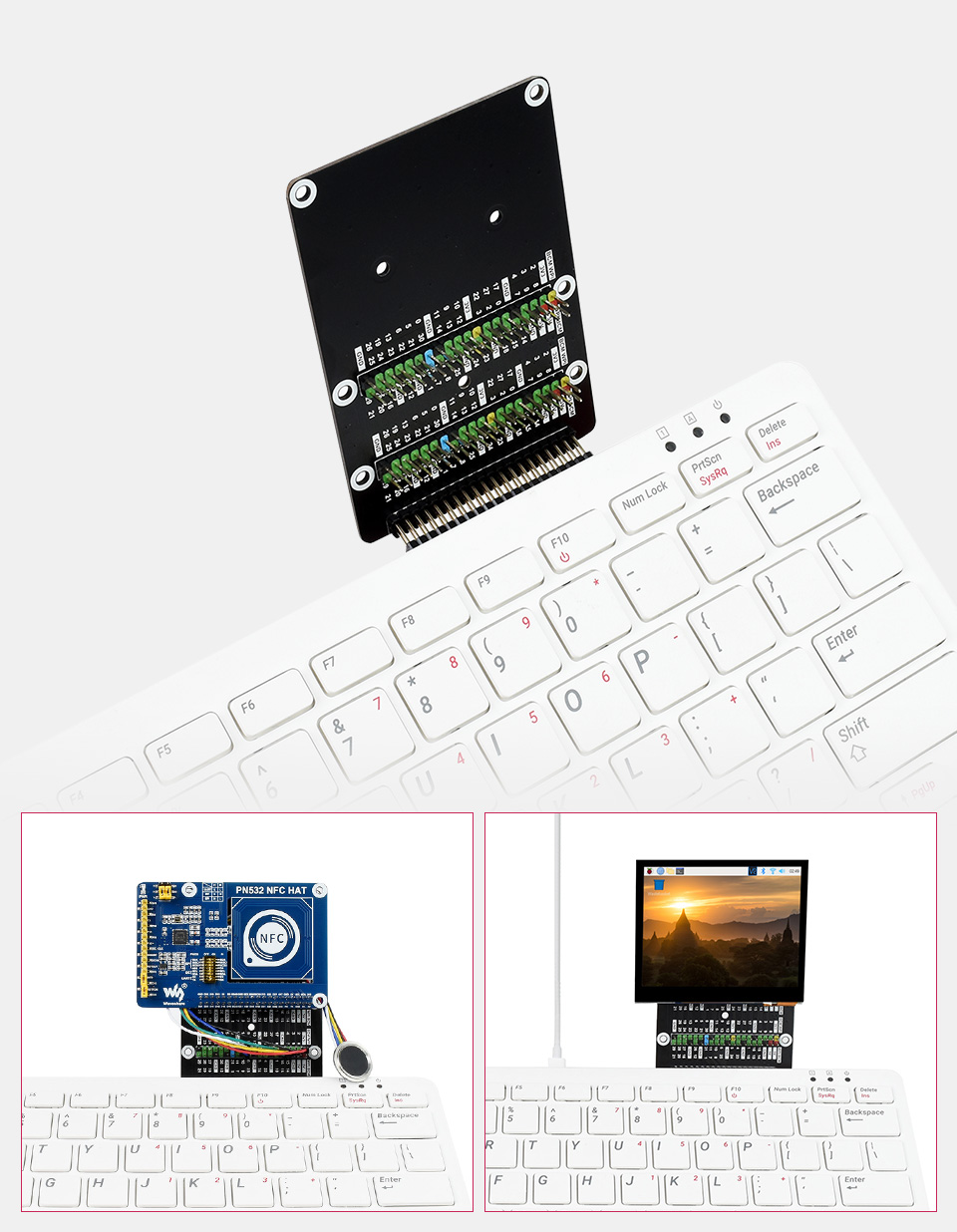

*image for reference only, expansion boards or displays are NOT included.

Recommended displays for this adapter

Recommended LCD / OLED

pixels display panel display port touch type features
1.3inch LCD HAT 240×240 IPS SPI - joystick, buttons
1.44inch LCD HAT 128×128 TFT SPI - joystick, buttons
1.3inch OLED HAT 128×64 OLED SPI/I2C - joystick, buttons
2.23inch OLED HAT 128×32 OLED SPI/I2C - -
2.8inch RPi LCD (A) 320×240 TFT SPI resistive -
3.2inch RPi LCD (C) 320×240 TFT high-speed SPI resistive -
3.5inch RPi LCD (B) 480×320 IPS SPI resistive -
3.5inch RPi LCD (C) 480×320 TFT high-speed SPI resistive -
4inch RPi LCD (C) 480×320 TFT high-speed SPI resistive -
2.8inch DPI LCD 480×640 IPS DPI capacitive fully laminated
3.5inch DPI LCD 640×480 IPS DPI capacitive -
4inch DPI LCD (B) 480×800 IPS DPI capacitive speaker
4inch DPI LCD (C) 720×720 IPS DPI capacitive fully laminated

Recommended e-Paper

pixels display colors greyscale full refresh (s) partial refresh
2.13inch e-Paper HAT 250×122 black, white 2 2
2.13inch e-Paper HAT (B) 212×104 red, black, white 2 15 -
2.13inch e-Paper HAT (C) 212×104 yellow, black, white 2 15 -
2.13inch Touch e-Paper HAT 250×122 black, white 2 2
2.7inch e-Paper HAT 264×176 black, white 4 6 -
2.7inch e-Paper HAT (B) 264×176 red, black, white 2 15 -
2.9inch Touch e-Paper HAT 296×128 black, white 2 2
3.7inch e-Paper HAT 480×280 black, white 4 3
4.01inch e-Paper HAT (F) 640×400 7 colors 2 15 -

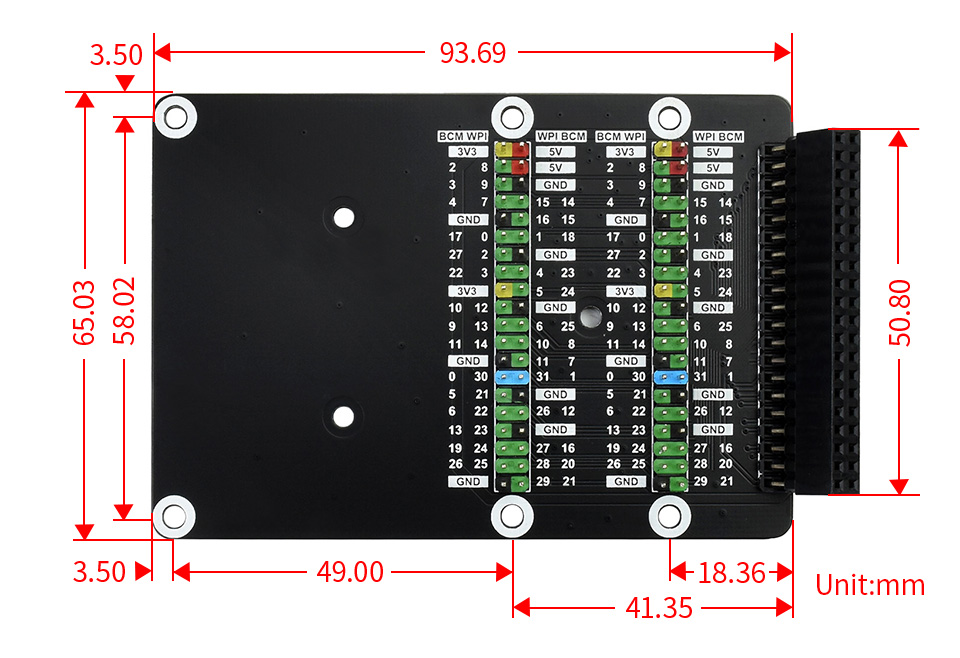

Outline Dimensions

Package Contents

  1. PI400-GPIO-ADAPTER-C x1
1

Shipping weight: 0.05 Kg
