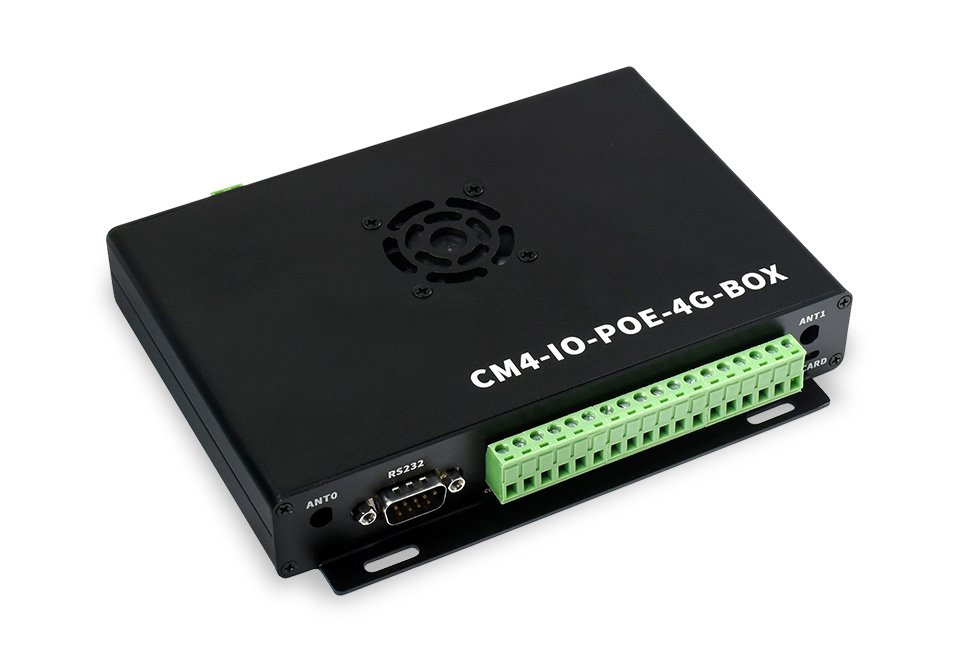

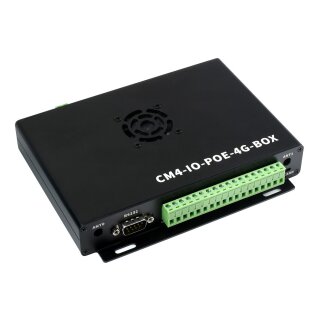

Waveshare CM4-IO-POE-4G-BOX

Artno.: WS1-020719-P

Waveshare CM4-IO-POE-4G-BOX

Industrial IoT Mini-Computer Based On Raspberry Pi Compute Module 4 (NOT Included), PoE, 5G/4G, Metal Case, With Cooling Fan

99.00 €ohne Netzteil103 €mit EU Netzteil155 €mit 4G-Modul und EU Netzteil

from 99.00 € incl. 19% VAT

83.19 € excl. VAT

100+ On stock

Please select a model.

Industrial IoT Mini-computer based on CM4

Designed for Raspberry Pi Compute Module 4

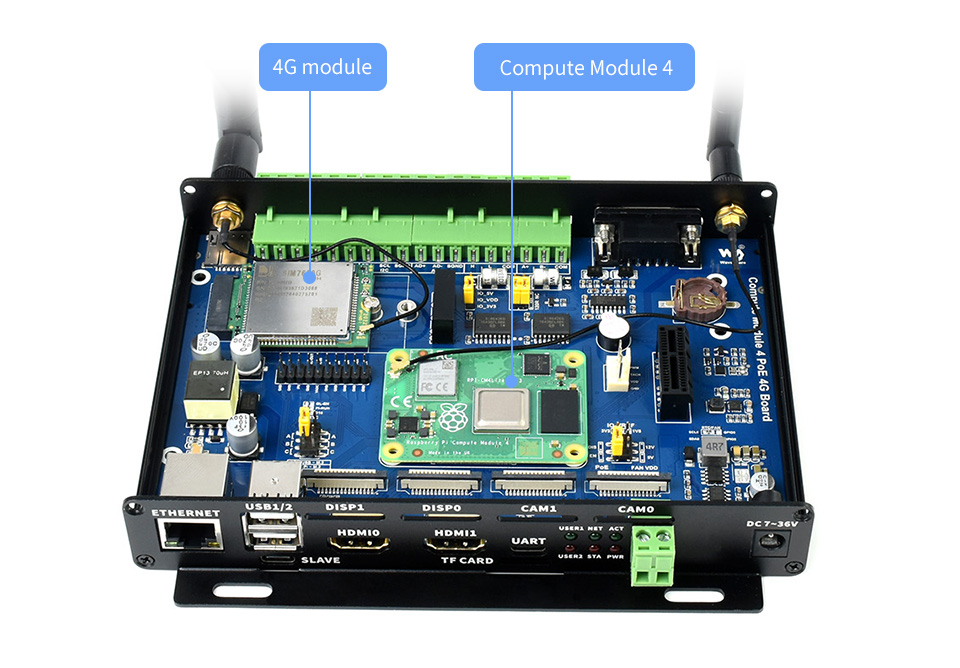

Waveshare CM4 Industrial IoT Board inside, fast and easy to build a mini-computer

make it easy to build your own Raspberry Pi CM4 mini PC

for reference only, CM4 is NOT included.4G module and antenna are optional.

CM4 socket	suitable for all variants of Compute Module 4
Networking	Gigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A)
	M.2 B KEY, supports 5G / 4G module
	SIM card slot, supports standard SIM card for 5G/4G/3G/2G communication
Connector	Isolated RS485, Isolated RS232, PCIe Gen 2 x1, I2C, ADC, GPIO
USB	Dual USB 2.0 Type A
Display	Dual MIPI DSI display ports (15pin 1.0mm FPC connector)
Camera	Dual MIPI CSI-2 camera ports (15pin 1.0mm FPC connector)
Video	Dual HDMI ports, supports 4K 30fps output
RTC	Real-time clock with battery socket and ability to wake Compute Module 4
Storage	MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
Fan header	allows speed adjustment and measurement, 5V / 12V input
Power input	7V~36V wide range
Dimensions	160 × 114mm

CM4 Base Board	Interface count and specifications
CM4 Base Board	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB?	DSI	HDMI	CSI	RTC	Fan Header	Power Input	Features
mini Base A		×1	√	M.2 M	2.0×4	×1	×2	×2		5V	5V	mini size
mini Base B		×1	√	M.2 M	2.0×4	×1	×2	×2	√	5V	5V	mini size
Dual Gigabit ETH		×2	√		3.0×3	×1	×2	×2	√	5/12V	7-36V
IoT Base	√	×1		Gen2×1	2.0×2	×2	×2	×2	√	5/12V	7-36V	5G/4G supportRS232RS485ADC
PoE Base (B)	√	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	5/12V	5V	RS232RS485
PoE Base	√	×1	√		3.0×4	×2	×2	×2	√	5/12V	7-36V
Raspberry Pi official	?	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	12V	12V
Note	? USB 3.0 is equivalent to USB 3.2 Gen1 ? There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

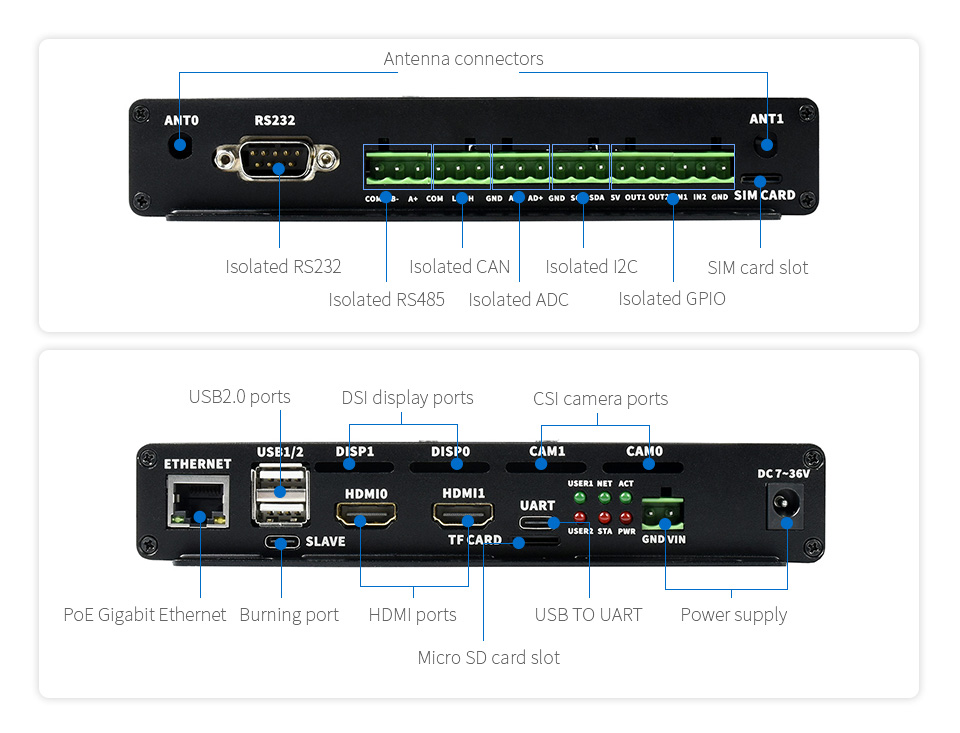

onboard connectors including M.2/CSI/DSI/HDMI/USB/ETH/PCIe/RS232/RS485

each cut-out is completely aligned with the connector

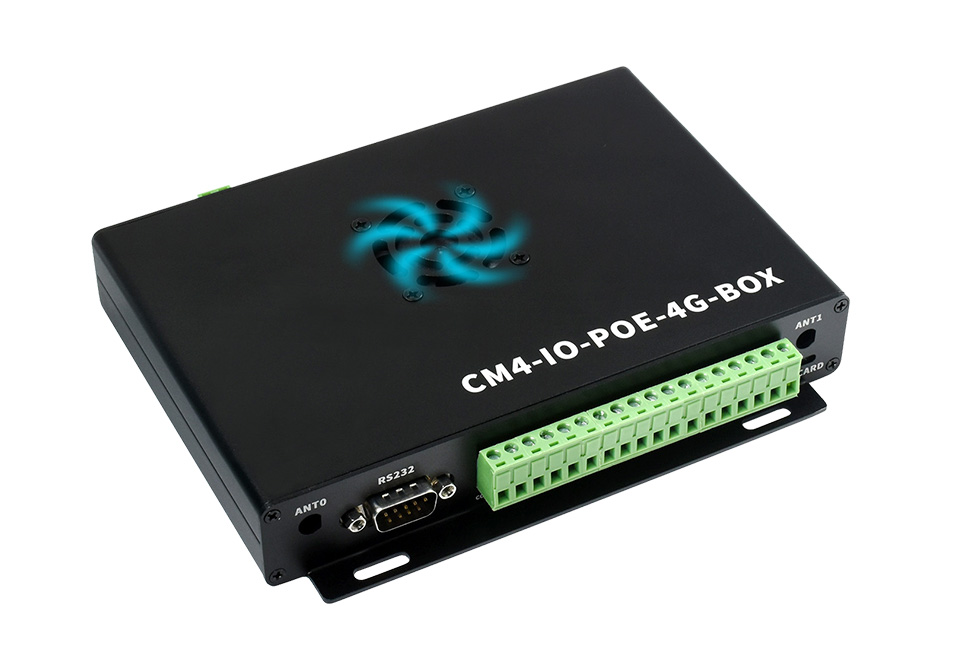

comes with cooling fan, combined with the airflow vent, better heat dissipation

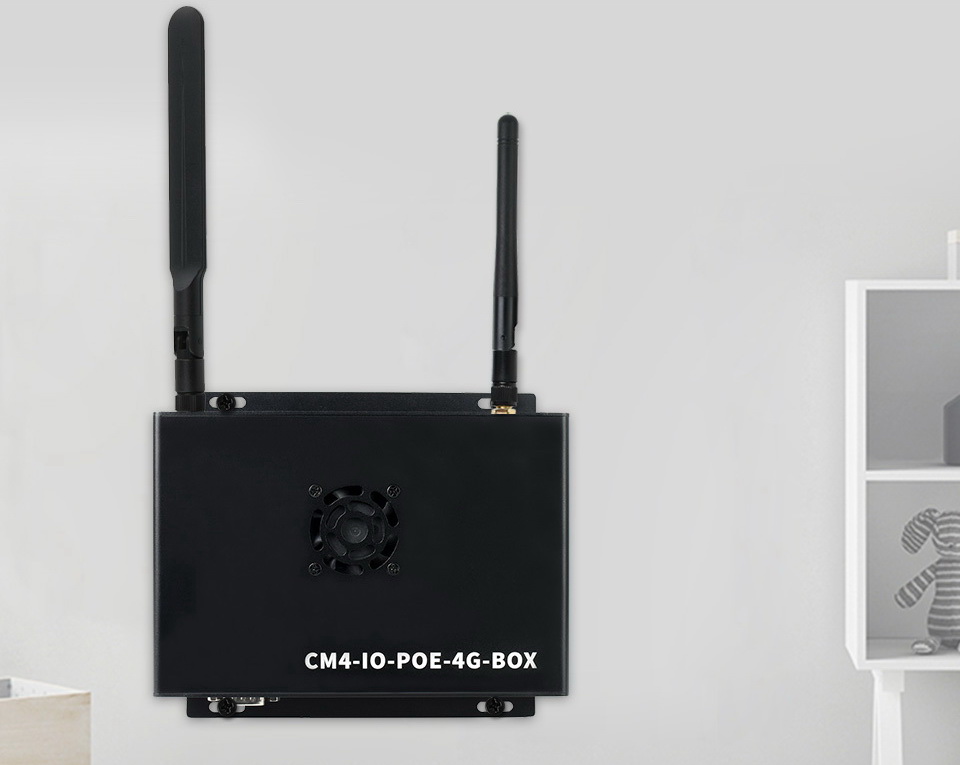

wall mount holes on two sides, handy for mounting

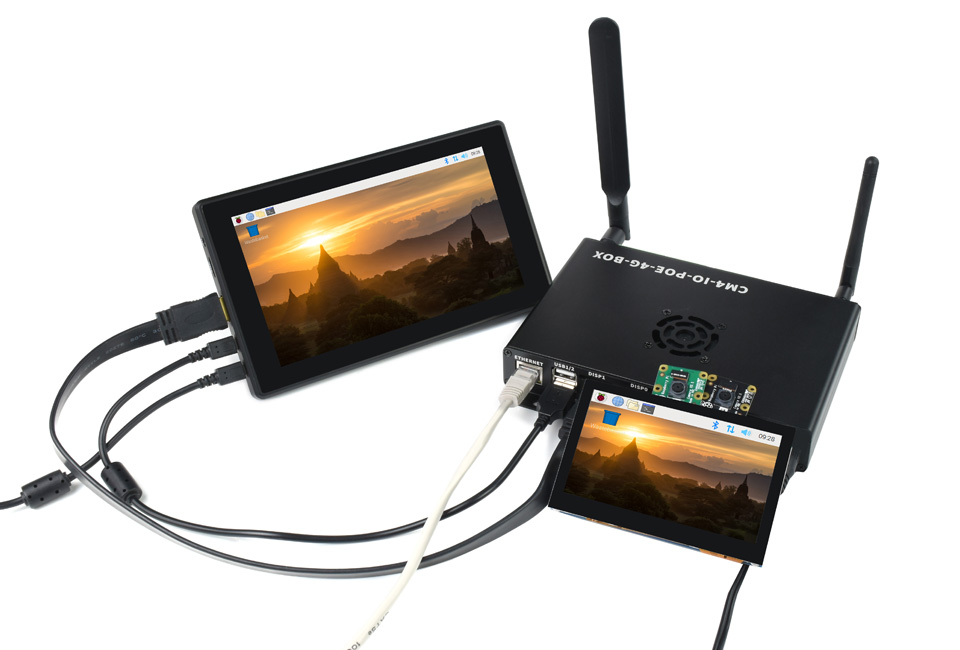

Binocular Vision, PoE Powered Raspberry Pi Projects, Or Other Industrial Context

for reference only, displays, cameras, and antennas are NOT included.

WIKI: Compute_Module_4_PoE_4G_Board

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

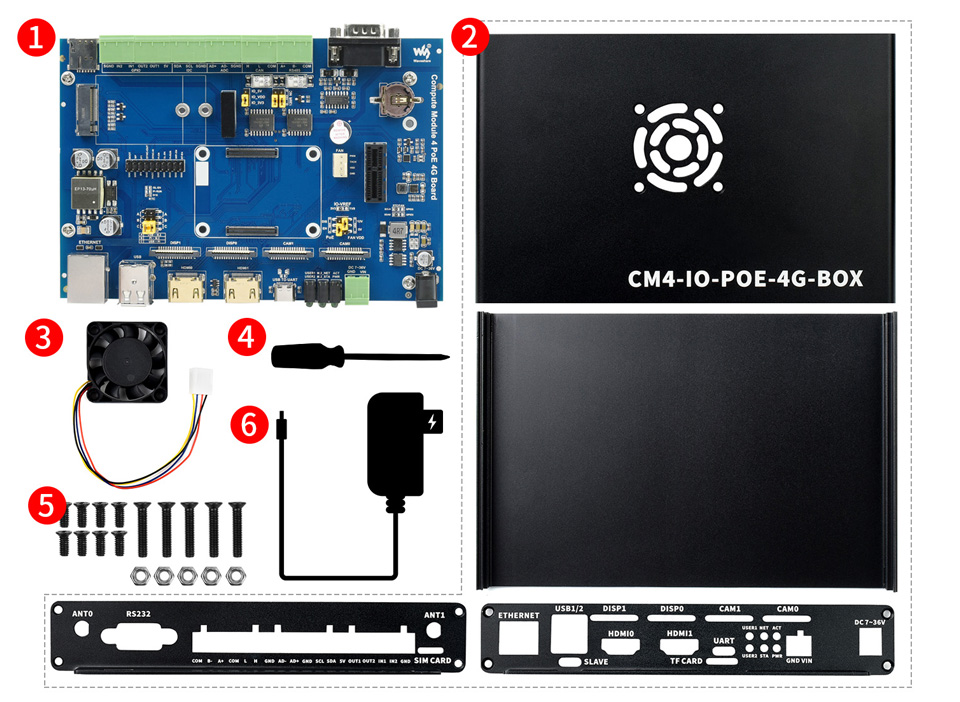

Compute Module 4 PoE 4G Board x1
Metal case (top and bottom) x1
Fan-4010-PWM-12V x1
Screwdriver x1
Screws pack x1
OPTIONS 12V 2A power adapter x1
OPTIONS 4G module SIM7600G-H-M.2 IPEX4 to SMA cable ~15cm Antenna 4G 8DB SMA ~17cm
