SIM8200EA-M2 |
SIM8202G-M2 |
| Frequency band |
| Sub-6G (SA) |
n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 (n79 is only available for SIM8202G-M2) |
| Sub-6G (NSA) |
n41, n77, n78, n79 (n79 is only available for SIM8202G-M2) |
| LTE-FDD |
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 |
| LTE-TDD |
B34, B38, B39, B40, B41, B42, B43, B48 |
| WCDMA |
B1, B2, B3, B4, B5, B8 |
| GNSS |
GPS, GLONASS, Beidou, Galileo, and QZSS |
| Data rate |
| Sub-6G |
2.4 Gbps (DL) / 500 Mbps (UL) |
| LTE |
1 Gbps (DL) / 200 Mbps (UL) |
| HSPA |
42 Mbps (DL) / 5.76 Mbps (UL) |
| Software functions |
| Operating systems |
Windows/Linux/Android |
| Communication protocols |
TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0 |

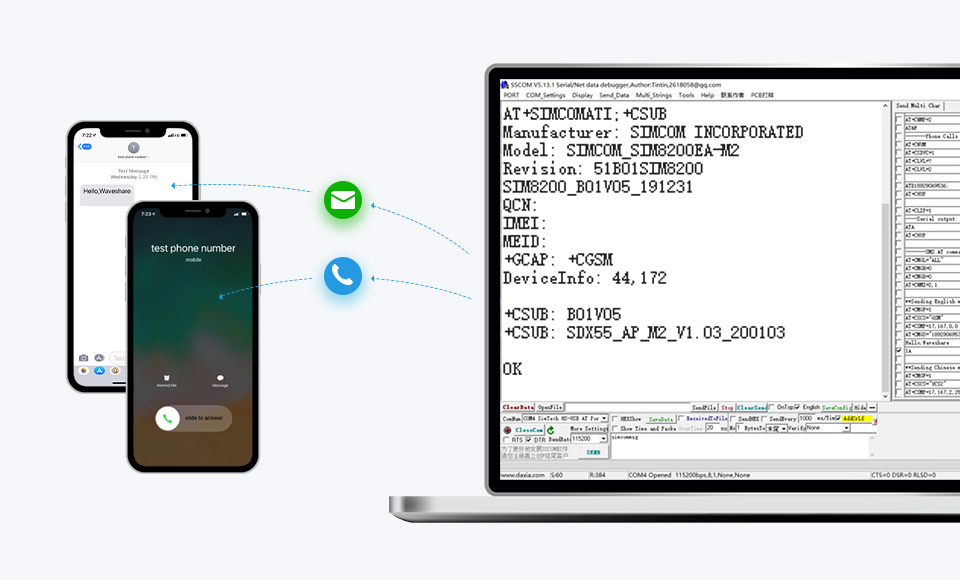

| SMS |
Supports MT, MO, CB, Text, PDU |
| Firmware upgrade |
Supports firmware upgrade via USB port |
| Hardware info |
| SIM card |
1.8V/3.0V |
| Power supply |
5V 3A |
| Antenna connector |
6x IPEX-4 connector |
4x IPEX-4 connector |
| Module dimensions |
52.0×30.0×2.3mm |
42.0×30.0×2.3mm |
| Applications |
| Applicable regions |
Regions with 5G Sub-6G signal coverage including China, US, Japan, South Korea, Europe, the Middle East, Latin America, etc. |
| Application examples |

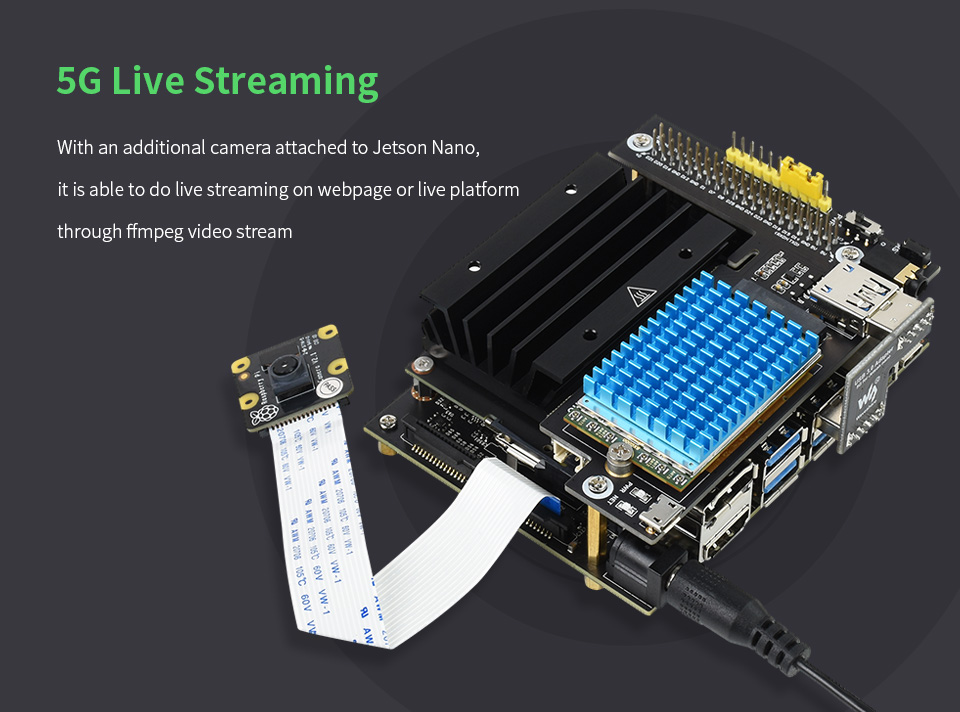

CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security |
