Waveshare UPS HAT
Artno.: WS1-018160-P
UPS HAT for Raspberry Pi, 5V Uninterruptible Power Supply, Multi Battery Protection Circuits
Variante
from 19.90 € incl. 19% VAT
16.72 € excl. VAT
On stock

Please select a model.

Description

Uninterruptible Power Supply for Raspberry Pi

Power your Pi seamlessly from power connection OR the backup batteries

Charge and Power Output at the Same Time

Features at a glance

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
  • Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
  • Onboard 5V regulator, up to 2.5A continuous output current
  • 5V USB output, convenient for powering other boards
  • Batteries warning indicators, easy to check if the battery is connected correctly
  • Comes with development resources and manual

Specifications

Output voltage 5V Charger 8.4V 2A
Control bus I2C Dimensions 56 × 85mm
Battery support 18650 Li battery (NOT included) Mounting hole size 3.0mm

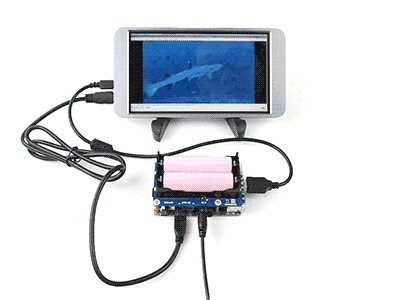

Uninterruptible Power

It is able to charge the batteries and provide power output at the same time from external power supplyAutomatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

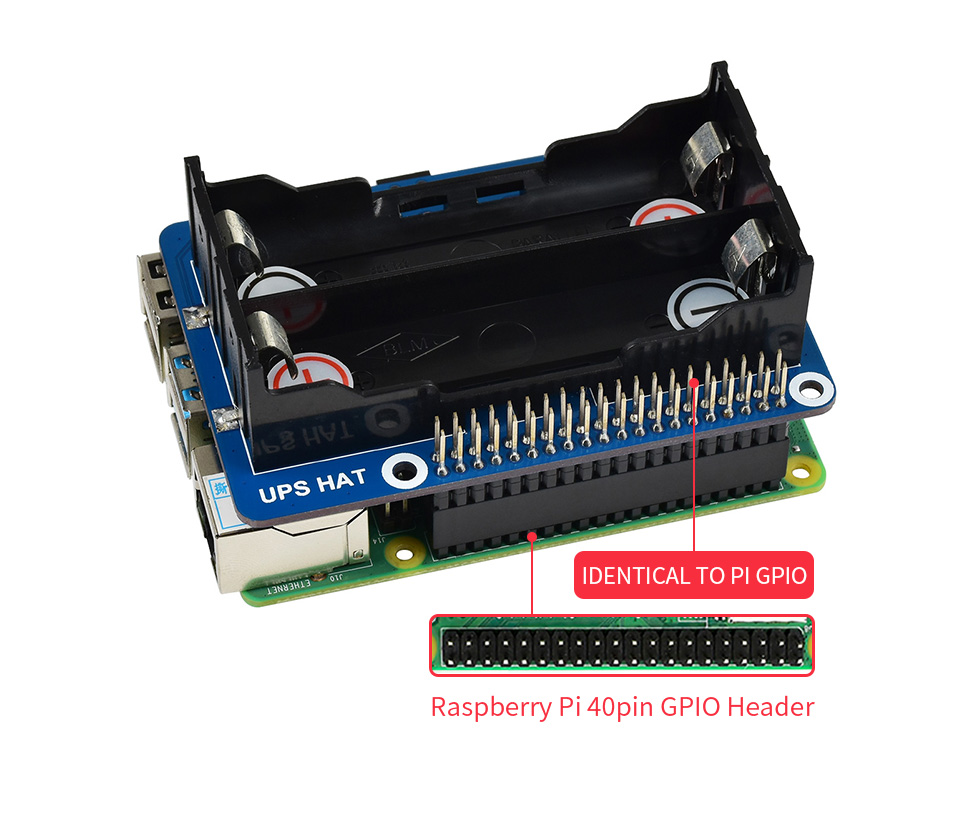

Designed for Raspberry Pi series

Standard Raspberry Pi 40PIN GPIO header, customized for Raspberry Pi series boards

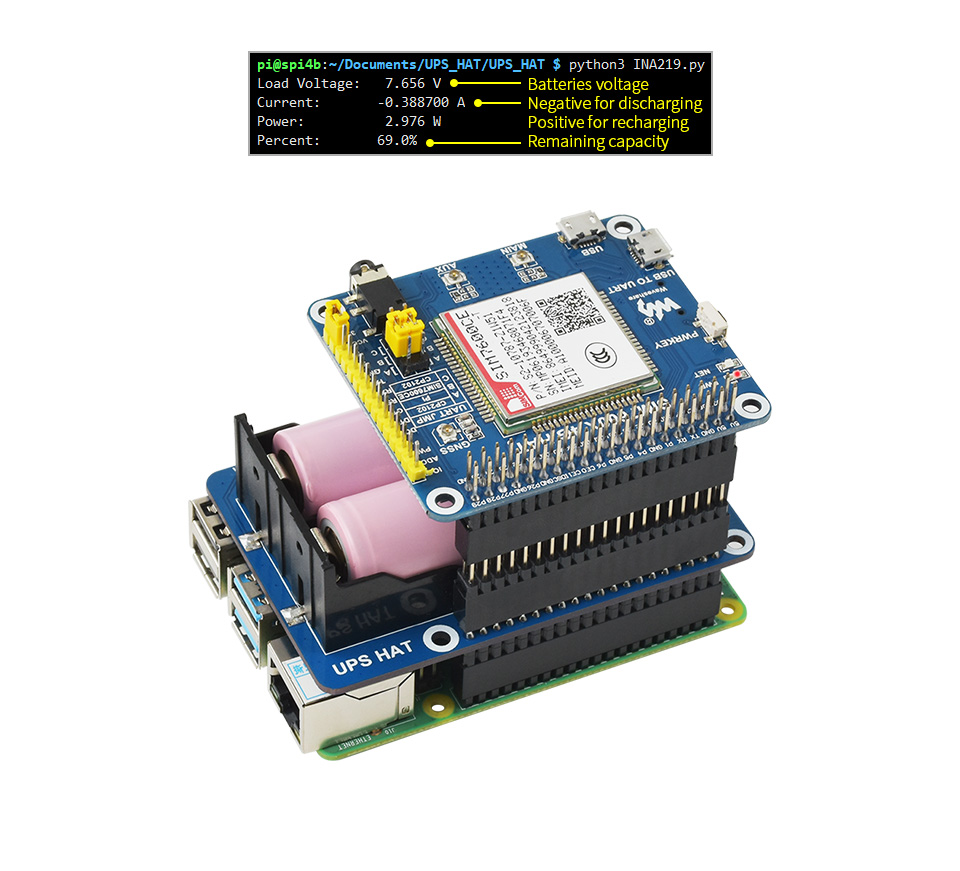

Real time monitoring

monitoring the batteries voltage, current, power, and remaining capacity

When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss

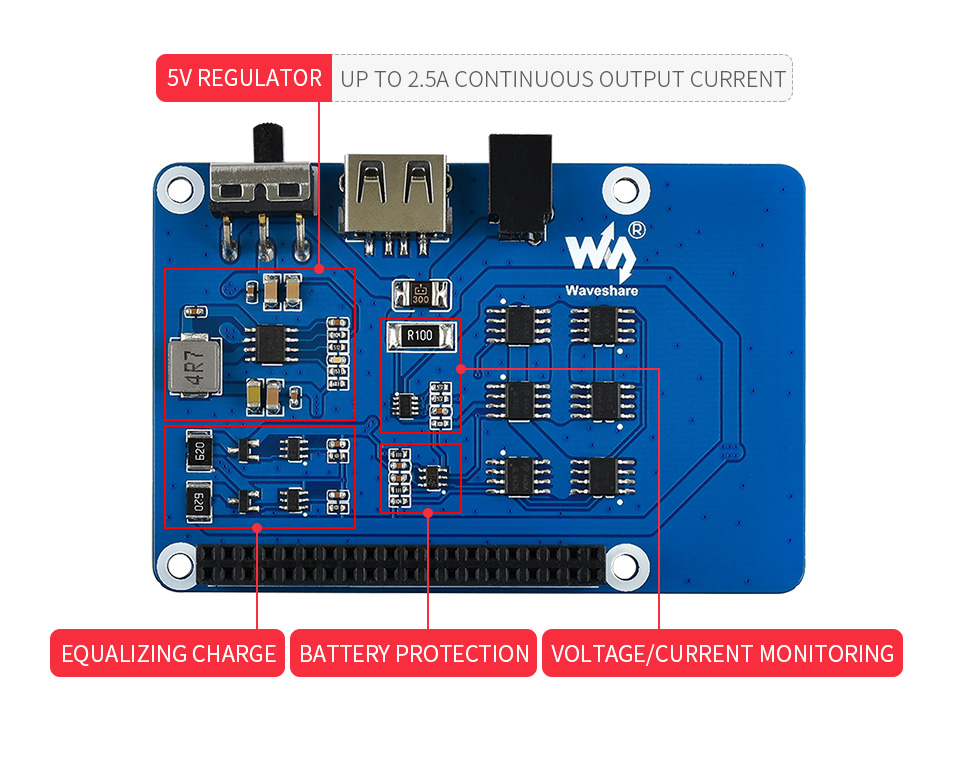

Safe and stable circuit design

Protection circuits for over charge/discharge, over current, short circuit, and reversealong with the equalizing charge feature, more safe and stable

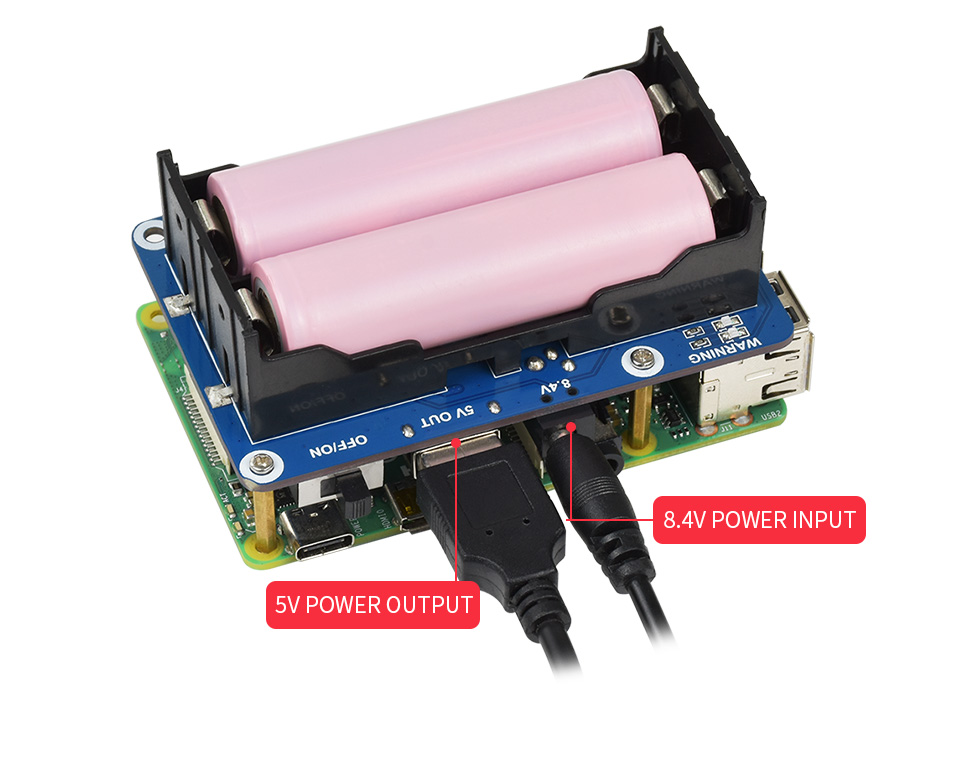

5V USB Output as well

convenient for powering other boards

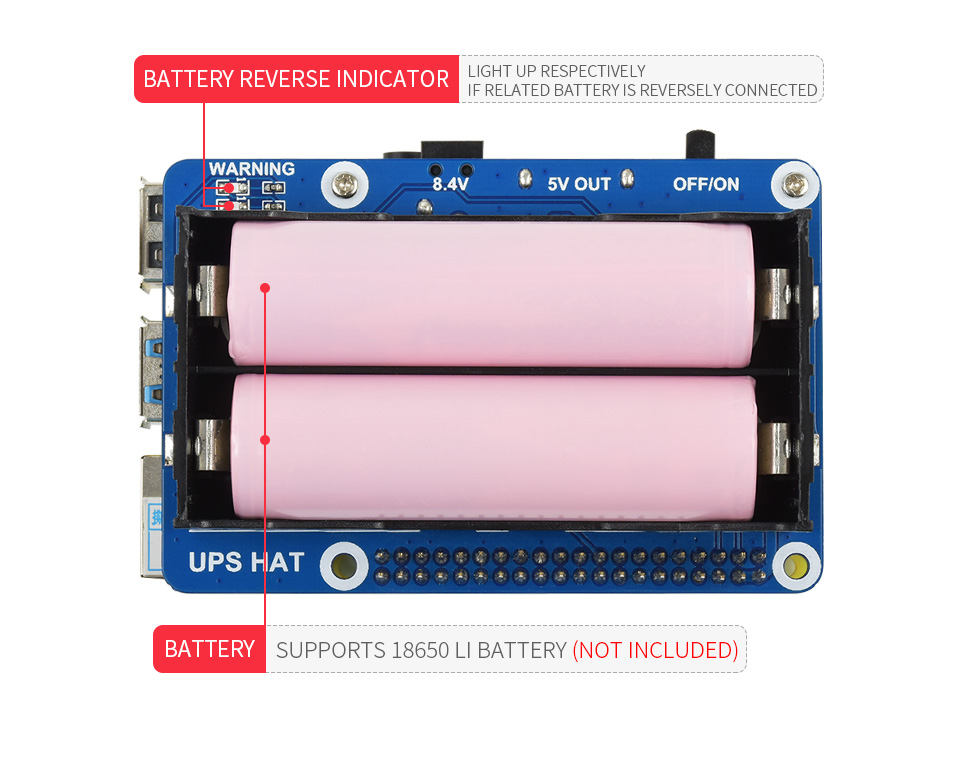

Battery warning indicators

easy to check if the battery is connected correctly

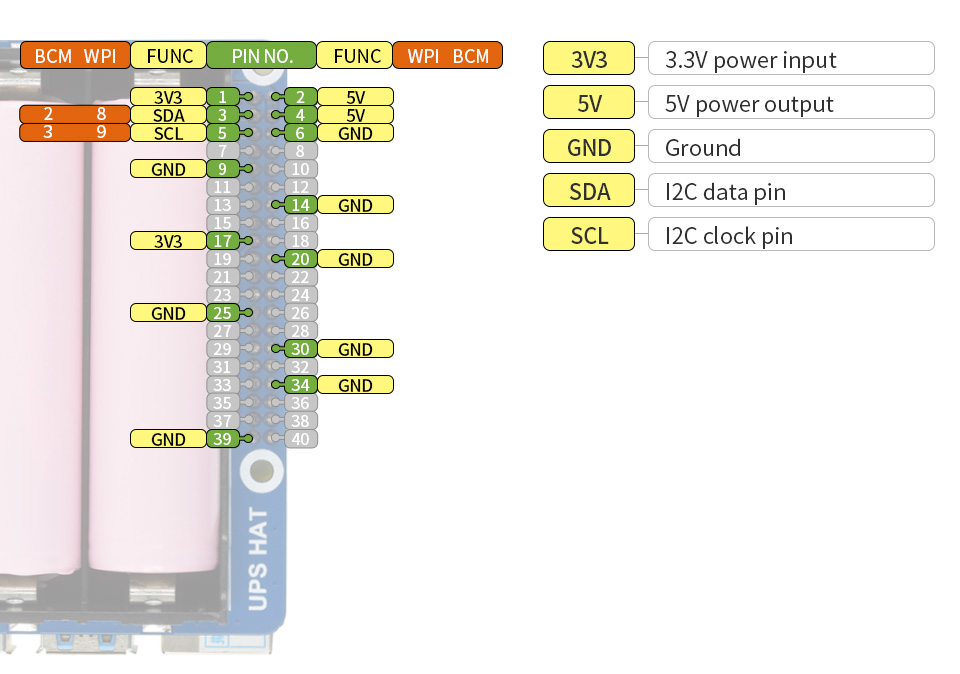

Pinout definition

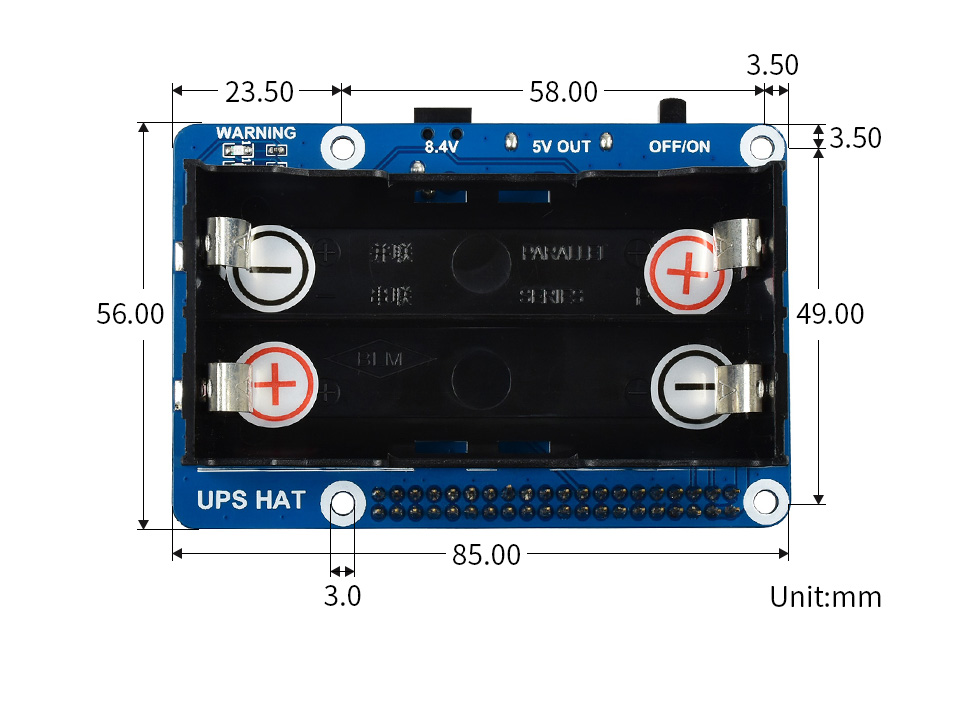

Outline dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Package Contents

  • The 18650 batteries are NOT included
  • Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more
  1. UPS HAT x1
  2. OPTIONS 8.4V battery charger x1
  3. 2×20PIN female header x1
  4. RPi screws pack (2pcs) x1
1
2
3
4
