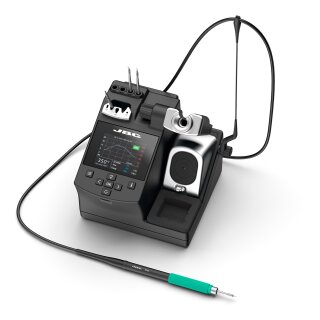

The JBC CDE-2BQA station is ideal for general soldering applications. It delivers outstanding soldering performance thanks to JBC's Intelligent Heat Management System and the Sleep & Hibernation modes, which extend soldering tip life by up to five times. The comprehensive Tip Cleaning System, featuring an anti-splash membrane and integrated wiper, ensures a clean working environment. The station includes a soldering iron stand and JBC's exclusive quick tip changer for fast and safe tip replacement. It can be connected to the JBC fume extraction system via the RJ12 connector and provides interfaces for data transfer, software updates, and traceability. Equipped with the T245 general-purpose handle, it is compatible with the full range of JBC C245 soldering tips.
Model Overview
|
CDE-2BQA |
| Nominal power |
160W |
| Peak power |
130W - 23.5V |
| Selectable temperature |
90 up to 450 °C / 190 up to 840 °F |
| Idle temp. stability (still air) |
±1.5°C / ±3°F |
| Temperature accuracy |
±3% |
| Temp. adjustment |
±50°C / ±90°F (Through station menu settings) |
| Tip-to-ground resistance |
<2 ohms |
| Tip-to-ground voltage |
<2 mV RMS |
| Earthing fuse |
F 1.25A |
| USB-A |
Firmware update, Graphics and profilesA |
| USB-B |
PC communications |
| FAE / Robot connector |
Remote control or FAE Fume Extractor connection |
| Control Unit Dimensions |
170 x 176 x 145 mm / 2.94 kg
(6.69 x 6.93 x 5.71 in / 6.48 lb) |
Package Contents
- Instruction Manual
- CDE Soldering Station
- T245 General Purpose Handle (Cartridges are not included)
